remote user access to second vpn site to site

  • October 7, 2023
  • 5 replies
  • 2494 views

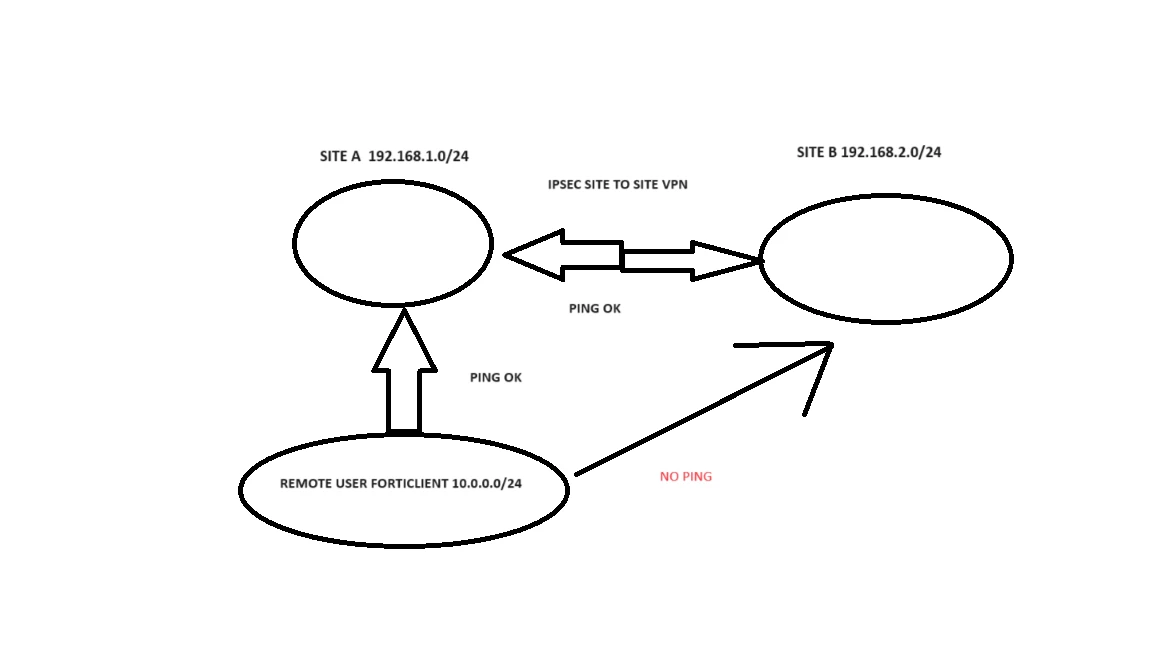

I have two routers connected using ipsec site to site.

The remote user connects to router A  (192.168.1.0/24) and has access to the network. The remote user does not have access to network B ( 192.168.2.0/24) How to make it have access to network B

Best answer by vbandha

Hi @jacm ,



If you have phase 2 selector configured on IP Sec tunnel, you will have to add the SSL VPN IP Subnet in the phase 2 selector on both sides of the tunnel.



You also need to create 2 firewall policies SSL VPN--> IP Sec and IP Sec to SSL VPN on Site A

In the firewall policies on Site B, you have to add the SSL VPN IP Subnet in the IP Sec --> internal firewall policy



You have to add a static route on Site B with destination as SSL VPN Subnet and exit interface as IP Sec tunnel.



Hope that helps.



Regards,

Varun





5 replies

esalija
Staff
esalija
Staff
October 7, 2023

Hi,

Please run the below commands to check where the traffic is going.



Putty 1

--------

# diagnose sniffer packet any "host x.x.x.x and host y.y.y.y" 4 0 l



***  x.x.x.x  is the Source IP address and y.y.y.y is the destination IP ***



ctrl+C to stop



Putty 2

-------

# diag debug reset

# diagnose debug flow filter addr x.x.x.x -->Source IP address

# diagnose debug flow filter addr y.y.y.y -->Destination IP address

# diag debug flow filter proto 1

# diag debug console timestamp enable

# diag debug flow trace start 9999

# diag debug enable



***  x.x.x.x  is the Source IP address and y.y.y.y is the destination IP ***



*** Run for 5-10 minutes ***



# diagnose debug disable

# diag debug reset



Putty 3

----------

# get router info routing-table all

# get router info routing-table details y.y.y.y



***  y.y.y.y is the destination IP ***

Best regards,

Erlin

    xshkurti
    Staff
    xshkurti
    Staff
    October 7, 2023

    @jacm

    Check this link for right configuration:
    SSL VPN to IPsec VPN | FortiGate / FortiOS 7.4.1 | Fortinet Document Library
    Compare your config with this guide and do proper changes.



    If you found this as a solution, please like and accept it to make it easily accessible for others.

    Regards!

    @xshkurti

    hbac
    Staff
    hbac
    Staff
    October 7, 2023

    Hi @jacm,



    Please refer to this article: https://community.fortinet.com/t5/FortiGate/Technical-Tip-Forward-traffic-originating-from-SSLVPN-into-IPsec/ta-p/194159



    Regards,

    vbandha
    Staff
    vbandhaAnswer
    Staff
    October 8, 2023

    Hi @jacm ,



    If you have phase 2 selector configured on IP Sec tunnel, you will have to add the SSL VPN IP Subnet in the phase 2 selector on both sides of the tunnel.



    You also need to create 2 firewall policies SSL VPN--> IP Sec and IP Sec to SSL VPN on Site A

    In the firewall policies on Site B, you have to add the SSL VPN IP Subnet in the IP Sec --> internal firewall policy



    You have to add a static route on Site B with destination as SSL VPN Subnet and exit interface as IP Sec tunnel.



    Hope that helps.



    Regards,

    Varun





    jacm
    jacmAuthor
    Visitor III
    October 9, 2023

    Can you tell me what static routing should look like?

    jacm
    jacmAuthor
    Visitor III
    October 12, 2023

    I managed, thank you for your answers
