Regarding the connection to Fortinet from FORTIAP-320B

  • May 28, 2021
  • 2 replies
  • 5692 views

Hello everyone !

I would like to inquire about the FORTIAP-320B model.  This model is only connected with the computer and I don't use any internet connection  and I'm only looking to have access to the medel.



After configuring my IP address, enable HTTP, and configure my password, I have access to the login page, after seeing my name and password I have directly the result that there while one second  in I go directly to the login page. I send you the photos step by step.



I configure this terminal from the KiTTY software, with a type of serial connection whose commands are on this link : https://docs.fortinet.com/document/fortiap/6.2.0/fortiwifi-and-fortiap-configuration-guide/65088/fortiap-cli-configuration-and-diagnostics-commands





would anyone have a solution and answer this problem? thank you all in advance !

    Best answer by jorge_americo

    show photos and output of "cfg -s" please

    2 replies

    BENCH93
    BENCH93Author
    New Member
    May 28, 2021

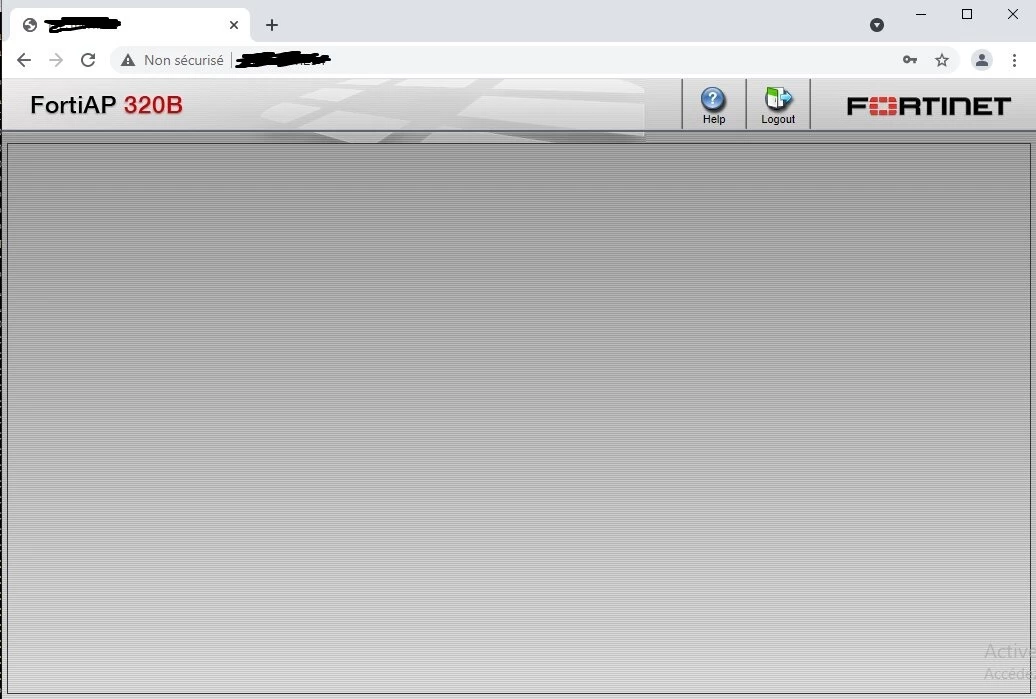

    Like this :

    jorge_americo
    jorge_americoAnswer
    New Member
    May 28, 2021

    show photos and output of "cfg -s" please

    BENCH93
    BENCH93Author
    New Member
    May 31, 2021

    Hello Jorge, I sent you the copy of cfg -s :

    FP320B3X13003788 # cfg -s BAUD_RATE:=9600 FIRMWARE_UPGRADE:=0 LOGIN_PASSWD_ENC:=MjcyYjNmM2QyNw-- ADMIN_TIMEOUT:=5 ADDR_MODE:=STATIC AP_IPADDR:=192.168.1.254 AP_NETMASK:=255.255.255.0 IPGW:=192.168.1.1 AP_MODE:=0 DNS_SERVER:=208.91.112.53 STP_MODE:=0 AP_MGMT_VLAN_ID:=0 ALLOW_TELNET:=2 ALLOW_HTTP:=1 DDNS_ENABLE:=0 AC_DISCOVERY_TYPE:=0 AC_IPADDR_1:=192.168.1.1 AC_IPADDR_2:= AC_IPADDR_3:= AC_HOSTNAME_1:=_capwap-control._udp.example.com AC_HOSTNAME_2:= AC_HOSTNAME_3:= AC_DISCOVERY_MC_ADDR:=224.0.1.140 AC_DISCOVERY_DHCP_OPTION_CODE:=138 AC_DISCOVERY_FCLD_APCTRL:= AC_DISCOVERY_FCLD_ID:= AC_DISCOVERY_FCLD_PASSWD_ENC:= AC_CTL_PORT:=5246 AC_DATA_CHAN_SEC:=2 MESH_AP_TYPE:=0 MESH_MAX_HOPS:=4 MESH_SCORE_HOP_WEIGHT:=50 MESH_SCORE_CHAN_WEIGHT:=1 MESH_SCORE_RATE_WEIGHT:=1 MESH_SCORE_BAND_WEIGHT:=100 MESH_SCORE_RSSI_WEIGHT:=100 LED_STATE:=2 process '/sbin/8 #



    jorge_americo
    jorge_americo
    New Member
    May 31, 2021

    As I understand you log on the page and it does not carry anything correct? if so, have you tried another browser? and one more question. it is being managed by fortigate, what do you need to check on the AP page?
