Redirect subdomain to multi local servers

Forum|Forum|3 years ago
August 25, 2022
4 replies
4607 views

Dear Team ...

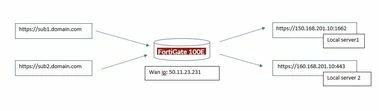

I have 2 subdomains , 2 local servers , 1 wan ip and 1 Fortigate 100E.

I need redirect sub1.domain.com to local server 1 when visited and sub2.domain.com to server 2.

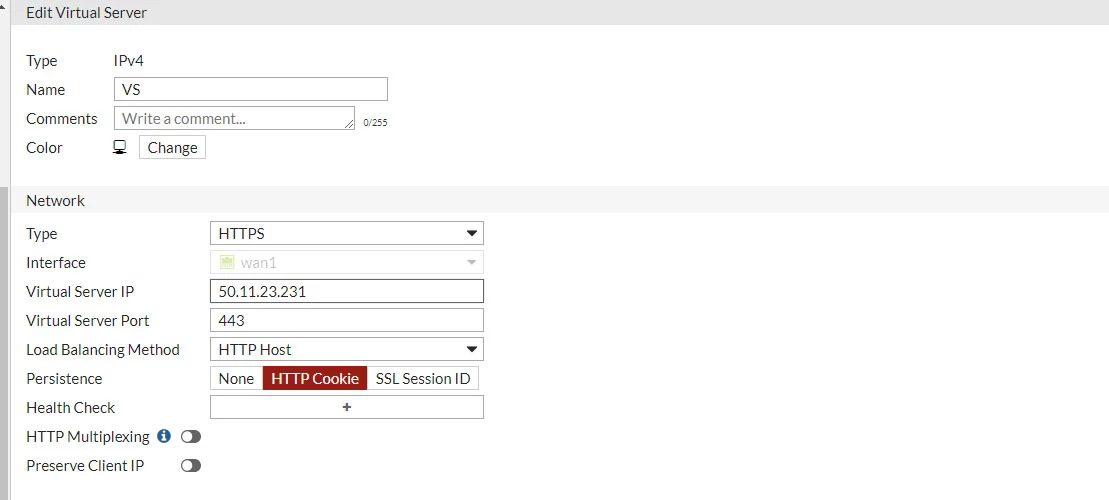

I try virtual servers option but not work although i had create configurations step by step may be the problem with https redirect.

any ideas please , thank you all.

FortiGate

vdralio

Staff

Dear @Anas_Abu_Alrob0599 ,

Please check the article below:

https://docs.fortinet.com/document/fortigate/6.0.0/handbook/824987/http-host-based-load-balancing

Best Regards,

Vasil Dralio

Anas_Abu_Alrob0599Author

New Member

thank you for replay.

I have installed the main domain SSL certificate on FG and select it as Certificate option in dropdown menu , when retry testing redirect me from sub1.domain.com to server 1 , sub2.domain.com to server 2 not working , I had checking HTTP HOST url and it's correct.

ede_pfau

SuperUser

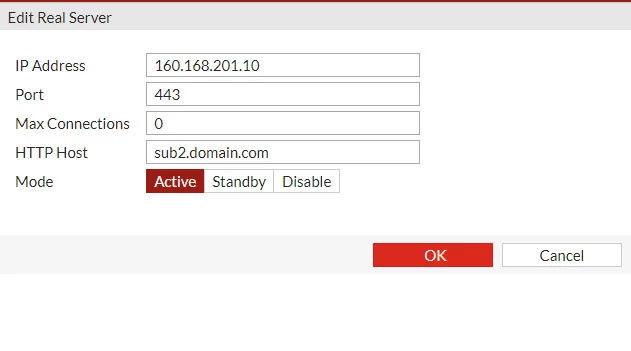

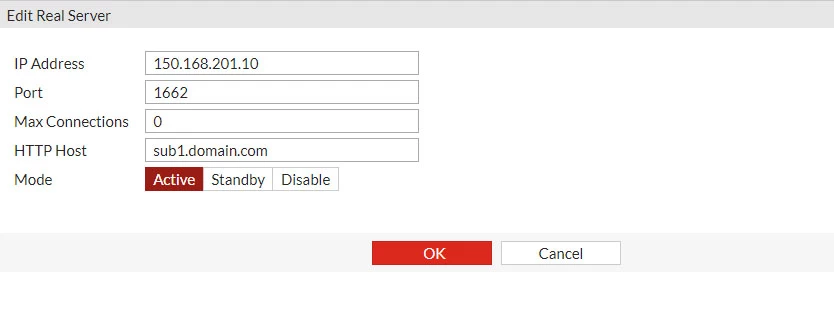

I haven't tried this setup yet, but I would use the same port for all servers, that is, virtual server (443), realserver1 (now: 1662) and realserver2 (443).

Assuming you have 3 policies in place which allow the traffic from WAN to realserver(s).

Can you sniff the traffic, like in

diagnose sniffer packet wan1 'port 443' 4 # for virtual server

diagnose sniffer packet any 'host 160.168.201.20 and port 443' 4

and post the results here?
