redirect dns traffic from inside subnet to external dns

Question

I want to redirect DNS traffic from subnet (inside 10.200.180.0/24) to DNS (outside 184.72.238.58) If a client on the 10.200.180.0 network changes their DNS on their machine to any address like 8.8.8.8 I want that DNS packet to be redirected to 184.72.238.58

I want to redirect DNS traffic from subnet (inside 10.200.40.0/24) to DNS (outside 184.222.222.58) If a client on the 10.200.40.0 network changes their DNS on their machine to any address like 8.8.8.8 I want that DNS packet to be redirected to 184.222.222.58

LAST

If the machine is on the 10.200.10.0/24 subnet I want that DNS to go where ever that clients DNS is set. I don't care if it is 8.8.8.8 4.4.4.4 X.X.X.X just let it go.

This works on our ASA but I am new to Fortigate and have trouble finding a solution. If you can show an example that would be extremely helpful.

Thanks

Yurisk · Answer

I haven't tested it, but this one should work:

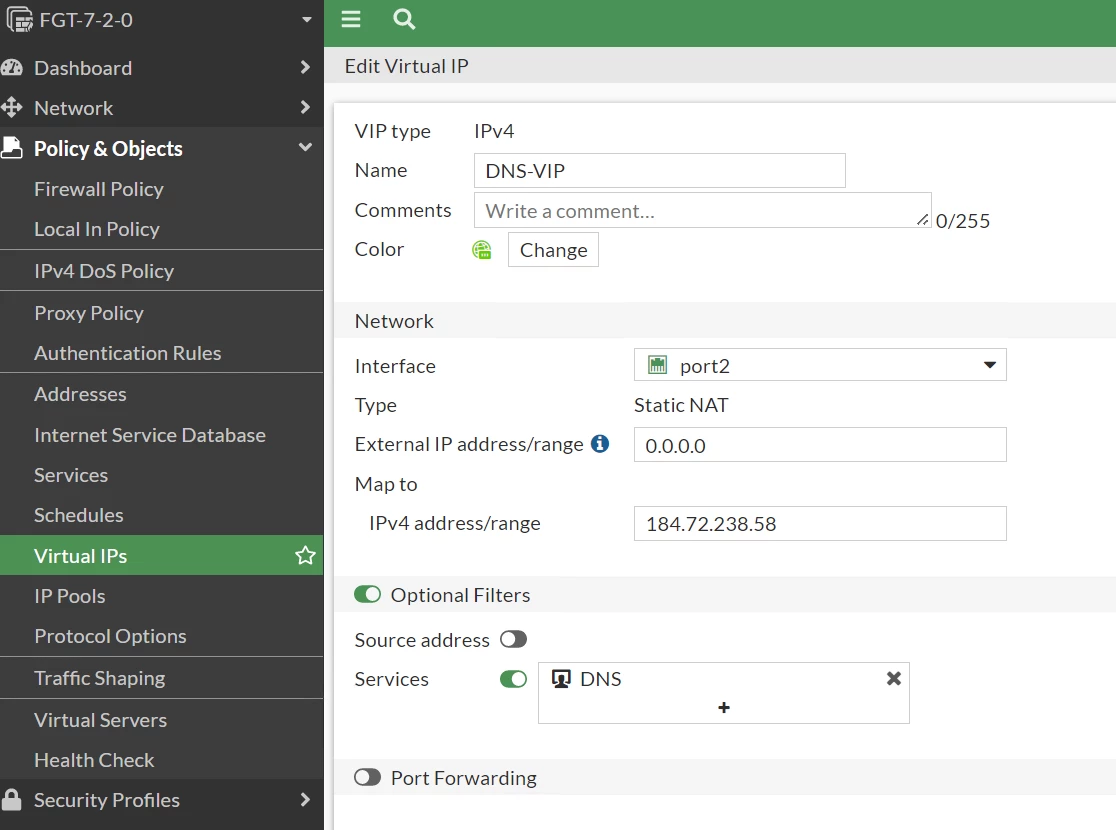

Create VIP with external address set to 0.0.0.0 with filter for DNS service

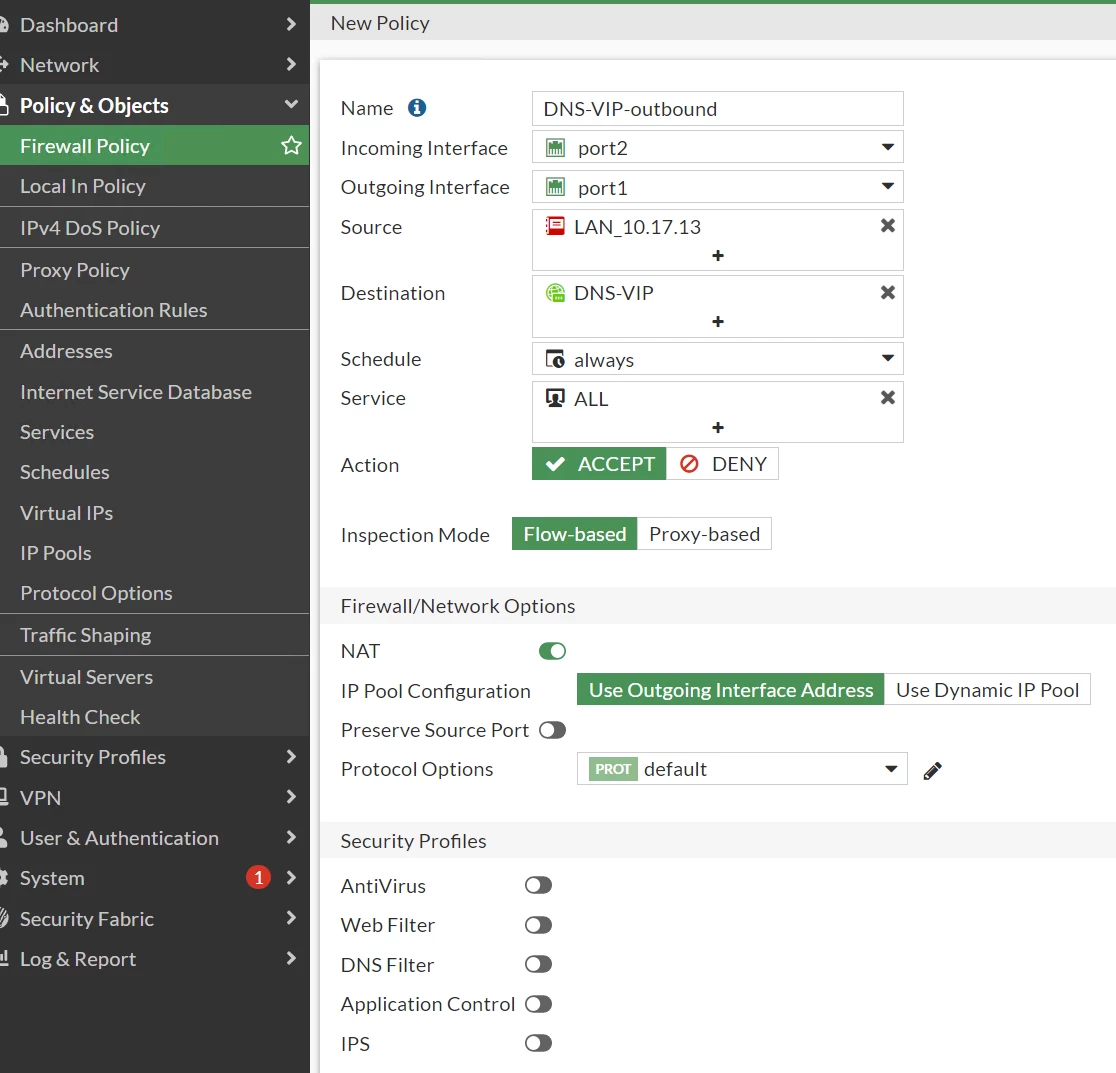

Use it for LAN -> WAN direction security rule.

Here port2 is LAN, port1 is WAN, LAN_10.17. is LAN address. Update us how it goes.

VIP for DNS service
