Question regarding Firewall Active-Active Layer 2 HA design

Forum|Forum|1 year ago
December 9, 2024
3 replies
2021 views

Hello all,

I have a question regarding a design like this.

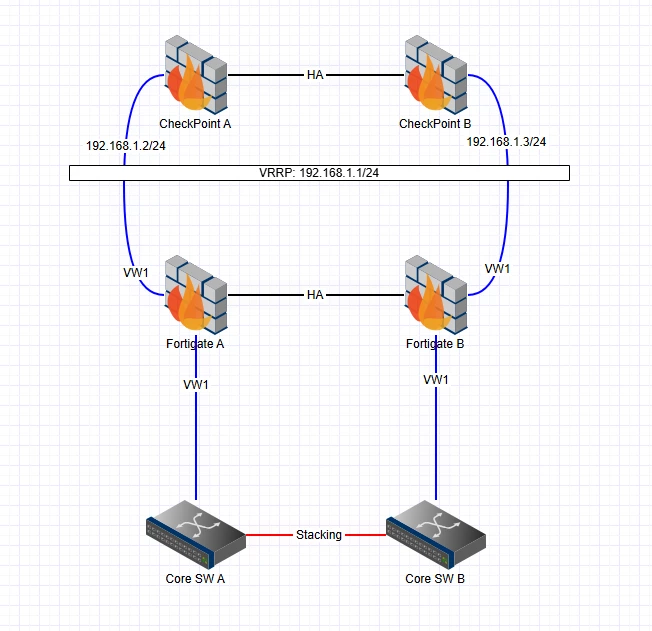

Suppose CheckPoint A is the Master unit for its cluster, while Forgate A and B are in Active-Active HA.

Fortigate A or B comes with one virtual wire and the VW1 is connected between the Checkpoint and Core switch.

No switch is between Fortigate and Checkpoint.

I wonder if Fortigate B receives traffic from a user, can the user stillbe able to use CheckPoint A to access to the internet?

FortiGate

sjoshi

Staff

Hi,

Is there any connection between FGTB and checkpoint A or FGTB is only connected to checkpoint B?

Also in checkpoint is it working as Active-Passive mode?

Thanks, Salon

Potato168Author

Explorer

No connection between FGTB and checkpoint A . Only A to A and B to .

Checkpoint is it working as Active-Active - Clueter mode.

AEK

SuperUser

Hi Potato

I don't think it will work like that, because the FG Master may not see the CheckPoint Master.

Even in AA-HA, FG master is the one who receives the incoming traffic, so you need a switch between the two firewall clusters.

AEK

jakbork

Visitor III

I will also try your advice. Thank you.

sjoshi

Staff

This article describes an example of a simple TCP 3-way-handshake in HA Active-Active cluster where packet distribution between Master and Slave FortiGate occurs.
Refer:-
https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-HA-A-A-cluster-3-way-TCP-handshake/ta-p/197467

Thanks, Salon

Potato168Author

Explorer

So, what if got drop on Step 3 ?

3) SYN is forwarded from internal interface to External Interface to the external switch connected to the Server

Will the Master FG1 try to resend SYN forward to the Server?
