Problem in connecting HP Aruba switch to FortiSwirch.
Hello everyone,
I am having an issue for connecting HP Aruba switch to FortiSwirch, traffic is not passing from Servers to firewall (unbale to ping subnets' gateways "Firewall IP) and vice versa, I think I am missing something. I have just started working with FortiNet devices, I would appreciate and remain thankful if anyone can help me in this or guide me in a right direction :)

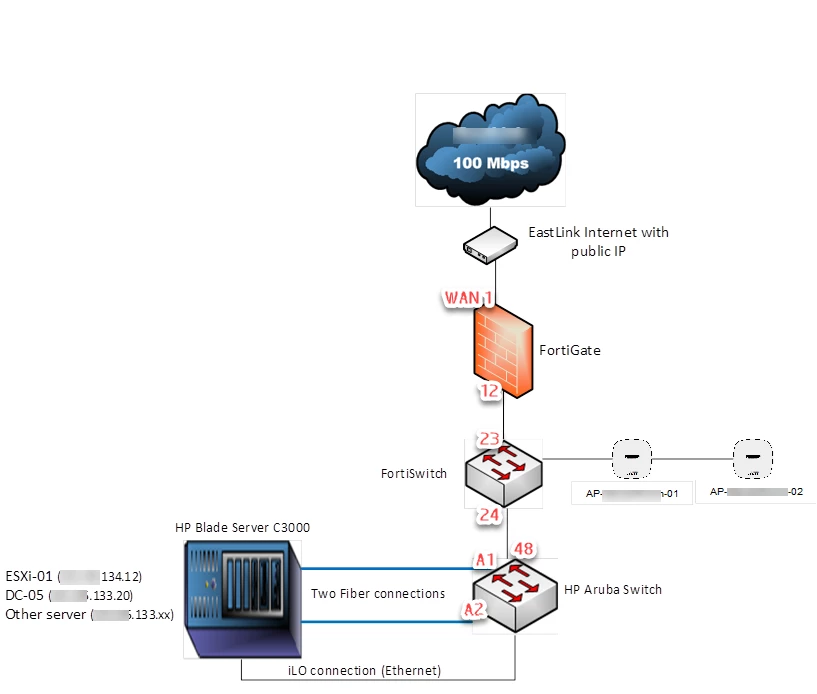

Ports connectivity details – HP Aruba switch:
Port A1 – Fiber connection from HP Blade server to HP Aruba switch on port A1
Port A2 - Fiber connection from HP Blade server to HP Aruba switch on port A1
Port 5 – iLO Ethernet connection from HP Blade server to HP Aruba switch on port 5
Port 48 – Ethernet connection (uplink) from Fortinet switch’s port 24 to HP Aruba switch to 48.
Ports connectivity details – FortiSwitch:
Port 24 - Ethernet connection (downlink) from HP Aruba switch to Fortinet switch’s port 24.
Port 23 - Ethernet connection (Uplink) from Fortinet switch’s port 23 to FortiGate port 12.
Ports connectivity details – FortiSwitch:
WAN 1 – This interface has public IP and connected to Internet device/gateway that has a public IP
Port 12 - Ethernet connection (Downlink) from FortGate port 12 to FortiSwitch port 23.
