Problem config vpn ipsec site to site fortigate site to mikrotik site
Greetings everyone...
I am new in fortigate but i have problem i tried using ipsec fortigate to mikrotik side B using ipsec. i was following documentation and tutorial around internet but still no luck...my plan is connecting fortigate to Mikrotik side B using vpn ipsec tunnel.

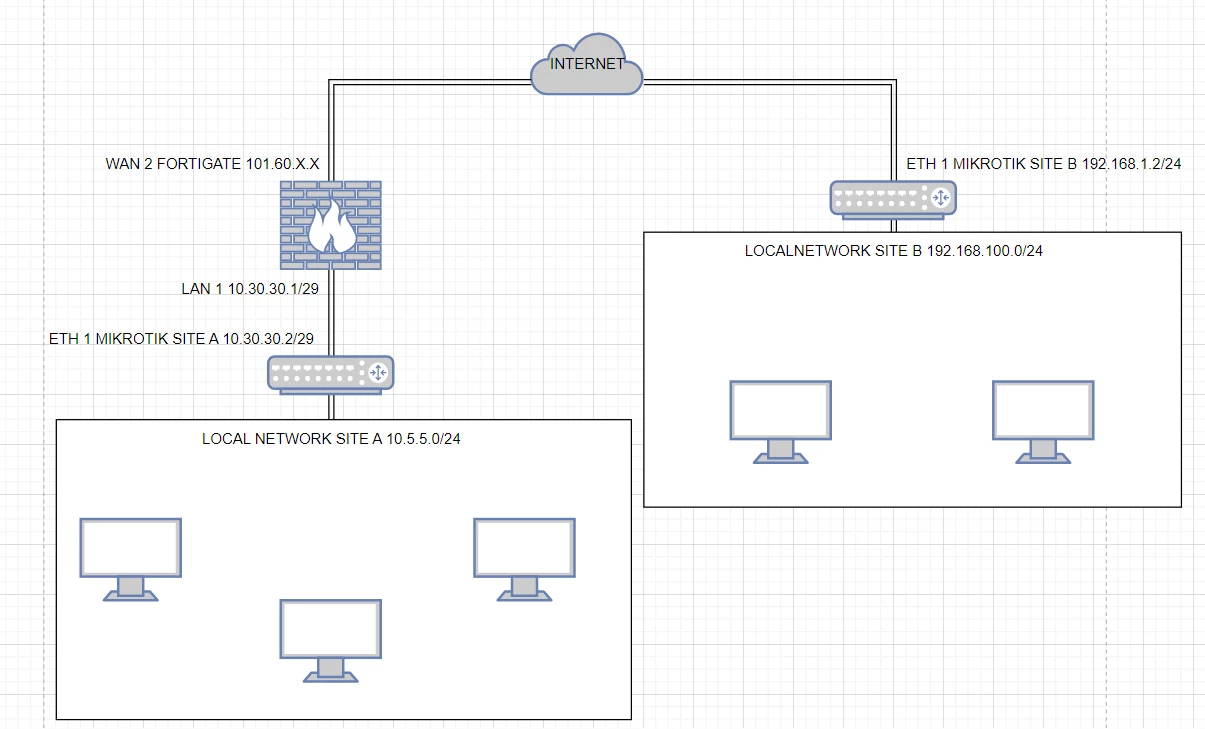

here's my topology
101.60.x.x(note: x is i hide the real ip, but the ip is public static)
my fortigate setting phase 1
config vpn ipsec phase1-interface edit "SS6KDI" set interface "wan2" set peertype any set net-device disable set proposal 3des-sha1 set dpd on-idle set nattraversal disable set remote-gw 192.168.1.2 set psksecret ENC W82Ix1eXY+0aYfeqYi10GqEqdYV7t0BKbyusKbuli23dnRR6PRuGbidTP2xgikn7pXc6/xr8wgyN/qEzg1m2b/xQINWSW+6ash/tumJzfgAXZA6DeKXylRg8g1tajR01vTRBFKJkZKky2ZlURPjTHy1B0rpBPBMfBlHvCnCQEFsi+6kkM43rfWIIFBYMDRxSPz8B/A== next end
my fortigate setting phase 2
FGT_PPA-MLP (SS6KDI) # show config vpn ipsec phase2-interface edit "SS6KDI" set phase1name "SS6KDI" set proposal 3des-sha1 set dhgrp 5 set auto-negotiate enable set src-addr-type name set dst-addr-type name set src-name "SS6KDI_local_subnet_1" (this is 10.30.30.0/29) set dst-name "SS6KDI_remote_subnet_1" (this is 192.168.100.0/24) next end
my firewall policy for vpn ss6kdi
edit 9 set name "SS6KDIlocal" set uuid 7f43d5dc-f45b-51ed-c70d-953765cd3998 set srcintf "SS6KDI" set dstintf "LAN INTERNAL" set action accept set srcaddr "SS6KDI_remote_subnet_1" 192.168.100.0/24 set dstaddr "SS6KDI_local_subnet_1" 10.30.30.0/29 set schedule "always" set service "ALL" set logtraffic all next edit 11 set name "SS6KDI_remote" set uuid 8316eeba-f45b-51ed-cfb2-9f418095d2a8 set srcintf "AIM DMZ" set dstintf "SS6KDI" set action accept set srcaddr "SS6KDI_local_subnet_1" 10.30.30.0/29 set dstaddr "SS6KDI_remote_subnet_1" 192.168.100.0/24 set schedule "always" set service "ALL" set logtraffic all set comments " (Copy of SS6KDIlocal) (Reverse of SS6KDIlocal)" next end
here my static route
set device "SS6KDI" set dstaddr "SS6KDI_remote_subnet_1" 192.168.100.0/24 next
for now in mikrotik sideB here's the setting:
/ip ipsec profile set [ find default=yes ] dh-group=modp1536 enc-algorithm=3des nat-traversal=no add dh-group=modp1536 enc-algorithm=3des name=profileSS6KDI nat-traversal=no /ip ipsec peer add address=101.60.x.x/32 name="peers KDI" profile=profileSS6KDI /ip ipsec proposal set [ find default=yes ] enc-algorithms=3des pfs-group=modp1536 add enc-algorithms=3des name=proposalSS6KDI pfs-group=modp1536 /ip ipsec identity add peer="peers KDI" secret=xxx /ip ipsec policy add dst-address=10.30.30.0/29 peer="peers KDI" proposal=proposalSS6KDI sa-dst-address=101.60.x.x sa-src-address=0.0.0.0 src-address=192.168.100.0/24 tunnel=yes
here for result debug from the fortigate
FGT_PPA-MLP # # diagnose vpn ike log-filter dst-addr4 192.168.1.2 FGT_PPA-MLP # diagnose debug application ike -1 Debug messages will be on for 30 minutes. FGT_PPA-MLP # diagnose debug enable FGT_PPA-MLP # ike 0:SS6KDI:24089: negotiation timeout, deleting ike 0:SS6KDI: connection expiring due to phase1 down ike 0:SS6KDI: deleting ike 0:SS6KDI: deleted ike 0:SS6KDI: schedule auto-negotiate ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: created connection: 0x882e880 6 101.60.x.x->192.168.1.2:500. ike 0:SS6KDI: HA start as master ike 0:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:500 negotiating ike 0:SS6KDI: no suitable ISAKMP SA, queuing quick-mode request and initiating ISAKMP SA negotiation ike 0:SS6KDI:24094: initiator: main mode is sending 1st message... ike 0:SS6KDI:24094: cookie a431aa6e30adbdee/0000000000000000 ike 0:SS6KDI:24094: out A431AA6E30ADBDEE00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24094: sent IKE msg (ident_i1send): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=a431aa6e30adbdee/0000000000000000 ike shrank heap by 159744 bytes ike 0:SS6KDI:24094: out A431AA6E30ADBDEE00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24094: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=a431aa6e30adbdee/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24094: out A431AA6E30ADBDEE00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24094: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=a431aa6e30adbdee/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24094: out A431AA6E30ADBDEE00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24094: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=a431aa6e30adbdee/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24094: negotiation timeout, deleting ike 0:SS6KDI: connection expiring due to phase1 down ike 0:SS6KDI: deleting ike 0:SS6KDI: deleted ike 0:SS6KDI: schedule auto-negotiate ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: created connection: 0x882e880 6 101.60.x.x->192.168.1.2:500. ike 0:SS6KDI: HA start as master ike 0:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:500 negotiating ike 0:SS6KDI: no suitable ISAKMP SA, queuing quick-mode request and initiating ISAKMP SA negotiation ike 0:SS6KDI:24100: initiator: main mode is sending 1st message... ike 0:SS6KDI:24100: cookie dd3c684e49c7fb0f/0000000000000000 ike 0:SS6KDI:24100: out DD3C684E49C7FB0F00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24100: sent IKE msg (ident_i1send): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=dd3c684e49c7fb0f/0000000000000000 ike 0:SS6KDI:24100: out DD3C684E49C7FB0F00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24100: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=dd3c684e49c7fb0f/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24100: out DD3C684E49C7FB0F00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24100: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=dd3c684e49c7fb0f/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24100: out DD3C684E49C7FB0F00000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24100: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=dd3c684e49c7fb0f/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24100: negotiation timeout, deleting ike 0:SS6KDI: connection expiring due to phase1 down ike 0:SS6KDI: deleting ike 0:SS6KDI: deleted ike 0:SS6KDI: schedule auto-negotiate ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: created connection: 0x882e880 6 101.60.x.x->192.168.1.2:500. ike 0:SS6KDI: HA start as master ike 0:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:500 negotiating ike 0:SS6KDI: no suitable ISAKMP SA, queuing quick-mode request and initiating ISAKMP SA negotiation ike 0:SS6KDI:24107: initiator: main mode is sending 1st message... ike 0:SS6KDI:24107: cookie 16f09453070aa0e4/0000000000000000 ike 0:SS6KDI:24107: out 16F09453070AA0E400000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24107: sent IKE msg (ident_i1send): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=16f09453070aa0e4/0000000000000000 ike 0:SS6KDI:24107: out 16F09453070AA0E400000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24107: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=16f09453070aa0e4/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24107: out 16F09453070AA0E400000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24107: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=16f09453070aa0e4/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24107: out 16F09453070AA0E400000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24107: sent IKE msg (P1_RETRANSMIT): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=16f09453070aa0e4/000000000000000 0 ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: using existing connection ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: request is on the queue ike 0:SS6KDI:24107: negotiation timeout, deleting ike 0:SS6KDI: connection expiring due to phase1 down ike 0:SS6KDI: deleting ike 0:SS6KDI: deleted ike 0:SS6KDI: schedule auto-negotiate ike 0:SS6KDI:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:0 ike 0:SS6KDI:SS6KDI: config found ike 0:SS6KDI: created connection: 0x882e880 6 101.60.x.x->192.168.1.2:500. ike 0:SS6KDI: HA start as master ike 0:SS6KDI: IPsec SA connect 6 101.60.x.x->192.168.1.2:500 negotiating ike 0:SS6KDI: no suitable ISAKMP SA, queuing quick-mode request and initiating ISAKMP SA negotiation ike 0:SS6KDI:24115: initiator: main mode is sending 1st message... ike 0:SS6KDI:24115: cookie d09d92449a6a8c17/0000000000000000 ike 0:SS6KDI:24115: out D09D92449A6A8C1700000000000000000110020000000000000000CC0D00005C000000010000000100000050010100020300002401010000 800B0001000C0004000151808001000580030001800200028004000E0000002402010000800B0001000C000400015180800100058003000180020002800400050D000014 AFCAD71368A1F1C96B8696FC775701000D0000144048B7D56EBCE88525E7DE7F00D6C2D30D0000184048B7D56EBCE88525E7DE7F00D6C2D3C00000000000001482990317 57A36082C6A621DE00000000 ike 0:SS6KDI:24115: sent IKE msg (ident_i1send): 101.60.x.x:500->192.168.1.2:500, len=204, vrf=0, id=d09d92449a6a8c17/0000000000000000 ike 0:SS6KDI:24115: out 101.60.x.x(note: x is i hide the real ip, but his ip is public static)
error log from mikrotik site B
phase1 negotiation failed due to time up 192.168.1.2[500]<=>101.60.x.x[500] 313ffbc15d85dda8:0000000000000000
101.60.x.x Fortigate gw(note: x is i hide the real ip here sorry, but the ip is public static)
i don't have idea what's fault in my config, your help is really appreciate... thank you
