Predefined IPS signature settings

Dear All,





Could you please tell me how can I view the settings (F-SBID) of predefined ips signatures? Also where can I modify the rate/limit setting for example for the SMTP.Login.Brute.Force ? Especially in CLI?

Thank you



fortigate 600e

pminarik
pminarikAnswer
Staff
Oct 12, 2022 1:49 PM UTC

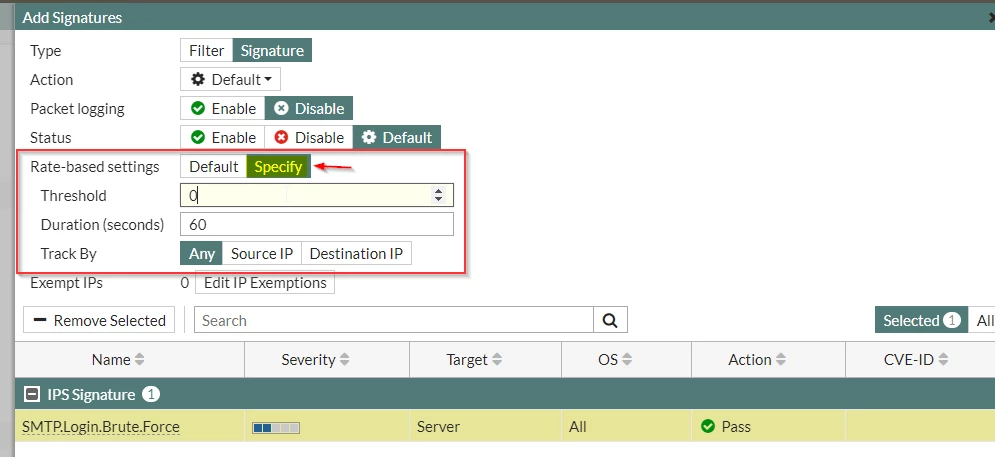

It's the same in 6.4 and 7.0/7.2. If you're not too familiar with it, perhaps GUI will be easier. You need to pick the specific signature(s), and then switch "Rate-based settings" to "specify". Then you will be able to set the threshold and duration.



GUI IPS signature filter rate-based settingsGUI IPS signature filter rate-based settings



4 replies

gfleming
Staff
Staff
Oct 11, 2022 8:34 PM UTC

Here is the documentation to modify the rate-based settings: https://docs.fortinet.com/document/fortigate/7.2.2/administration-guide/419589/ips-configuration-options#Threshold



Unfortunately I am fairly certain there is no way to view the F-SBID of the predefined IPS signatures. TAC can help you modify them as needed, though, on a case-by-case basis.

marypoppins
New Member
Oct 12, 2022 1:40 PM UTC

Sorry forgot to mention, version 6.4
I can not find its equivalent in the 6.4 version docs :(

pminarik
Staff
pminarikAnswer
Staff
Oct 12, 2022 1:49 PM UTC

It's the same in 6.4 and 7.0/7.2. If you're not too familiar with it, perhaps GUI will be easier. You need to pick the specific signature(s), and then switch "Rate-based settings" to "specify". Then you will be able to set the threshold and duration.



GUI IPS signature filter rate-based settingsGUI IPS signature filter rate-based settings
