power button continuously flashing green issue

  • July 10, 2024
  • 2 replies
  • 6282 views

Dear All ,

hope you are doing great,

i have FortiGate 60D, just unplugged it from the server room to hardware reset everything,

put on my desk, plugged the power and all i got the power button is contiguously flashing green,

it was working fine.



tried to putty it with no access.



your support much appreciated if anyone faced this before.



Regards

Ghadamsi

Best answer by Ghadamsi82

Dear FortiMax_it,



will look for new Power Supply to test,



thanks for your input.



Regards

2 replies

fricci_FTNT
Staff
fricci_FTNT
Staff
July 10, 2024

Hi @Ghadamsi82 ,



Is the 'power' light or the 'status' light that is flashing green? Status light flashing green means that the FortiGate is booting up.

https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/7e69a42e-1a0a-11e9-9685-f8bc1258b856/FG-FWF_60D_Series_Supplement_BSMI.pdf


Have you tried to connect the FortiGate to console (see link below) and then reboot it? Do you see any message on the console output after the reboot (or disconnect/reconnect power)?
https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-connect-to-the-FortiGate-console-port/ta-p/214839



Best regards,

    Ghadamsi82
    Ghadamsi82Author
    New Member
    July 11, 2024

    Thanks @fricci_FTNT  for the reply,



    Only the 3 green small vertical next to Fatigate Logo and the Power Bottons are continuously nonstop flashing

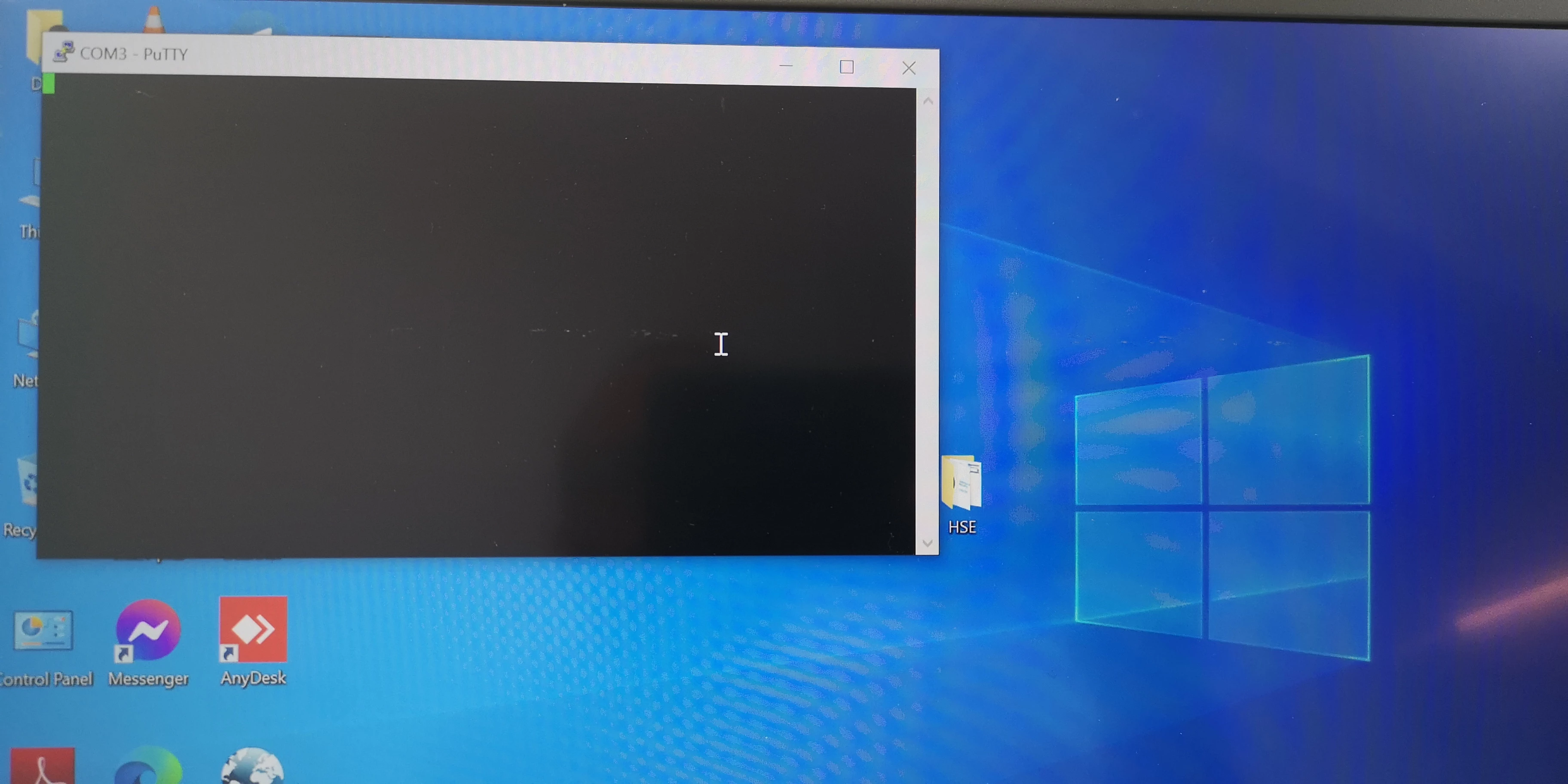

    attachedIMG_20240711_092449.jpg the Putty screen shot of what i got.



    Regards



    fricci_FTNT
    Staff
    fricci_FTNT
    Staff
    July 11, 2024

    Hi @Ghadamsi82 ,



    Thank you for checking it. We should see at least some message appearing on the console, at this point the problem should be the power supply as suggested by FortiMax_it.

    Best regards,

      FortiMax_it
      FortiMax_it
      Explorer III
      July 10, 2024

      Hi, it's almost certainly the power supply that's broken. Get a new one, I'm pretty sure it will start again. It happened every now and then with the D series Fortigates.

        Ghadamsi82
        Ghadamsi82AuthorAnswer
        New Member
        July 11, 2024

        Dear FortiMax_it,



        will look for new Power Supply to test,



        thanks for your input.



        Regards

        Ghadamsi82
        Ghadamsi82Author
        New Member
        July 24, 2024

        Yes, it was Power Supply issue,



        Many thanks to your support.
