Possible Bug: VPN Tunnel Name Change causes Firewall Policies to not work

  • September 3, 2025
  • 6 replies
  • 1285 views

I don't know if this is the correct place to post this but we found a possible bug. We had our test IPSec Dialup tunnel successfully setup and routing rules implemented. Last week our team started converting the setting from our test setup to how we want our production settings to be.



During this process the team changed the PSK, Peer ID and name of the VPN tunnel. After these changes were saved traffic no longer was being routed to the correct destination. I found that DNS queries were traveling down the tunnel and traffic was being denied. We changed everything back to the way it was during testing and there was no change to behavior. Everything was still being blocked.



Then I was reviewing the interface for the VPN tunnel and noticed that the 'Security Fabric Connection' was still checked from a previous test we were working on. I unchecked the box it okay and all traffic for the VPN tunnel started routing correctly again.



So I went back to the VPN tunnel and changed the name again. As soon as that happens the VPN tunnel drops. I connect back and traffic is again blocked. I now go to the interface for the VPN tunnel and check 'HTTPS' and click ok. Traffic immediately starts flowing again. I then uncheck 'HTTPS' and traffic still flows.



So it seems that re-naming tunnels can cause an issue with how the Firewall evaluates the traffic causing unintended routing problems. Hopefully this helps someone in the future as this was by pure luck that we found the problem.



We are currently running 7.4.8 with FortiClient 7.4.3.



6 replies

BillH_FTNT
Staff
BillH_FTNT
Staff
September 3, 2025

HI @AZFortinetMember335

Did you change the tunnel name in Firewall ? Can you snapshot where you put "https" ?

Thanks

Bill

    AZFortinetMember335
    AZFortinetMember335Author
    New Member
    September 4, 2025

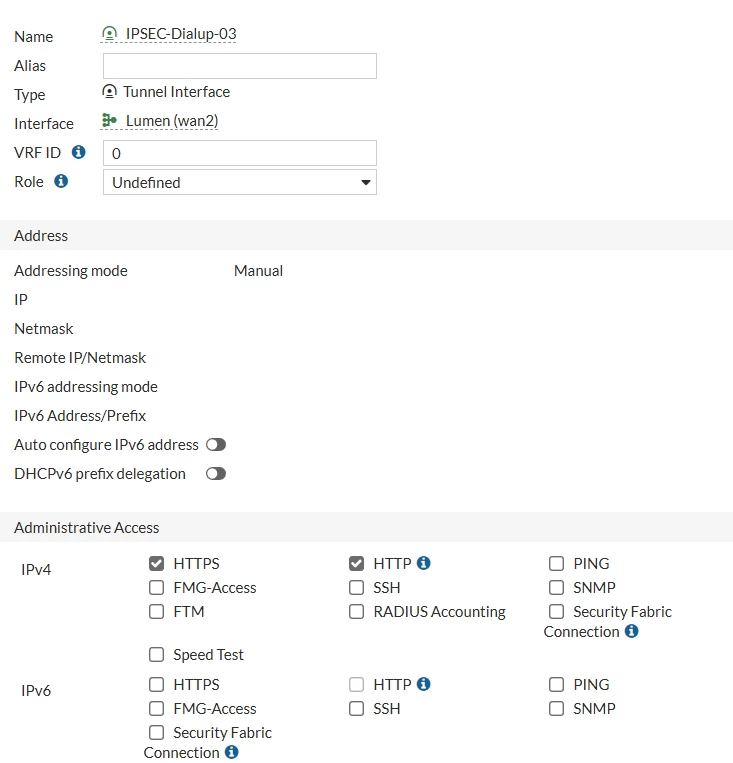

    Ok, so for example we start out with the Tunnel name and change it here to IPSEC-Dialup-03.StartOfTunnelName.png

    The traffic will stop adhering to Firewall policies until you go to the interface for the tunnel and make a change to the interface. I only made changes to the Administrative Access portion of the interface. I didn't test if any change would fix this. So after I go to the interface I click HTTPS and save the change. As soon as that is done traffic flows as designed. Going back into the interface and unchecking HTTPS and saving does not change the behavior after it is 'fixed'.


    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    September 4, 2025

    Nice find, thanks for sharing.



    Would you be so kind to open a support case to make FTNT aware of this bug? Apparently, an internal table (translating a name string to a tunnel ID) will only be refreshed if other changes are made.



    Just copy&paste your post to the ticket, and while I do not expect FTNT to have a patch ready for this, it will trigger a bug ticket which eventually will lead to a fix in a future patch.



      AZFortinetMember335
      AZFortinetMember335Author
      New Member
      September 4, 2025

      I submitted a ticket, thanks for verifying it wasn't just an us issue.

      BillH_FTNT
      Staff
      BillH_FTNT
      Staff
      September 4, 2025

      Hi @AZFortinetMember335



      I will reproduce the issue in my lab. Could you please upload the configuration to the ticket? This will help us identify the exact version and setup, increasing the chances of reproducing the issue and finding the root cause. Thanks!



      Regards

      Bill

      AZFortinetMember335
      AZFortinetMember335Author
      New Member
      September 4, 2025

      @BillH_FTNT

      Ok, uploaded the current config.

      BillH_FTNT
      Staff
      BillH_FTNT
      Staff
      September 5, 2025

      Hi @AZFortinetMember335

      The issue could reproduce in my lab that when I change Tunnel name, the traffic dropped.

      When I changed the tunnel name, traffic was dropped. However, once I re-established the tunnel, traffic flowed normally. Could you please test a new tunnel using a local user account like "test01"?

      Update Sep 5: When you do the test, please help to collect the debug log.

      # Debug

      diag debug enable
      diag debug cli 7
      diag debug application ike -1



      # Get vpn information.
      diag vpn ike gateway list
      diag vpn tunnel list



      Our engineering team is investigating a similar issue. We need the log files to identify the root cause. Thank you

      Bill
