Question

Port Forwarding

  • October 3, 2014
  • 17 replies
  • 21625 views
Hi , First of all I just wanted to say " Thank you" for all the nice videos that you' ve shared it helps a lot on my part. I' ve seen on the video on how to do port forwarding on Fortigate 100D which in coincidence the same unit on mine. I' ve followed all the steps on the video but still the port on 7882-7999 is closed. At first I used to mapped my CCTV server, turn off the windows firewall and Avast anti-virus. Second, I tried to configure my Ip camera to port 7882 but still no lack. On my Ip camera I can connect and I can view it on web browser. I tried as well to check on fortigate CLI to key in these command " diagnose sniffer packet any ' port 7882' but nothing happens otherwise If I' m going to do a telnet that' s the time I can see an activity on the fortigate CLI screen but on the otherhand, the result of my telnet still the same. Any help would be appreciated a lot. Thank you.

    17 replies

    emnoc
    emnoc
    New Member
    October 3, 2014
    Your following the right track but I would suggest you use the diag debug flow option. If you your camera is really using port 7882 and diag sniffer show nothing , than maybe your have the wrong port defined I would use diag debug flow e.g diag debug reset diag debug en diag debug flow filter addr x.x.x.x diag debug flow show console enable diag debug flow trace start 100 And then monitor for the port and traffic and what interfaces After where ensure that you disable the diag and reset it. Also you can post configuration of the VIP if you want us to review. FWIW: Ensure that the fwpolicy for the vip has [B[no nat enabled.
    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    October 3, 2014
    In the sniffer command, I' d use ' tcp and port 7882' that is, specify the protocol as well. If you don' t see ANY traffic traces using sniffer then the traffic is not reaching the FGT at all. I recommend using sniffer as a first-aid tool to see if any intended traffic is reaching the FGT at all. If so, use the debug flow command to see where the firewall drops it. But without input - no output.
    Ronald_Diaz
    Ronald_DiazAuthor
    New Member
    October 4, 2014

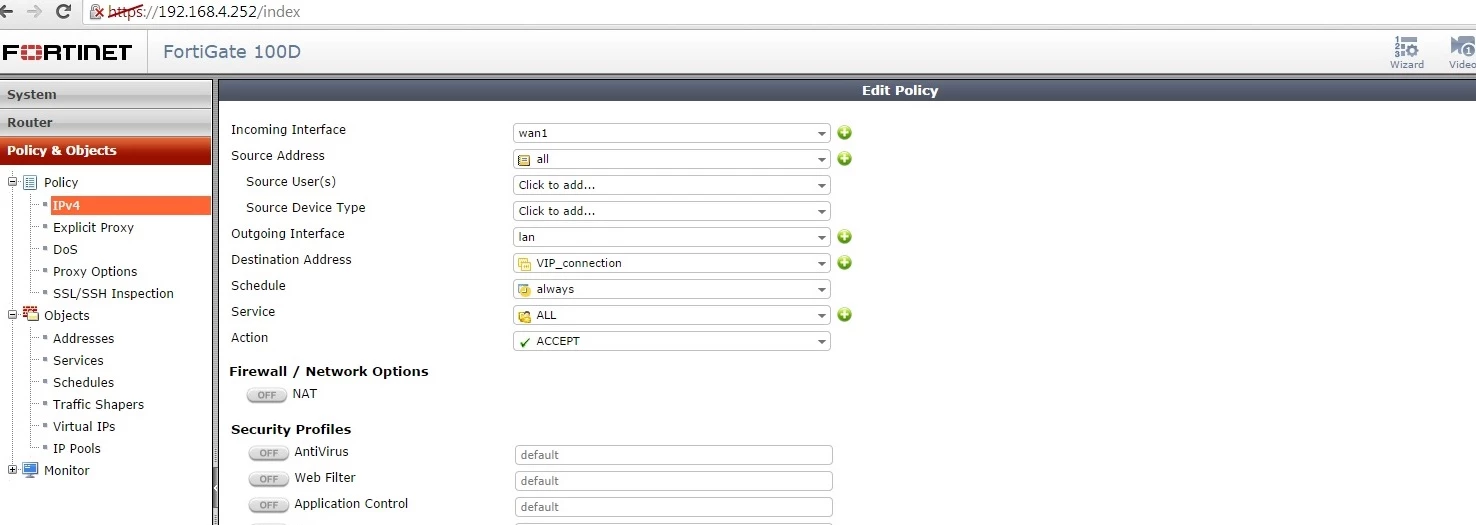

    Hi Emnoc, Please find
    Ronald_Diaz
    Ronald_DiazAuthor
    New Member
    October 4, 2014

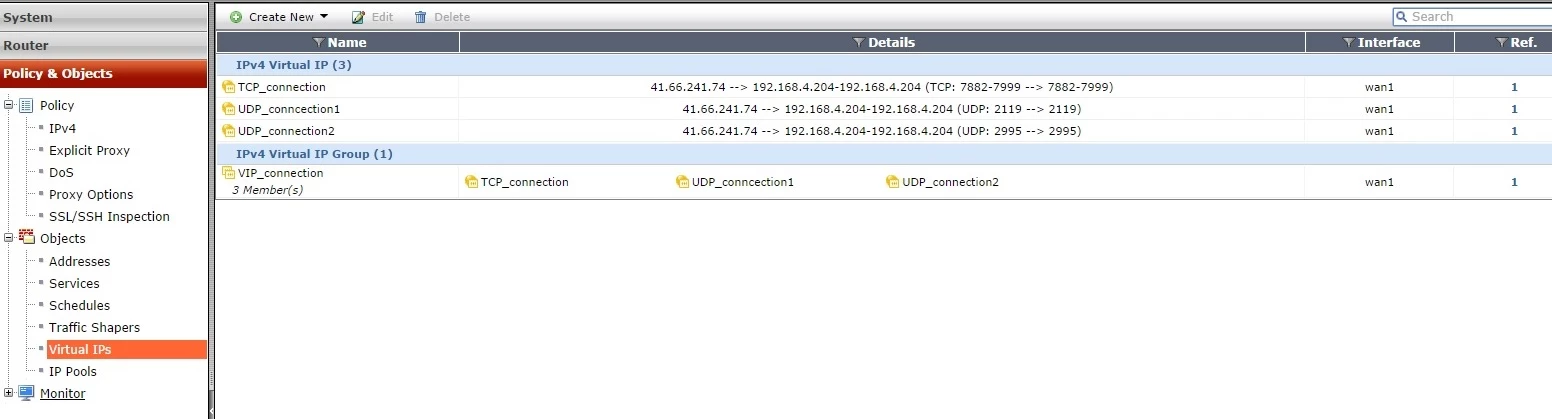

    Here' s my VIp' s
    Ronald_Diaz
    Ronald_DiazAuthor
    New Member
    October 4, 2014

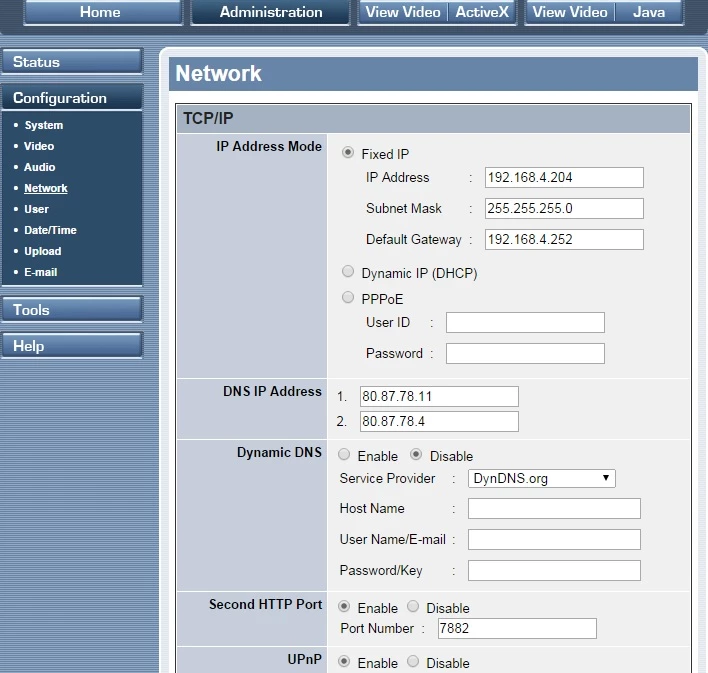

    Here is my Ip cam configuration.
    emnoc
    emnoc
    New Member
    October 4, 2014
    curious what does it mean second http port? Are other listeners available on this cam? Does any of other traffic hits the other VIPs port(s)? Did you do what I and Ede suggested earlier? If traffic doesn' t hot the fortigate than nothing will get to the VIP.
    Ronald_Diaz
    Ronald_DiazAuthor
    New Member
    October 4, 2014
    Yes. I tried the commands that you' ve advise on me but still.. on the Ip cam there is no other port assign on that, only the 7882 which i configured. by the way my Ip camera brand and model is trendnet tv-ip501p.
    netmin
    netmin
    New Member
    October 4, 2014
    I was wondering ... why the udp ports (?) - but I eventually found it. OK, following items that you can check: - on a local PC you can access the camera via port 7882 (http://192.168.4.204:7882) - the defined gateway 192.168.4.252 is also used by other PCs (so ... not the fortigate mgmt address only) - the ip address of the camera 192.168.4.204 is not within the DHCP range of the fortigate interface so that another PC may have received it as well - the udp port used in the linked example should not be needed (?) - try disabling UPNP on the trendnet camera, other users appear to have issues with it' s functionality - normally a VIP from the external address to the single port 7882 should do - alternatively, try creating a VIP using the camera default port 80 Edit:typo
    Dave_Hall
    Dave_Hall
    New Member
    October 4, 2014

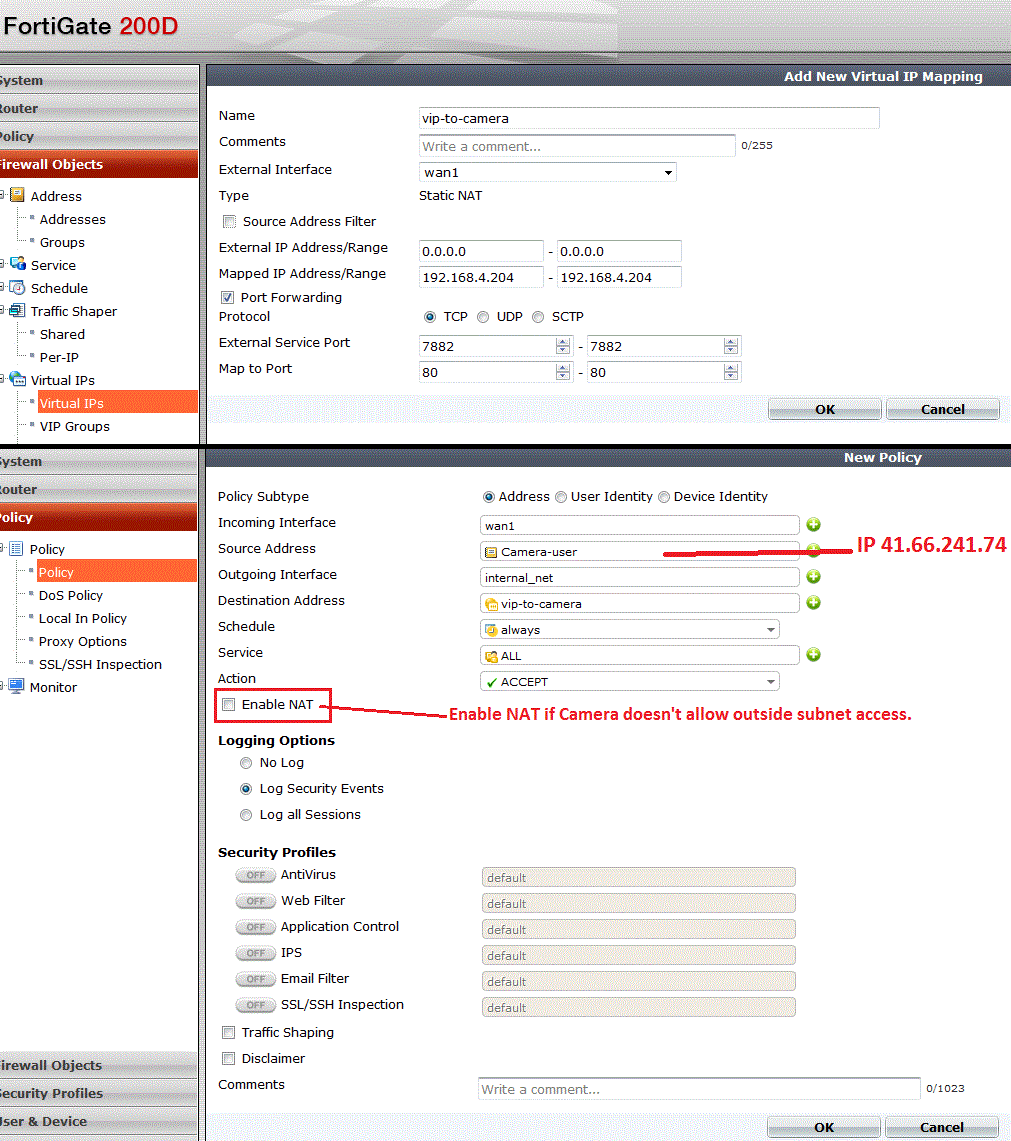

    The TV-IP501P Internet Camera User Manual doesn' t give much info on what ports is used -- it' s implied that port 80 is the default port with an optional secondary HTTP port. So setting up a port forward should be straight forward -- however, I would set it up a bit differently, along the lines of the following....
    Ronald_Diaz
    Ronald_DiazAuthor
    New Member
    October 4, 2014
    Hi Netmin, Yes. on my local PC I can access my ip cameras using the 192.168.4.204 without even adding the 7882 port on it. The ip address 192.168.4.252 is the FG managment IP. I don' t configure DHCP on my FG.
    netmin
    netmin
    New Member
    October 4, 2014
    ok, let me ask this differently: the camera has port 80 (default) and port 7882 (secondary) enabled and you are able to access port 7882 ? (because you wanted to map it) I have noticed that .252 is your mgmt ip. But since you specified it as default gateway in the camera settings it must be also the default gateway for this network (just wanted to make sure). As Dave stated correctly you should also be able to map to port 80. The UPnP settings were mentioned on other posts on the net to create problems. You might want to disable it, just for a test.
