Question

Phase 2 VPN showing a green and a red arrow

  • May 24, 2024
  • 4 replies
  • 5278 views

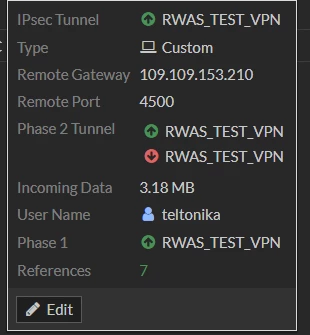

Hi all, why is the phase 2 showing a green and a red arrow? This is a Teltonika RUT901 connecting to a Fortigate 100F. Any advice would be appreciated.

4 replies

ozkanaltas
ozkanaltas
Valued Contributor III
May 24, 2024

Hello @BFieldy ,



According to this error, a new phase 2 addition has been made on the FortiGate side, but this addition has not been made on the other side or the settings seem to be incompatible.



Did you configure 2nd phase 2 selector on teltonica side?



Also, can you run these commands on Fortigate after that can you share the output with us?



diag debug disable diag debug reset diag vpn ike log-filter clear diag vpn ike log-filter name RWAS_TEST_VPN diag debug application ike -1 diag debug enable





    BFieldy
    BFieldyAuthor
    New Member
    May 24, 2024

    Hello @ozkanaltas,



    Before I run these commands will this cause any service issues with current VPNs running?



    ozkanaltas
    ozkanaltas
    Valued Contributor III
    May 24, 2024

    Hello @BFieldy ,



    These commands does not affect your vpn traffic.Just shows debug logs which is not showing on gui.

      fricci_FTNT
      Staff
      fricci_FTNT
      Staff
      May 24, 2024

      Hi @BFieldy ,



      Can you paste the output of commands below:

      get vpn ipsec tunnel summary
      diag vpn tunnel list name RWAS_TEST_VPN
      diag vpn ike gateway list name RWAS_TEST_VPN



      The below might also help:
      https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-IPsec-VPNs-tunnels/ta-p/195955
      https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Troubleshooting-IPsec-Site-to-Site-Tunnel/ta-p/195672

      Best regards,

        BFieldy
        BFieldyAuthor
        New Member
        May 24, 2024

        Hello @fricci_FTNT,

        'RWAS_TEST_VPN' 109.109.153.210:4500 selectors(total,up): 2/1 rx(pkt,err): 20424/0 tx(pkt,err): 0/0





        list ipsec tunnel by names in vd 0
        ------------------------------------------------------
        name=RWAS_TEST_VPN ver=2 serial=5 10.255.255.253:4500->109.109.153.210:4500 tun_id=109.109.153.210 tun_id6=::109.109.153.210 dst_mtu=1500 dpd-link=on weight=1
        bound_if=7 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0

        proxyid_num=2 child_num=0 refcnt=7 ilast=5016 olast=51695743 ad=/0
        stat: rxp=20424 txp=0 rxb=3184038 txb=0
        dpd: mode=on-demand on=1 idle=20000ms retry=3 count=0 seqno=0
        natt: mode=keepalive draft=0 interval=10 remote_port=4500
        proxyid=RWAS_TEST_VPN proto=0 sa=1 ref=2 serial=5 auto-negotiate
        src: 0:0.0.0.0-255.255.255.255:0
        dst: 0:109.109.153.210-109.109.153.210:0
        SA: ref=4 options=18627 type=00 soft=0 mtu=1422 expire=28791/0B replaywin=2048
        seqno=1 esn=0 replaywin_lastseq=00004fc4 qat=0 rekey=0 hash_search_len=1
        life: type=01 bytes=0/0 timeout=42897/43200
        dec: spi=7439c315 esp=aes key=16 96a78e61fa2441571754539b8e21f044
        ah=sha1 key=20 f254eba969e7e720e1bf0d18bb12e8777a18b4a0
        enc: spi=cc9ac9ac esp=aes key=16 0b1acd12c9d49516b53cdda94769cc07
        ah=sha1 key=20 59c5b0d4b5dbedf9892897b1dbcc72d30a36ed1a
        dec:pkts/bytes=20428/3188808, enc:pkts/bytes=0/0
        npu_flag=02 npu_rgwy=109.109.153.210 npu_lgwy=10.255.255.253 npu_selid=3e dec_npuid=1 enc_npuid=0
        proxyid=RWAS_TEST_VPN proto=0 sa=0 ref=2 serial=1 auto-negotiate
        src: 0:0.0.0.0-255.255.255.255:0
        dst: 0:0.0.0.0-255.255.255.255:0
        run_tally=0





        vd: root/0
        name: RWAS_TEST_VPN
        version: 2
        interface: wan1 7
        addr: 10.255.255.253:4500 -> 109.109.153.210:4500
        tun_id: 109.109.153.210/::109.109.153.210
        remote_location: 0.0.0.0
        network-id: 0
        virtual-interface-addr: 169.254.35.165 -> 0.0.0.0
        created: 14202s ago
        peer-id: teltonika
        peer-id-auth: no
        nat: me peer
        PPK: no
        IKE SA: created 1/1 established 1/1 time 4870/4870/4870 ms
        IPsec SA: created 1/1 established 1/1 time 4870/4870/4870 ms

        id/spi: 134539 42bea39f6145a995/2f00641e7c3e4264
        direction: initiator
        status: established 14202-14197s ago = 4870ms
        proposal: aes128-sha256
        child: no
        SK_ei: b59f59a62a65ad94-38e48d89968a348e
        SK_er: 9c0ab4b8bbf9f0c5-66a48e40885dff19
        SK_ai: a0eed65b4baa30e2-3de058b0c85298a0-eb91385f69427d59-c80a8b914d93f844
        SK_ar: 30b14a40546eea0b-396dbc7946e59036-7f1cd6d506d4758e-f76918c054529ead
        PPK: no
        message-id sent/recv: 2/0
        lifetime/rekey: 43200/28702
        DPD sent/recv: 00000000/00000000
        peer-id: teltonika

        pminarik
        Staff
        pminarik
        Staff
        June 4, 2024

        Your phase2 config snippet + the "diag vpn tunnel list" give us the answer.



        Your phase2 is configured with wildcard selectors, any IP allowed: 0.0.0.0/0->0.0.0.0/0.

        However the other side negotiated a more specific selectors: 0.0.0.0/0 -> 109.109.153.210/32 (your side -> remote side)



        Thus the outputs and the GUI status are showing two phase2 SAs:

        1. The one that was negotiated:

        proxyid=RWAS_TEST_VPN proto=0 sa=1 ref=2 serial=5 auto-negotiate
        src: 0:0.0.0.0-255.255.255.255:0
        dst: 0:109.109.153.210-109.109.153.210:0
        SA: ref=4 options=18627 type=00 soft=0 mtu=1422 expire=28791/0B replaywin=2048

        [...]



        2. The one that exists in the config but ended up not being agreed on (the SA is marked as red in the GUI):

        proxyid=RWAS_TEST_VPN proto=0 sa=0 ref=2 serial=1 auto-negotiate
        src: 0:0.0.0.0-255.255.255.255:0
        dst: 0:0.0.0.0-255.255.255.255:0
        run_tally=0



        This is normal with IKEv2, which supports selector narrowing, where both sides only need to find an overlap in their proposals to reach agreement.



        In your case, this can be considered a problem if you are expecting both sides to agree on a wide-open SA (0/0->0/0), in which case you should reconfigure the remote peer to offer a wilde-open selector as well. Otherwise, this is normal and can be ignored.

          abarushka
          Staff
          abarushka
          Staff
          May 24, 2024

          Hello,



          It looks like there are 2 IPsec phase2 configured. You may consider to verify by running the command below in CLI:

          sh | grep -f RWAS_TEST_VPN (and check "config vpn ipsec phase2-interface" configuration section)

          BFieldy
          BFieldyAuthor
          New Member
          May 24, 2024

          Hello, the command returns:

          PRDICTFWD003 # sh | grep -f RWAS_TEST_VPN
          config system interface
          edit "RWAS_TEST_VPN" <---
          set vdom "root"
          set ip 169.254.35.165 255.255.255.255
          set allowaccess ping
          set type tunnel
          set remote-ip 169.254.35.166 255.255.255.252
          set snmp-index 38
          set interface "wan1"
          next
          end
          config vpn ipsec phase1-interface
          edit "RWAS_TEST_VPN" <---
          set interface "wan1"
          set ike-version 2
          set local-gw 10.255.255.253
          set keylife 43200
          set peertype any
          set net-device disable
          set exchange-interface-ip enable
          set proposal aes128-sha256
          set localid "fortigate"
          set nattraversal forced
          set remote-gw 109.109.153.210
          set psksecret ENC
          next
          end
          config vpn ipsec phase2-interface
          edit "RWAS_TEST_VPN" <---
          set phase1name "RWAS_TEST_VPN" <---
          set proposal aes128-sha1
          set auto-negotiate enable
          next
          end

          (didnt include the temporary allow all firewall rules)

          config router static
          edit 18
          set dst 10.220.0.0 255.255.255.240
          set device "RWAS_TEST_VPN" <---
          next
          end

          abarushka
          Staff
          abarushka
          Staff
          May 24, 2024

          Hello,



          There is only one phase2 selector configured. It is not clear why there are 2 arrows for phase 2 in GUI though.



          Both phase 1 and phase 2 are up:
          IKE SA: created 1/1 established 1/1 time 4870/4870/4870 ms
          IPsec SA: created 1/1 established 1/1 time 4870/4870/4870 ms



          FortiGate output looks good. In case there is still connectivity issue, I would recommend to sniff the traffic "diagnose sniffer packet any 'host <destination IP address>' 4 0 a" while pinging host on the other site. In case connectivity looks good, you may consider rebooting FortiGate and check GUI output.



          Moreover, you may consider to add widget GUI: Dashboard -> IPsec and check how many phase2 will be visible.

            BFieldy
            BFieldyAuthor
            New Member
            May 24, 2024

            Hi @ozkanaltas,

            On the teltonica side I configured the exact same phase 2 settings, there is only one showing, DH group 14, AES 128, and SHA1 with a lifetime of 12 hours.

            ozkanaltas
            ozkanaltas
            Valued Contributor III
            May 24, 2024

            Hi @BFieldy ,



            When I review your configuration output. Yes, you are right. You just configured one phase 2 on the FortiGate side. Maybe there is a bug in the GUI.



            Which version do you use? If it is possible can you bring down and up your vpn? This action will goes down and up the tunnel, which means a short-term interruption.

            BFieldy
            BFieldyAuthor
            New Member
            May 24, 2024

            Hello @ozkanaltas

            Unfortunately rebuilding or restarting the VPN tunnel doesn't resolve this, I will have to arrange for a reboot of the Fortigate firewall to see if this resolves the problem.
