Packet capture in 5.2?

  • June 25, 2014
  • 8 replies
  • 49362 views
Hrm. Upgraded a little 60D dev firewall to 5.2 to give it a test drive. One of the first things I' ve noticed is that the packet capture menu that used to be under System > Network isn' t there any longer. I checked the 5.2 docs -- and it looks like that' s where it' s still *supposed* to be. Also checked the admin profile to make sure the super_admin profile still had " packet capture configuration" permissions (it does). Bug? Or am I just missing something.
    Best answer by emnoc

    https://x.x.x.x/p/firewall/sniffer/



    Where x.x.x.x is your interface for mng-https.







    8 replies

    fruit_company
    fruit_companyAuthor
    New Member
    June 25, 2014
    Does look like a bug in the FW web GUI. Found another post that said you can still get to it by going direct to the URL (sorry for not giving credit to the person who found this). Packet capture menu can still be reached at: https://[firewall mgmt IP]/p/firewall/sniffer/ Worked for me.
    simonorch
    simonorch
    Explorer
    July 1, 2014
    The packet capture page comes up on the 30D and you can create filters but you can' t run the capture, or at least the start button doesn' t work.
    Carl_Wallmark
    Carl_Wallmark
    New Member
    July 1, 2014
    (sorry for not giving credit to the person who found this)
    it´s ok
    lightmoon1992
    lightmoon1992
    New Member
    July 30, 2014
    diag sniffer packet " interface name" " capture filter" 3 this will give you the exact same output if you save all the output through your terminal tool (putty for example), and then you convert it via perl command. details described below: [link=]http://docs-legacy.fortinet.com/frec/admin_hlp/1-1-0/index.html#page/FortiRecorder_Help/packet_capture.html[/link]
    Jack_Gerbs
    Jack_Gerbs
    New Member
    July 30, 2014
    https://[firewall mgmt IP]/p/firewall/sniffer/
    I just tried this and it appears to be there on my 110C, but the only interfaces available for the capture are in the root VDOM. Interfaces in other VDOMs do not show up. I am curious what the URL is to interfaces assigned to other VDOMs I am a big fan of the CLI for sniffing traffic.
    Warren_Olson_FTNT
    Staff
    Warren_Olson_FTNT
    Staff
    July 30, 2014
    CLI is also preferred for me but the caveat is knowing how much data will be passing across the screen, too much data and you can start losing information due to putty or whatever term utility can' t keep up with buffering/writing to log.
    Sean_Toomey_FTNT
    Staff
    Sean_Toomey_FTNT
    Staff
    July 30, 2014

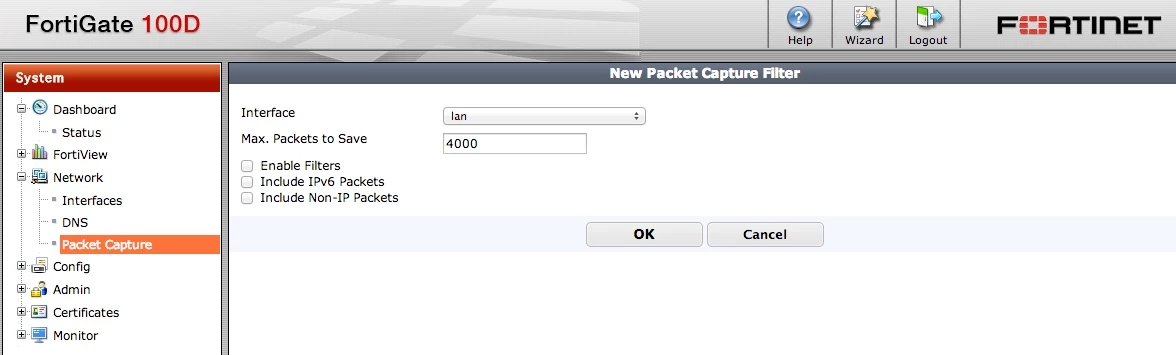

    CLI is certainly possible but you have to convert it to Wireshark format with a perl script. I have 5.2 GA on a FortiGate 100D and also on FortiGate VM and this options is there for me (see pic). Also don' t forget you can capture packets on a per-rule basis now! Can do this one from GUI or CLI. In GUI there is a checkbox, in CLI there is option under rule edit for set capture-packet enable/disable Cheers!
    emnoc
    emnocAnswer
    New Member
    September 3, 2015

    https://x.x.x.x/p/firewall/sniffer/



    Where x.x.x.x is your interface for mng-https.







    rthomp
    rthomp
    New Member
    February 2, 2016

    Has anyone seen this issue?  I do a packet capture  dia sniffer packet any "host 10.1.1.100" 4 and after one packet or two is displayed on the screen then it stops.  Is this a Fortigate setting that is preventing this?

    AlexFeren
    AlexFeren
    New Member
    February 3, 2016

    rthomp wrote:
    Has anyone seen this issue?  I do a packet capture  dia sniffer packet any "host 10.1.1.100" 4 and after one packet or two is displayed on the screen then it stops.  Is this a Fortigate setting that is preventing this?

    Can't comment on "after one packet or two ... stops", however, FYI, as per Technical Note: Packet capture buffer limit there's a 2MB buffer limit.



    Sean_Toomey_FTNT wrote:
    Also don' t forget you can capture packets on a per-rule basis now!

    Unfortunately, requires log disk - not useful on lower-end devices.
