OSPF with vxlan over IPSec

Forum|Forum|3 years ago
May 5, 2023
7 replies
8294 views

Hi

I have 2 remote site router connected using vxlan over ipsec. I can ping, telnet and ssh between the routers. I want to do an ospf adjacency between them but even though they ping, the neighborship won't come up. When I debug ospf I see that ospf is sending hello packets on both routers but they don't receive any. I'm allowing all between the vxlan and vlan in the firewall policy. It's as if multicast traffic is being block.

And I want to know if is possible to get an adjacency between the routers using vxlan over ospf.

FortiGate

Best answer by jm-barreto

Hi @aguerriero

Thanks for the info. That what I was missing. I created the policy and its working.

aionescu

Staff

Hi @jm-barreto, welcome to the community.

Can you share with us the ospf configuration?

Also, please update us with the output of the get router info ospf neighbor command and of the ones from https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-check-OSPF-packets-flow-with-functions-of/ta-p/217812

akristof

Staff

Hello,

I just want to add, vxlan is capable of carrying broadcast and multicast, that's its purpose. But depends how Vxlan over ipsec is configured, if you are using VTEPs, if you are using virtual-wire-pair or software switch and if you are trying establish ospf adjacency between FortiGates directly or between some devices in local networks.

jm-barretoAuthor

Explorer

Hi @akristof @aionescu

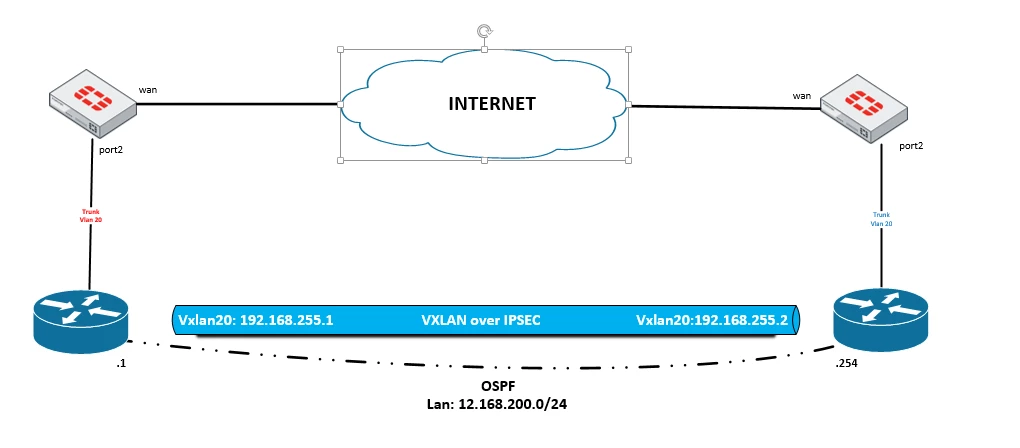

This is my lab
Screenshot 2023-05-05 153055.png

I want OSPF on the routers not on the fortigate.

Here is my configuration

HUB

config vpn ipsec phase1-interface
edit "MASTER"
set type dynamic
set interface "wan1"
set ike-version 2
set peertype any
set net-device disable
set proposal aes128-sha256
set dpd on-idle
set psksecret XXXXX
set dpd-retryinterval 60
next
end

config vpn ipsec phase2-interface
edit "MASTER"
set phase1name "MASTER"
set proposal aes128-sha256
next
end

config system interface
edit "internal2"
set vdom "root"
set type physical
set alias "MAIN TRUNK TO SW G0/1"
set device-identification enable
set lldp-transmission enable
set snmp-index 10
next

edit "VLAN20"
set vdom "root"
set alias "20"
set device-identification enable
set role lan
set snmp-index 24
set interface "internal2"
set vlanid 20
next

edit "vxlan20"
set vdom "root"
set type vxlan
set snmp-index 19
set interface "MASTER"
next

config system switch-interface
edit "VXLAN20"
set vdom "root"
set member "VLAN20" "vxlan20"
next
end

config firewall policy

edit 2
set name "vpn"
set uuid 084eddfc-e92d-51ed-ba85-2fefd7d70152
set srcintf "MASTER"
set dstintf "MASTER"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
next
edit 3
set name "VXLAN20"
set uuid 5c77cd10-ea79-51ed-8532-f53e2788e47e
set srcintf "any"
set dstintf "any"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
set logtraffic all
next

---------------------------------------------------------------------------------------------------------------

SPOKE

config vpn ipsec phase1-interface
edit "VPN-REMOTE-1"
set interface "wan1"
set ike-version 2
set peertype any
set net-device disable
set proposal aes128-sha256
set localid "REMOTE1"
set remote-gw x.x.x.x
set psksecret XXXX
next
end

config vpn ipsec phase2-interface
edit "VPN-REMOTE-1"
set phase1name "VPN-REMOTE-1"
set proposal aes128-sha256
set auto-negotiate enable
set src-subnet 192.168.255.2 255.255.255.255
next
end

config system interface
edit "internal2"
set vdom "root"
set type physical
set alias "REMOTE2 TO SW G0/1"
set snmp-index 10
next
end

config system interface
edit "VLAN20"
set vdom "root"
set alias "20"
set device-identification enable
set role lan
set snmp-index 17
set interface "internal2"
set vlanid 20
next
end

config system interface
edit "VPN-REMOTE-1"
set vdom "root"
set ip 192.168.255.2 255.255.255.255
set allowaccess ping
set type tunnel
set remote-ip 192.168.255.1 255.255.255.0
set snmp-index 18
set interface "wan1"
next
end

config system interface
edit "vxlan20"
set vdom "root"
set type vxlan
set snmp-index 19
set interface "VPN-REMOTE-1"
next
end

config system switch-interface
edit "VXLAN20-SW"
set vdom "root"
set member "vxlan20" "VLAN20"
set intra-switch-policy explicit
next
end

config firewall policy
edit 3
set name "VXLAN20"
set uuid 2ec00ac8-ea78-51ed-9df2-b59fd250f581
set srcintf "any"
set dstintf "any"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
set logtraffic all
next
end

aionescu

Staff

Hi, can you share the output of the following commands, ran on both FortiGates.

diagnose debug reset
diagnose debug console timestamp enable
diagnose debug flow filter addr x.x.x.x <------------where x.x.x.x is the IP of an OSPF router
diagnose debug flow trace start 1000
diagnose debug enable

To disable the debug:
diagnose debug disable
diagnose debug reset

jm-barretoAuthor

Explorer

I use dynamic vpn for fast deployment of the remote site because sometime I don't have access to the remote IP information.

Christian_89

Contributor III

If you are unable to establish an OSPF adjacency between two remote site routers connected using VXLAN over IPsec, despite being able to ping, telnet, and SSH between them, it's possible that the issue is related to multicast traffic being blocked.

OSPF relies on multicast traffic for neighbor discovery and exchange of routing information. If multicast traffic is blocked, OSPF packets will not be received, which could prevent the OSPF adjacency from being established.

To resolve the issue, you may need to ensure that multicast traffic is allowed to pass between the routers over the VXLAN tunnel. This may involve checking firewall policies and ensuring that multicast routing is properly configured.

Additionally, you may want to verify that the OSPF settings on both routers are correctly configured, including the OSPF network type and interface settings. For example, if the OSPF network type is set to point-to-point, but the interface is actually configured as broadcast, this could prevent the OSPF adjacency from being established.

As for your question about establishing an adjacency between the routers using VXLAN over OSPF, it is possible to use OSPF over VXLAN, provided that the OSPF network type and interface settings are properly configured. However, keep in mind that VXLAN encapsulates layer 2 traffic over layer 3 networks, so the OSPF adjacency will need to be established over the VXLAN tunnel interface rather than the physical interface.

Corriero-ITV

New Member

Check for MTU mismatch or MTU ignore. We had an issue like this between Fortinet and VMware NSX-T. Very little showed when debugged, but it ended working when we corrected MTU mismatch.

aguerriero

Explorer

Create a multicast policy and allow the ospf address 224.0.0.5/224.0.0.6 depending on your network type.

Also link local multicast like an ospf hello has a TTL of 1. You may also need to set the fortigate to not decrement the TTL.

https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/968606/multicast-processing-and-basic-multicast-policy

jm-barretoAuthorAnswer

Explorer

Hi @aguerriero

Thanks for the info. That what I was missing. I created the policy and its working.

jm-barretoAuthor

Explorer

Thank everyone for your help.
