OS 5.2.3 - SSL VPN Portal unreachable at all

  • July 28, 2015
  • 19 replies
  • 29012 views

Hi guys,



currently I'm hanging at a really bad issue.

I configured SSL VPN Portal at a FWF 60D, but the Portal is unreachable at all.

Not from External, not from internal.



Setup:

Internal LAN --> FWF 60D --> Transfer-Network --> VDSL Router --> WAN

Client --> WAN --> VDSL Router (Port Forward 8443 to FWF) --> FWF 60D --> LAN



Try to reach SSL VPN Portal from Internal at the Transfer Network Interface of FWF (not possible)

Try to reach SSL VPN Portal from External WAN over VSDL Router (not possible)



Diag Debug Application sslvpn --> no connection

I know, its an easy thing, but I stuck at the moment...



No further ideas...

    Best answer by Sylvia

    You can see the sslvpn process with diag sys top (maybe you need a longer list: diag sys top 5 70).

    You should the the sslvpn process here.



    You are sure that you do not get any output with diag deb enable and then diag deb appl sslvpn -1 (and then try to connect to the sslvpn)?



    In this case try the flow command:

    diag deb ena

    diag deb flow sho con ena

    diag deb flow show fun ena

    diag deb flow filter port 8443

    diag deb flow trace start 20

    (then connect to the sslvpn and send us the output)



    19 replies

    rwpatterson
    rwpatterson
    New Member
    July 29, 2015

    So far, what inward policies do you have in place?

    Troubleshooter_73
    Troubleshooter_73Author
    Explorer
    July 29, 2015
    ssl.root --> Internal ssl.root --> WAN1 (Split Tunneling Disabled) Edit: The system has replaced a FWF 50B with the same config and it worked fine. I doesn't import the config, it was configured from scratch.
    Sylvia
    Sylvia
    Explorer
    July 29, 2015

    I assume that the Port Forwarding on the VDSL router is working, because SSLVPN works with the old FGT50B in the same setup. If you are not sure about this, try "diag sniffer packet any 'port 8443' 4" to doublecheck.



    Did you specify a source usergroup in the "ssl.root->internal" policy?

    Did you assign a portal for the usergroups in the SSLVPN settings?



    Sylvia

    Troubleshooter_73
    Troubleshooter_73Author
    Explorer
    July 29, 2015

    Hi Sylvia,



    yes of course, the usergroup and Portal mapping is already done and double checked.



    The forwarding is working for an internal FTP Server (21), for the Management Port (changed to 10443) byself and for an internal Apache (443).

    Only the SSLVPN Portal at 8443 isn't working.

    But this is the strange Thing what I mean, the Portal is also unreachable from the internal Network.

    It Looks like the sslvpnd isn't working!

    Sylvia
    Sylvia
    Explorer
    July 29, 2015

    Ok, but just to make sure: is "internal" added to the listening interfaces on (WebUI) VPN>SSL>Settings>Listen on Interface?

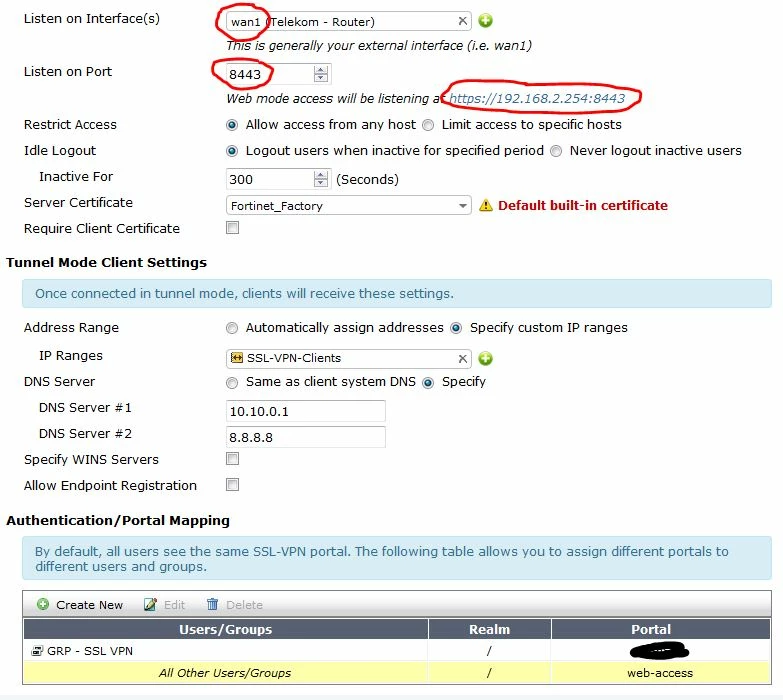

    Maybe you can send a screenshot from this site.

    And what is the exact output of "diag deb appl sslvpn -1"?



    Troubleshooter_73
    Troubleshooter_73Author
    Explorer
    July 29, 2015

    I dont understand...

    Why the internal Interface should be add to listening Interfaces?

    Is this a new config?



    I always add the external WAN Interface only!

    Troubleshooter_73
    Troubleshooter_73Author
    Explorer
    July 29, 2015

    Output of SSL VPN Portal doesnt bring up any Messages!



    strange also if I try to connect to portal:



    FWF-60D # diagnose vpn ssl statistics

    No data yet.



    FWF-60D # diagnose vpn ssl list



    FWF-60D #



    So, nothing, absolut nothing...



    Is there possibility to check, if the sslvpn deamon is running?

    Sylvia
    SylviaAnswer
    Explorer
    July 30, 2015

    You can see the sslvpn process with diag sys top (maybe you need a longer list: diag sys top 5 70).

    You should the the sslvpn process here.



    You are sure that you do not get any output with diag deb enable and then diag deb appl sslvpn -1 (and then try to connect to the sslvpn)?



    In this case try the flow command:

    diag deb ena

    diag deb flow sho con ena

    diag deb flow show fun ena

    diag deb flow filter port 8443

    diag deb flow trace start 20

    (then connect to the sslvpn and send us the output)



    Troubleshooter_73
    Troubleshooter_73Author
    Explorer
    July 31, 2015

    At first, thank you for your help Sylvia, your welcome!

    Sylvia wrote:

    You are sure that you do not get any output with diag deb enable and then diag deb appl sslvpn -1 (and then try to connect to the sslvpn)?



    I tested again and here comes the output...



    FWF-60D # diagnose debug enable

    FWF-60D # diagnose debug application sslvpn -1

    FWF-60D # id=20085 trace_id=694 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=694 func=init_ip_session_common line=4527 msg="allocate a new session-00008823"
    id=20085 trace_id=694 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=695 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=695 func=init_ip_session_common line=4527 msg="allocate a new session-00008826"
    id=20085 trace_id=695 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=696 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=696 func=init_ip_session_common line=4527 msg="allocate a new session-00008828"
    id=20085 trace_id=696 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=697 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=697 func=init_ip_session_common line=4527 msg="allocate a new session-00008829"
    id=20085 trace_id=697 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=698 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=698 func=init_ip_session_common line=4527 msg="allocate a new session-0000882a"
    id=20085 trace_id=698 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=699 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=699 func=init_ip_session_common line=4527 msg="allocate a new session-0000882d"
    id=20085 trace_id=699 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=700 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=700 func=init_ip_session_common line=4527 msg="allocate a new session-00008834"
    id=20085 trace_id=700 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=701 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:27164->192.168.2.254:8443) from wan1. flag , seq 1948078413, ack 0, win 65535"
    id=20085 trace_id=701 func=init_ip_session_common line=4527 msg="allocate a new session-0000883b"
    id=20085 trace_id=701 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"



    Ok, the output of diag sys top 5 70

    newcli      912      R      28.5     0.8             sshd      882      S      14.2     0.6          pyfcgid      801      S       0.0     1.9          pyfcgid      800      S       0.0     1.8          pyfcgid      802      S       0.0     1.7          pyfcgid      798      S       0.0     1.3          cmdbsvr       38      S       0.0     1.2          cw_wtpd      100      S       0.0     1.0          miglogd       58      S       0.0     1.0           httpsd      898      S       0.0     1.0        ipshelper       73      S <     0.0     0.9           httpsd      900      S       0.0     0.9           httpsd      897      S       0.0     0.9           httpsd       60      S       0.0     0.9           cu_acd      103      S       0.0     0.8           newcli      883      S       0.0     0.8           cw_acd       98      S       0.0     0.8            fgfmd       97      S       0.0     0.7          src-vis       86      S       0.0     0.7             iked       78      S       0.0     0.6          updated       79      S       0.0     0.6              imd       77      S       0.0     0.6         dnsproxy       95      S       0.0     0.6        forticldd       71      S       0.0     0.6        forticron       70      S       0.0     0.6             pimd       54      S       0.0     0.6            authd       72      S       0.0     0.6           fcnacd       74      S       0.0     0.6            snmpd       83      S       0.0     0.5        eap_proxy       96      S       0.0     0.5            dhcpd       85      S       0.0     0.5   zebos_launcher       46      S       0.0     0.5           fnbamd       67      S       0.0     0.5             sshd       88      S       0.0     0.5            quard       91      S       0.0     0.5       fortilinkd      102      S       0.0     0.5          uploadd       57      S       0.0     0.5             ntpd       87      S <     0.0     0.5        fclicense       68      S       0.0     0.5       ipsmonitor       64      S       0.0     0.5            sqldb       76      S       0.0     0.5            getty       63      S <     0.0     0.5        alertmail       94      S       0.0     0.5         kmiglogd       59      S       0.0     0.5          telnetd       90      S       0.0     0.5          wpad_ac       99      S       0.0     0.5   merged_daemons       66      S       0.0     0.5     swctrl_authd      104      S       0.0     0.5              fsd      107      S       0.0     0.5         httpclid       75      S       0.0     0.5  initXXXXXXXXXXX        1      S       0.0     0.5              nsm       47      S       0.0     0.2              imi       61      S       0.0     0.2             bgpd       52      S       0.0     0.1            ospfd       50      S       0.0     0.1            isisd       53      S       0.0     0.1           ospf6d       51      S       0.0     0.1            pim6d       55      S       0.0     0.1             pdmd       56      S       0.0     0.1             ripd       48      S       0.0     0.1           ripngd       49      S       0.0     0.1          usbmuxd      106      S       0.0     0.0



    Sylvia wrote:

    In this case try the flow command:

    diag deb ena

    diag deb flow sho con ena

    diag deb flow show fun ena

    diag deb flow filter port 8443

    diag deb flow trace start 20

    (then connect to the sslvpn and send us the output)



    FWF-60D # id=20085 trace_id=674 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=674 func=init_ip_session_common line=4527 msg="allocate a new session-000086f1"
    id=20085 trace_id=674 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=675 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=675 func=init_ip_session_common line=4527 msg="allocate a new session-000086f4"
    id=20085 trace_id=675 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=676 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=676 func=init_ip_session_common line=4527 msg="allocate a new session-000086f5"
    id=20085 trace_id=676 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=677 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=677 func=init_ip_session_common line=4527 msg="allocate a new session-000086f6"
    id=20085 trace_id=677 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=678 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=678 func=init_ip_session_common line=4527 msg="allocate a new session-000086f7"
    id=20085 trace_id=678 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=679 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=679 func=init_ip_session_common line=4527 msg="allocate a new session-000086f9"
    id=20085 trace_id=679 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=680 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=680 func=init_ip_session_common line=4527 msg="allocate a new session-000086fa"
    id=20085 trace_id=680 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=681 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=681 func=init_ip_session_common line=4527 msg="allocate a new session-000086fb"
    id=20085 trace_id=681 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=682 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:3072->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=682 func=init_ip_session_common line=4527 msg="allocate a new session-000086fc"
    id=20085 trace_id=682 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"
    id=20085 trace_id=683 func=print_pkt_detail line=4378 msg="vd-root received a packet(proto=6, 80.187.96.74:9885->192.168.2.254:8443) from wan1. flag , seq 3571483839, ack 0, win 65535"
    id=20085 trace_id=683 func=init_ip_session_common line=4527 msg="allocate a new session-00008701"
    id=20085 trace_id=683 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"



    If I see the error code

    msg="iprope_in_check() check failed on policy 0, drop"

    I assume the sslvpnd isn't running, because the root cause is in 90% of cases like this a denied access at the interface or closed port, but in my case I triple checked the SSL-VPN config and it is listening at WAN1 and uses the port 8443.

    At the VDSL Router the port forwarding is working, as you can see in the flow trace...





    A Reboot of Appliance doesn't work at all.



    I think I have to open a ticket at fortinet, because I have no idea and it was never as hard like here to implement a SSL-VPN access...

    gschmitt
    gschmitt
    New Member
    July 30, 2015

    Is this a new device (as in newly configured) or did you do a firmware update per chance?



    At VPN > SSL > Settings did you add the external and the internal interface? What is the Listen on Port number?

    it13
    it13
    New Member
    August 5, 2015

    I had this problem as before, my solution is downgrade to 5.2.1.

    You can search the forum that have other people have this problem and downgrade also.

    Sylvia
    Sylvia
    Explorer
    August 5, 2015

    Hey Troubleshooter_73,



    I never experienced the problem that the sslvpnd is not running. v5.2.3 is ok for sslvpn in my opinion. There's just the fact the the sslvpn settings and firewall policies have to be configured differently then before. That's what produces most trouble for us.



    id=20085 trace_id=675 func=fw_local_in_handler line=382 msg="iprope_in_check() check failed on policy 0, drop"

    Normally this says that there is no matching firewall policy for this traffic, so it's drop by policy 0.



    Do you have a wan1->ssl.root policy with source usergroup configured?



    Sylvia

    ykonstantakopoulos
    ykonstantakopoulos
    New Member
    August 10, 2015

    Hello,



    I totally agree with Sylvia.



    could you please check or even share your firewall policies for SSL VPN? You need a policy to firstly authenticate the SSL VPN users.

    Troubleshooter_73
    Troubleshooter_73Author
    Explorer
    August 10, 2015
    Fixed! The Usergroup was missing in the policy! Thanx to all for the support!
    TuncayBAS
    TuncayBAS
    Explorer
    August 10, 2015

    Please set folloving commands.



    config vpn ssl setting

    config authentication-rule

    edit 1

    unset source-interface

    end

    end







    TuncayBAS
    TuncayBAS
    Explorer
    August 12, 2015

    Was there improvement?
