Opening some ports on Fortnet 100F

Forum|Forum|3 years ago
May 23, 2023
3 replies
1886 views

Hi,

We are having a new phone system which is 3CX. I have been asked to open some ports.I am not sure how to do that.

There is a manual from the 3CX vendor but it is for 80C.

Can someone help me please.

(1)Disable SIP ALG

(2)

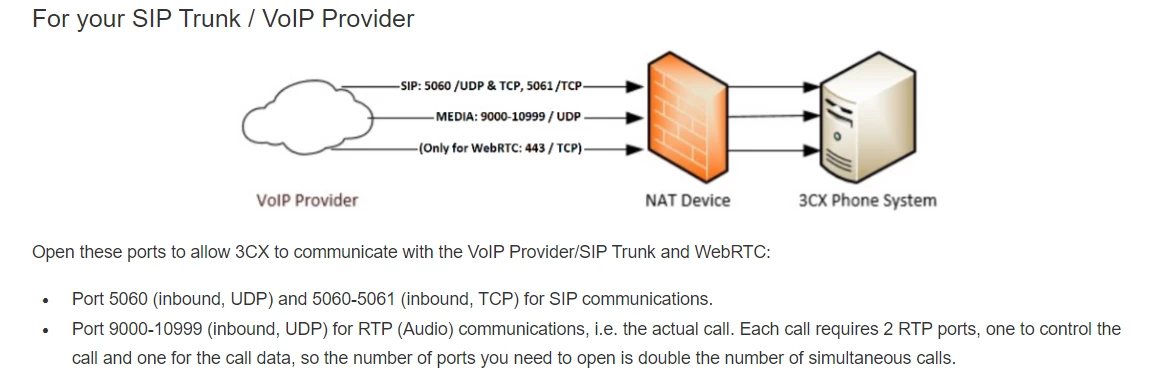

Screenshot 1.png

Thanks

Tazio

FortiGate

jackpr

New Member

Hi,

Sure.

This is my cheat sheet. Be warned, please verify you are deleting SIP, RAS, and H323 and these match the numbers below. They usually do.

To verify:

config system session-helper

show full

Verify that SIP, RAS and H323 are 13, 3 and 2 as mentioned below. If so, proceed as follows:

config system session-helper

delete 13

delete 3

delete 2

end

##disable sip helper and nat trace

config system settings

set sip-helper disable end

set sip-nat-trace disable end

end

#edit voip profile

config voip profile

edit default config

sip set status disable

end

- Flush ARP cache (warning - this may cause some network disruption temporarily)

execute clear system arp table

rtichkule

Staff

Hello Tazio,

Please refer below document which would help in opening the ports in fortigate.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-open-a-port/ta-p/191003

BR

tthrilok

Staff

Hi Tazio,

Thank you for the query!

As per the topology I understand in your scenario firewall will be acting as a NAT device for your H323 traffic. In this case, you want to know how to create a NAT rule to route your traffic received on public IP to your internal server with private IP.

You may refer the below article:

>> https://community.fortinet.com/t5/FortiGate/Technical-Tip-Virtual-IP-VIP-port-forwarding-configuration/ta-p/198143

+ Let us know if the above helps or needed any assistance!

Thank you!
