Explorer

Question

Old Device Forti 800C V.40

Forum|Forum|2 years ago
October 1, 2024
10 replies
2283 views

Hello ,

i have old device 800c with Firmware Version v4.0,build0656,130211 (MR3 Patch 12)

I want to ask

1. how to set Gateway Failure (Recovery) Actions for Link Health Monitor ( 2 isp , wan 1 & wan 2 )

2. is it possible upgrade firmware to v5 or v6 ? please suggest

regard

AEK

SuperUser

Hi Eko

Regarding your 2nd question,

The latest possible FortiOS on FG 800C is 5.6.14.

But you need to have a valid support contract, which I guess is not the case.

Nevertheless I'd suggest to check with your local Fortinet account manager or local Fortinet partner if they can help in such case.

AEK

EkoAuthor

Explorer

Hi AEK

yes, for this device , i dont have valid contract.

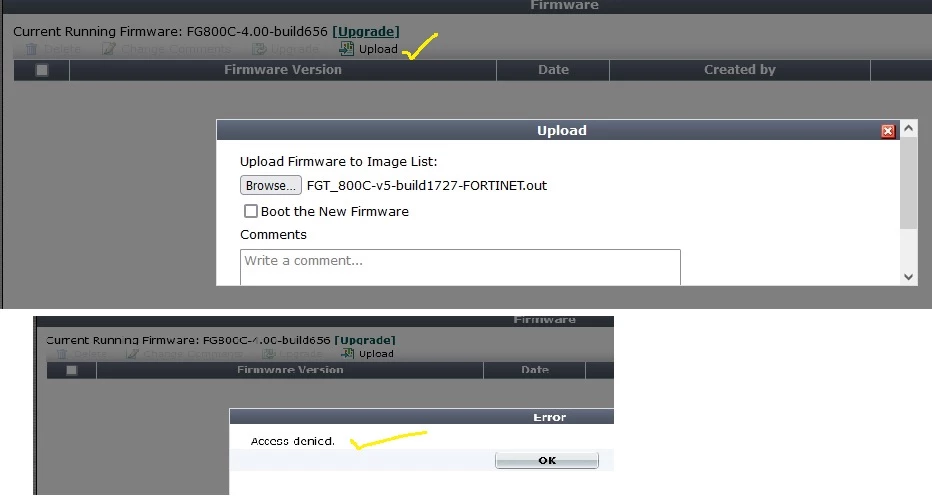

so that why , i try my self , manual upload firmware file , but upload file firmware.jpg access denied .

AEK

SuperUser

Hi Eko

Please check this thread if it helps.

https://community.fortinet.com/t5/Support-Forum/FortiGate-can-t-be-upgraded/td-p/93319?m=101606

AEK

SuperUser

For the first question, what do you mean by action if not removing/adding default route?

Also check this tech tip if it can help.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Link-monitor/ta-p/197504

AEK

EkoAuthor

Explorer

dear AEK ,

i mean if internet 1 , down , routing auto update routing table

like these pict.

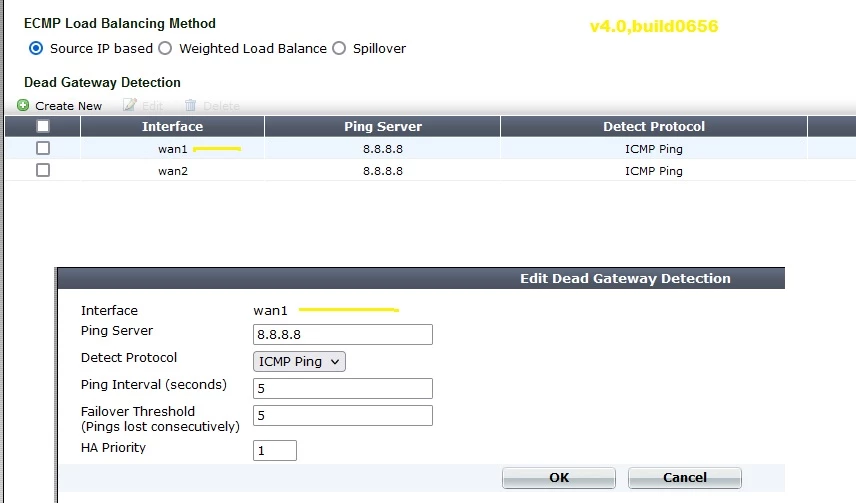

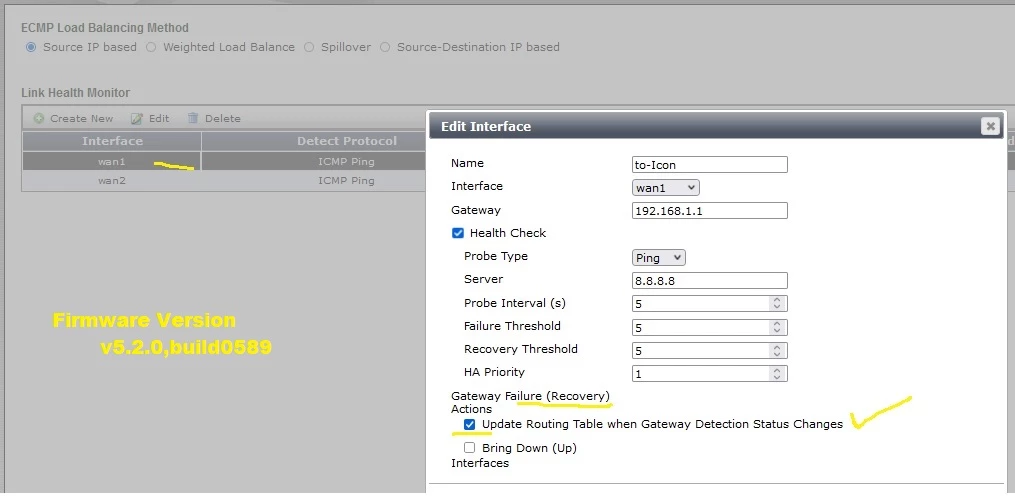

fortios v.4fortios v.5

AEK

SuperUser

Hi Eko

Can you check with command line?

config system link-monitor
  edit X
    show full    (or get)

AEK

adambomb1219

SuperUser

Wow a museum piece! This EOL device should not be connected to the internet....
