NPU is not enabled on the IPsec connection

Forum|Forum|7 months ago
February 3, 2026
6 replies
509 views

Hello Everyone,
I have a Fortios 7.6.4 Fortigate60F device. Even though I enabled the policy and IPsec NPU offloading settings for my IPsec connection, it shows npu_flag=00. Could this be related to the policy rules or the IPsec encryption algorithm?

If you could help me,

Best answer by funkylicious

certain authentication/encryption/dh combinations could lead to traffic not being offloaded to npu.

can you share what you are using ?

funkyliciousAnswer

SuperUser

certain authentication/encryption/dh combinations could lead to traffic not being offloaded to npu.

can you share what you are using ?

"jack of all trades, master of none"

MahmutKaraliAuthor

Explorer

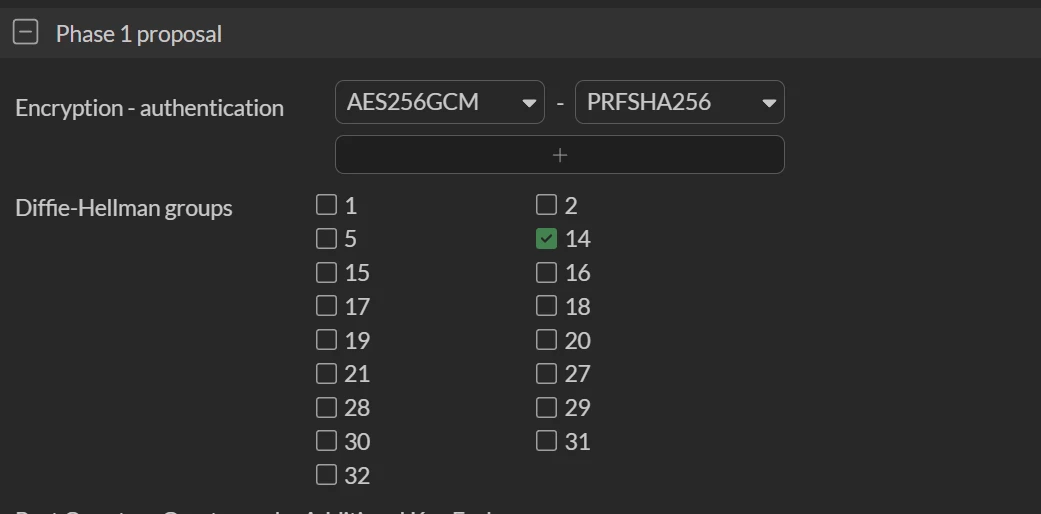

Ekran görüntüsü 2026-02-03 183501.png

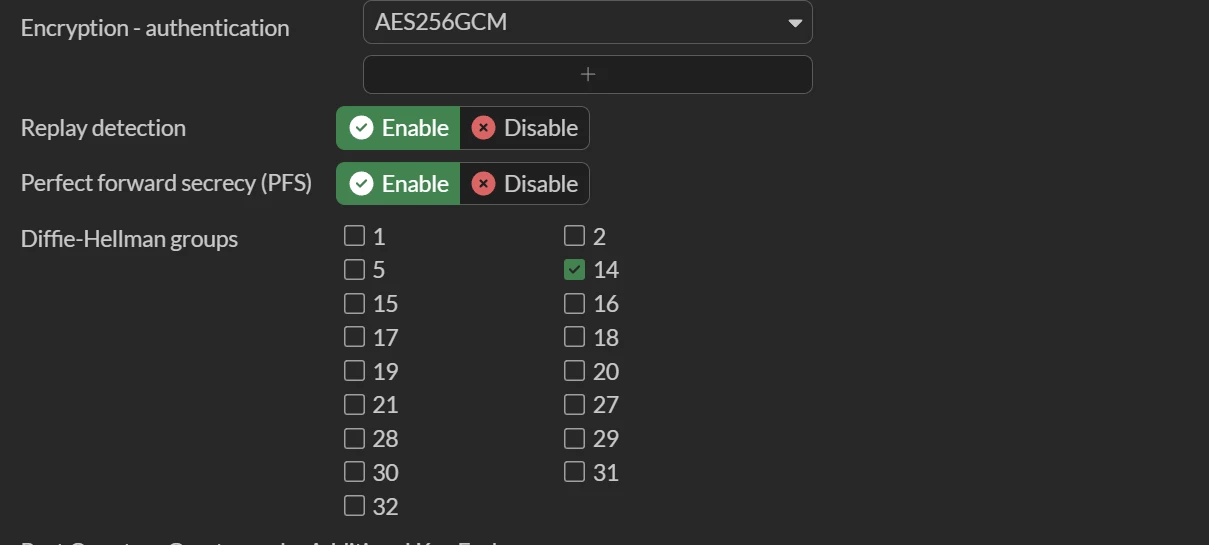

VPN encryption and my DH group

SuperUser

i would try and set aes256/sha256/dh14 and see if something changes.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Ensuring-IPsec-traffic-is-offloaded-for-improved/ta-p/193493#:~:text=The%20following-,CLI,-Commands%20can%20be

"jack of all trades, master of none"

MahmutKaraliAuthor

Explorer

I'll change the DH group and encryption algorithms and try it myself.
I'll let you know.

MahmutKaraliAuthor

Explorer

Unfortunately, it doesn't disappear. The NPU doesn't kick in. I need to make this setting for my IPSec performance.

SuperUser

i would look next into the firewall rule and security profiles attach to it - if any, maybe thats why it isnt offloaded
