New Member

Solved

Not Equal Results between Dataset and Report Chart

Forum|Forum|9 years ago
December 8, 2016
4 replies
27032 views

Hello,

I have a FAZ-VM running on 5.2.7. I have a problem with the different output when I test the dataset and when I generate the report.

I issued the following commands but the results are the same: # diagnose sql remove hcache All hcache tables will be erased! Do you want to continue? (y/n)y Done.

# diagnose sql remove query-cache Done.

# diagnose sql remove tmp-table Done.

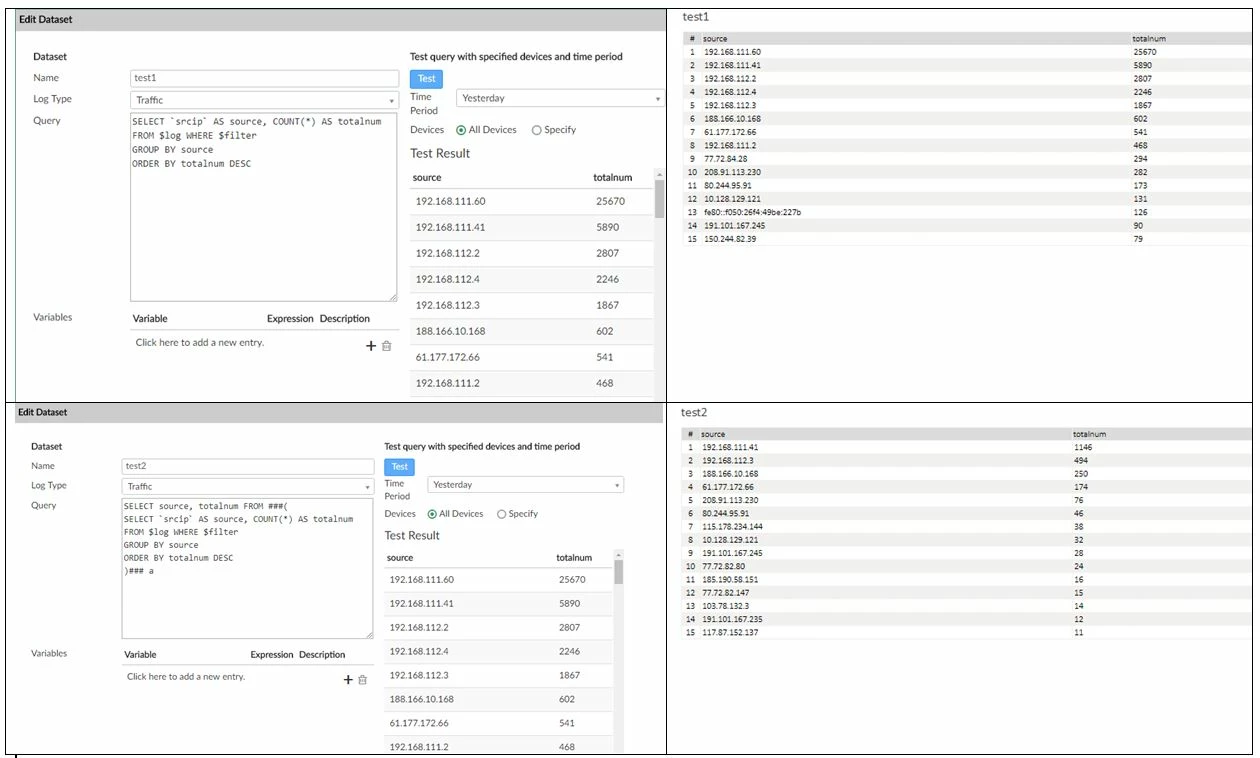

What I get is attached.

Is it a bug or I missed something?


Best answer by hzhao_FTNT

Report "last 7 days" doesn't include today's logs. Because $filter will automatically add device and time filter to your query, please make sure you have correctly set time period in report settings. You can use Today/This Week/This Month/This Year or Custom Period.

hzhao_FTNT

Staff

Hi AtiT,

As you know, report is generated by merging many hcache tables, but dataset test console not. All datasets in report must follow certain rules. Could you share your dataset?

Thanks,

hz

AtiTAuthor

New Member

Hello hzhao,

This is the dataset for the Event log type:

SELECT wtime, COUNT(*) AS clients FROM ( SELECT t1.time AS wtime, t1.source AS wsrce, smac AS wsmac FROM ( (SELECT TO_CHAR(TO_TIMESTAMP(`itime`)::timestamp, 'YYYY-MM-DD') AS time, IPSTR(`srcip`) AS source, COUNT(*) AS totalnum FROM $log WHERE $filter AND `action`='disclaimer' AND `logdesc`='Disclaimer accepted' AND `status`='success' AND IPSTR(`srcip`)!='0.0.0.0' AND NULLIFNA(IPSTR(`srcip`)) IS NOT NULL GROUP BY time, source ORDER BY time ASC ) AS t1 INNER JOIN (SELECT TO_CHAR(TO_TIMESTAMP(`itime`)::timestamp, 'YYYY-MM-DD') AS time, IPSTR(`srcip`) AS source, `stamac` AS smac, COUNT(*) AS totalnum FROM $log WHERE $filter AND `subtype`='wireless' AND `action`='client-ip-detected' AND IPSTR(`srcip`)!='0.0.0.0' AND NULLIFNA(IPSTR(`srcip`)) IS NOT NULL GROUP BY time, source, smac ORDER BY time ASC ) AS t2 ON t1.source=t2.source ) GROUP BY wtime, wsrce, wsmac ORDER BY wtime ASC ) AS x GROUP BY wtime ORDER BY wtime ASC

hzhao_FTNT

Staff

Hi AtiT,

You have to put ### for inner queries:

###(...)### AS t1 INNER JOIN ###(...)### AS t2

regards,

hz

AtiTAuthor

New Member

Hello,

I have a problem with the cached results again. I have a different results for two simple queries. Can anyone test it and say what is wrong or why the report has different output?

Shouldn't be the same?

===== test1 =====

SELECT `srcip` AS source, COUNT(*) AS totalnum FROM $log WHERE $filter GROUP BY source ORDER BY totalnum DESC

===== test2 =====

SELECT source, totalnum FROM ###( SELECT `srcip` AS source, COUNT(*) AS totalnum FROM $log WHERE $filter GROUP BY source ORDER BY totalnum DESC )### a

Tested on FAZ 5.4.3 and FAZ 5.6.0.


hzhao_FTNT

Staff

Hi there,

Test1 looks good to me, but it seems you missed an aggregation function in test2, so the totalnum will be only from one log table.

SELECT source, sum(totalnum) as totalnum FROM ###( SELECT `srcip` AS source, COUNT(*) AS totalnum FROM $log WHERE $filter GROUP BY source ORDER BY totalnum DESC )### a group by source order by totalnum desc

regards,

Huai zhao

AtiTAuthor

New Member

Hello,

Yes, that's look good for me. Thank you!

I just do not understand why I should do the sum() on the totalnum column as I have the results from the previous SELECT 'table a' and I do a SELECT on this result. The table exists just another select to show all entries from that table.

In other words -> show me the same as previous select = show me the results of table 'a' = show me the same results as test1.

Probably it will be some internal information that is related to caching and not publishable, I just want to understand how things work and why I am doing something...

AtiTAuthor

New Member

Hello hzhao_FTNT

Now it is clear for me.

Thank you very much!

shaneboy

New Member

Hi, I found this thread and I wanna know if you can help me. I need to do a dataset for a report where show this fields:

app | sum(bandwidth) of today | average of sum(bandwidth) of the last N days

my query is this one:

[code lang=sql]select t1.app,(sum(coalesce(t1.sentbyte, 0)+coalesce(t1.rcvdbyte, 0)))/$days_num as bandwidth_historico,t2.bandwidth_hoy

from $log t1 inner join

###(select app,sum(coalesce(sentbyte, 0)+coalesce(rcvdbyte, 0)) as bandwidth_hoy

from $log where $filter and (logflag&1>0) and
nullifna(app) is not null and to_timestamp(itime)::date >= current_date

group by app having sum(coalesce(sentbyte, 0)+coalesce(rcvdbyte, 0))>0 order by bandwidth_hoy desc
)### as t2 on t1.app=t2.app
where $filter and (logflag&1>0) and
nullifna(t1.app) is not null group by t1.app,t2.bandwidth_hoy having sum(coalesce(t1.sentbyte, 0)+coalesce(t1.rcvdbyte, 0))>0

order by bandwidth_hoy desc

So, the first column would be for the app, the second will be the sum of the bandwidth and then it will be divided by the number of days selected in the $filter, and the third will be the bandwidth of the present day. And then we Join that fields with a subquery where it is indicated that it will select today's records exclusively.

And it works on the dataset section. It looks like the right table below. It works, I checked the results of the third column with another dataset that I made to see if the data was the same.

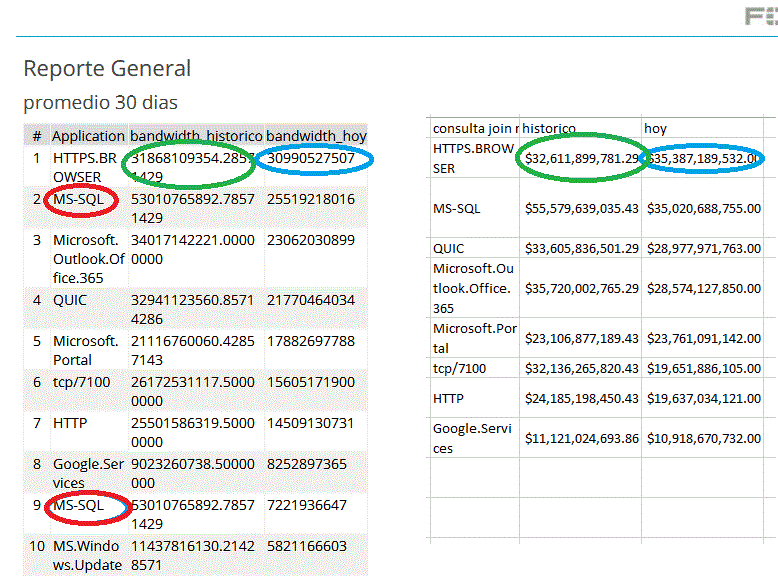

The problem ocurrs when I run the report where the chart that uses this query, it shows the same app more than once in some cases (red oval). And it's not even the same info although is the same query with the same time parameters (blue and green ovals). The right one is the correct one.

And I'm not sure is there's something wrong or that it could improve on my query to show the correct data on the report. Or maybe do I have to do something like the example above? something like:

[code lang=sql]select field1,field2 from ###( select...) ### as t1 inner join ###(select...)### as t2

on t1.app = t2.app

I hope you could help me.

Regards.

Sin título.gif

hzhao_FTNT

Staff

Hi shaneboy,

Because of the hcache, do not join $log with other tables.

Try below query:

select app, sum(case when dom=to_char(now(), 'YYYY-MM-DD') then bandwidth else 0 end) as today_bandwidth, cast(sum(bandwidth)/count(distinct dom) as decimal(18,0)) as avg_bandwidth from ###(select app, $DAY_OF_MONTH as dom, sum(coalesce(sentbyte, 0)+coalesce(rcvdbyte, 0)) as bandwidth from $log where $filter and (logflag&1>0) group by app, dom order by bandwidth desc)### t group by app order by avg_bandwidth desc

Regards,

hz

shaneboy

New Member

Thanks hzhao_FTNT,

Your query really helped me but it seems that's not working properly when the "today_bandwidth" comes. The result is always 0, the "avg_bandwidth" works fine. When I choose "today" as the time period it does work on both columns, but if I choose another time period like "7 days", "last N days" or anyone else. It shows 0 :\

I thought it was because of the condition on the "Case" condition. It compares the function now() casted to char versus $DAY_OF_MONTH but the now() function shows date like this:

2019-11-08

and $DAY_OF_MONTH shows just the number of the day, so it would be comparing something like this "2019-11-08" = 5.

I made a few changes to your query to compare the current date with a field and now it is like this:

[code lang=sql]select app, sum(case when dom>=current_date then bandwidth else 0 end) as today_bandwidth,

cast(sum(bandwidth)/$days_num as decimal(18,0)) as avg_bandwidth

from ###(select app, from_itime(itime)::date as dom, sum(coalesce(sentbyte, 0)+coalesce(rcvdbyte, 0))

as bandwidth from $log where $filter and (logflag&1>0)

group by app, dom order by bandwidth desc)###

t group by app order by avg_bandwidth desc

But it's not working neither on the today_bandwidth, the avg one works fine. Any ideas of why is not working? I'm kinda out of ideas.

Regards.
