New FortiGate Setup - Creating Firewall Policies

  • January 15, 2025
  • 3 replies
  • 1653 views

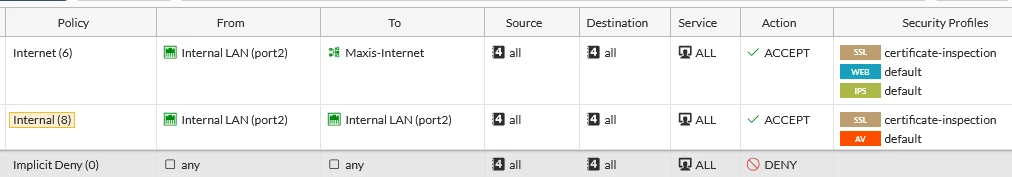

I have a FortiGate 101F that I just set up and I created a few policies like in the image below.

Everything is working but can someone check if I've done it right.



Internal LAN, is out network switch/Access point, Maxis-Internet is or internet line.



Have I done the security profiles correctly?

We're not subscribed to AntiVirus, so that's why its not in Internet policy, but somehow there's a basic one for Internal.

Screenshot 2025-01-15 151201.png

3 replies

AEK
SuperUser
SuperUser
January 15, 2025

You may add application control profile to deny unwanted applications.

AEK
IronMan
IronManAuthor
Explorer
January 15, 2025

I'll do that too.

But the firewall configuration part is done right? As in my current setup will prevent attacks to the network?

AEK
SuperUser
SuperUser
January 15, 2025

With this initial config you have covered a large part of the attack surface.

Other extra tuning may be done (like deep inspection) to block more attacks.

AEK
sw2090
SuperUser
SuperUser
January 15, 2025

your second policy will never be hit because traffic from port2 to port2 is within one subnet and will not hit the firewall.

vbandha
Staff
Staff
January 15, 2025

Hello @IronMan

You can also setup IPv4 DOS policy to protect against DOS attacks to your network:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-configure-IPv4-DOS-policy/ta-p/189653



Regards,

Varun
