Need help with VLAN setup on 40F

Forum|Forum|3 years ago
December 23, 2022
18 replies
17675 views

Hi All,

I am a Fortigate newbie and need some help. I have a 40F unit running FortiOS 6.4.10 and am trying to set up multiple VLANs on an 802.3ad aggregate interface consisting of physical ports 2 and 3. It is for internal use on my home LAN. Here’s what I’ve done so far:

Delete the Hardware Switch bonding ports 1-3 together (default configuration from Fortinet).
Set up port 1 as a dedicated Admin port on network 192.168.10.1/255.255.255.0 and running a DHCP server doling out IP addresses from x.2 to x.254.
Set up an aggregate 802.3ad interface consisting of ports 2 and 3 on network 192.168.5.1/255.255.255.0 and running a DHCP server doling out IP addresses from x.2 to x.254.
Set up multiple VLANs on the 802.3ad interface each with its own subnet and DHCP server and device detection enabled for MAC filtering.

I am trying to follow the guide on the Forti-OS-6.4.10-Administration.pdf guide starting on page 403 and stopped short of adding firewall addresses or security policies. I thought the DHCP servers should work and hand out IP addresses regardless of whether the firewall and security policies were set up. I tried to test this with both a PC and a Macbook using a physical RJ45 connection on port 2, but can’t get any IP addresses from the Fortigate. I have tried it with and without MAC detection and nothing seems to work.

Ultimately what I want to do is assign a reserved IP for each device on my network (by MAC address) grouping each type of device into its own VLAN (entertainment, PCs, servers, security, etc.) and controlling traffic so that the IOT type devices are on VLANs that can’t traverse my network and get to the server or other PCs but can only go to the internet.

I don’t know why I can’t get the DHCP servers to work. Any help or debug tips would be appreciated.

Thanks,

Chris

FortiGate

Toshi_Esumi

SuperUser

If you aggregated two interfaces together, the other ends need to be terminated at a switch, or stacked switches, in the same form and break out vlans to different ports. Your PCs can be connected to those ports that the non-tagged (or VLAN1 for many switches) traffic is mapped to.

Toshi

Mohamed_Gaber

Explorer III

When you configure link aggregation you have to connect the ports either to one switch or stacked switches(or supporting alike protocol). If you configure VLANs on this aggregated link, you will have tagged traffic for the VLANs and untagged traffic also on the interface. You have to do a similar configuration on the switch. Configure link aggregation with trunk configuration. Check if the link aggregation is established. Test the configuration first without link aggregation to test the concept then change to link aggregation. You could test also first by conecting only one of the aggregated ports.

chrisn7599Author

New Member

Hi Toshi and Mohamed,

Thank you for your response. However, I’m not following what you are saying.

Today I tried deleting all of the VLANs from the Port-2-3 Aggregate interface, then I tried to see if I could create a Hardware Switch which would sit on the aggregate interface. This was the only thing I could relate to the comment saying “When you configure link aggregation you have to connect the ports either to one switch or stacked switches”. However, the only physical interface it would let me add to the Hardware Switch was the WAN port. Besides, I thought the 802.3ad Aggregate interface and the Hardware Switch were mutually exclusive interfaces.

I only have the one Fortigate 40F unit, so I’m not sure what you mean by connecting (terminating) to one switch or stacked switches. Do you mean a switch external to the 40F or something internal? Internally, the only physical ports I have are Port 1 (already dedicated as an Admin interface), Ports 2-3 (want to bind together so that it doesn’t matter which one I plug into, I can access multiple VLANs on the aggregate), Port A, and the WAN Port.

I thought I “should” be able to set up Ports 2-3 as an 802.3ad Aggregate interface, then set up multiple VLAN subnets on that interface. Even a tech I talked to in Fortigate support said that should work and even guided me toward using the 802.3ad interface as he said you can’t set up VLANs on a Hardware Switch.

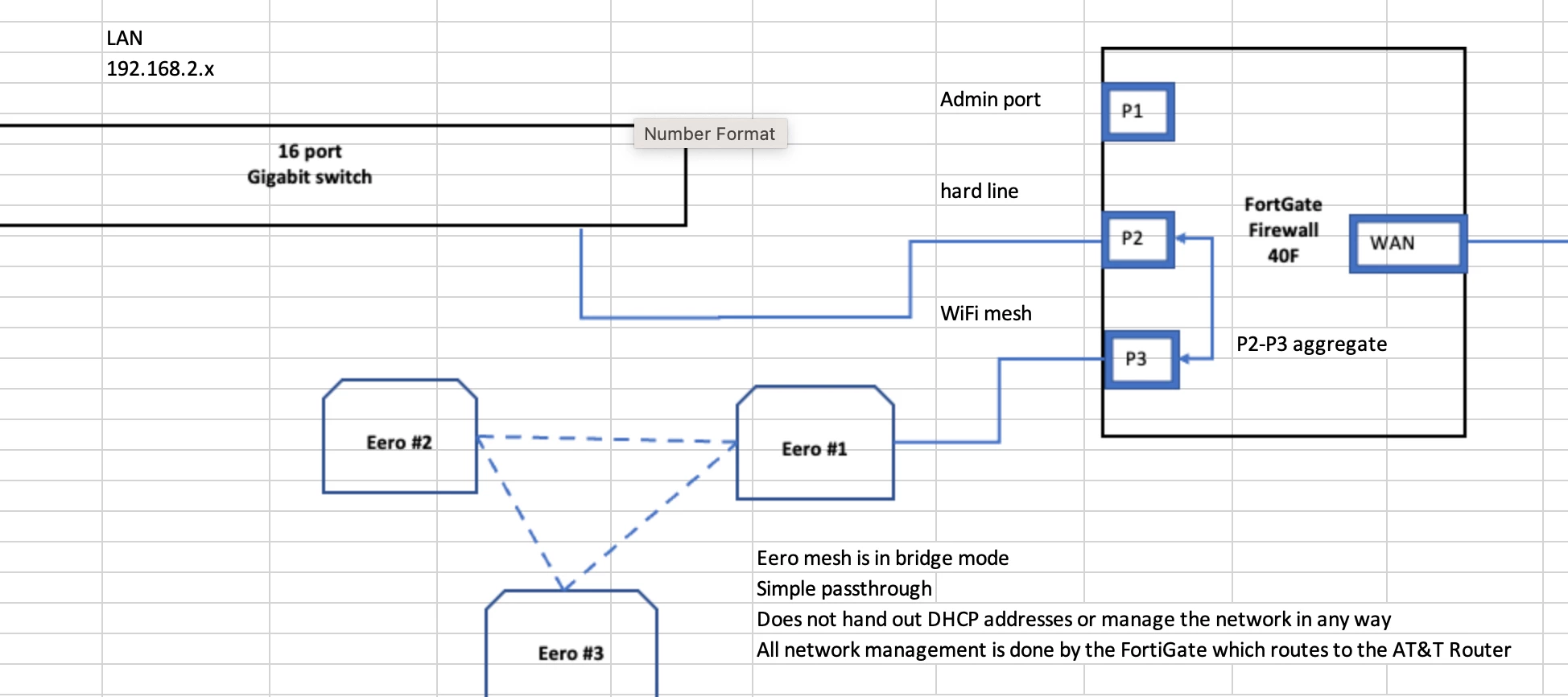

I've attached a basic network layout of my LAN below.

Can you provide any more guidance?

Thanks,

Chris

Mohamed_Gaber

Explorer III

Very good explanation. If you send the FortiGate configuration it is better for me. The solution is more simple and there is no need for Link Aggregation. Just configure IP addresses on the interfaces. Don't put the WAN with the LAN ports. They should be separated. If you need WiFi (Ero) to be in a different IP subnet configure an IP on Port-3. If the 16-Port Gigabit Switch is managed and you could configure VLANs and VLAN interfaces on it. Do the setup as this.

Toshi_Esumi

SuperUser

The IEEE802.3ad is a link aggregation protocol to make multiple physical links into one link to provide redundancy and increasing bandwidth on the link.

https://techbast.com/2021/03/fortigate-how-to-configure-802-3ad-aggregate-feature-on-firewall-fortigate.html

One side of link is like the FortiGate, and the other side is generally a switch.

But your intended setup is more like for FortiGate's hard-switch, bridging/binding two ports together at L2 level and have all VLANs on both ports.

Why going back to "lan" hard-switch interface and removing only port1 from the interface and leaving port2 and port3 as memebers wouln't work?

Toshi

Mohamed_Gaber

Explorer III

config system interface
edit "port1"
set ip 192.168.10.1 255.255.255.0
set allowaccess ping https ssh snmp
next
edit "port2"
set ip 192.168.5.1 255.255.255.0
next
end
config system dhcp server
edit 1
set dns-service default
set default-gateway 192.168.10.1
set netmask 255.255.255.0
set interface "port1"
config ip-range
edit 1
set start-ip 192.168.10.2
set end-ip 192.168.10.254
next
end
next
end

Mohamed_Gaber

Explorer III

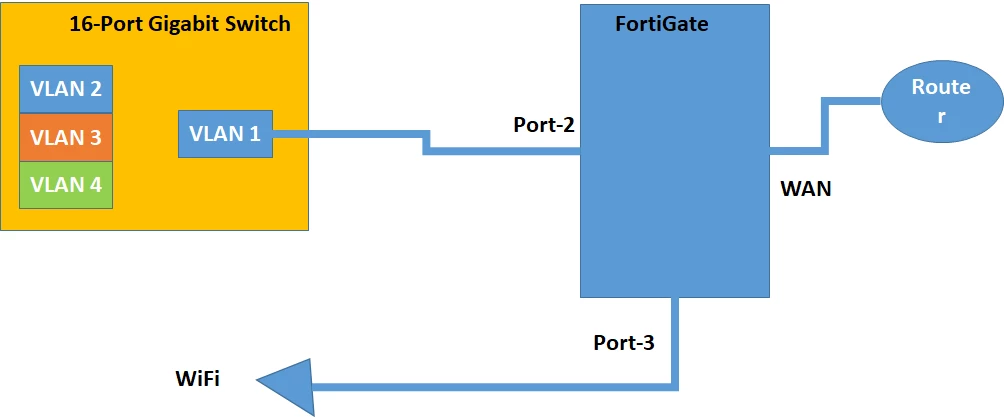

In previous solution the 16-Port Switch should be L3 switch supporting routing and you may need to run DHCP on it for various VLANs.

This solution is better.

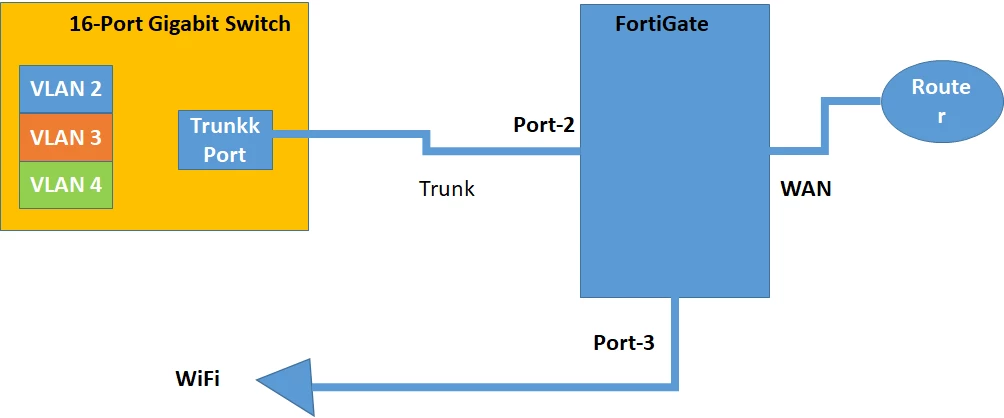

You configure the trunk port between FortiGate and the 16-Port switch. If on VLAN, then just give an IP to port-2 and connect it to the switch.

sw2090

SuperUser

That's the best way to do it with aggregation. You wrote you wanted to have some ports that are alle the same and it doesn't matter to which of them you connect.

Indeed you can do that with a virtual switch on your FGT. This is even the FGT factory default.

You could have kept that switch there and just add vlan interfaces to it.

However in this case you either have to have a manged swtich behind the FGT or the devices you connect to the port(s) have to tag to correct vlan. That is because only tagged traffic will hit the correct vlan interface on the FGT and any other traffic might hit the physical interface instead.

chrisn7599Author

New Member

Thanks all. If it is correct that the traffic must be tagged BEFORE it hits the Fortigate ports in order for the Fortigate to route it appropriately, then I misunderstood how the Fortigate would handle VLANs. I thought I could have non-tagged traffic coming into the Fortigate ports and then using device detection, get the sender’s MAC and assign an IP address to it based on that MAC, whose IP would be in a VLAN of my choosing. For example… I have two printers, one plugged into the switch and the other on the WiFi. Based on their MACs I wanted to be able to assign them via IP Reservation, an IP address that is in the Printer VLAN and assign firewall policies accordingly.

Unfortunately, my switch is cheap, unintelligent, and unmanaged (unmanageable).

Here is my exact use case that I’m trying to solve, given the diagram I posted earlier. I have multiple devices in various categories (servers, PCs, printers, security devices, TVs, etc.) some of which are physically attached to the 16-port switch and others that come in over the WiFi mesh. With the exception of the occasional guest devices, I want to know every node/device on my network, its MAC (which I do already know), and make sure the IOT devices (security devices, TVs, etc.) can’t traverse my network and get to the server or the printers. I also want to be able to log traffic and watch for intrusions coming in from the WAN side.

If it is a guest whose MAC I do not recognize, I want to dump them into a Guest VLAN that can only reach the internet, not the LAN.

What is the best way to set up this network? I thought it would be too painful setting up rules for every single device. Instead, I thought that grouping them into VLANs would make setting up firewall policies more straightforward, i.e. just a few groups as opposed to a rule for each of the many devices. Can the Fortigate identify the MAC of any device connected to the Hardware Switch or Aggregate interface (ports 2 and 3), assign an IP that belongs to a particular VLAN, and then route traffic accordingly? If not, what are my other options?

Thanks again for your patience. I’m a complete Fortigate newbie!

Chris

Mohamed_Gaber

Explorer III

I agree with the soft switch solution. I was thinking about it but I don't remember the difference between it and the hardware switch..

Mohamed_Gaber

Explorer III

Are you connecting a WiFi access Point to Port-3? Does it support tagged traffic?
Let's split the discussion for WiFi and wired.

For wired on Port-2 you could ide secondary IP.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-can-create-max-32-secondary-IP-address/ta-p/230121#:~:text=the%20cloud%20environment.-,A%20maximum%20of%2032%20secondary%20IP,be%20created%20for%20each%20interface.

For the WiFi link, I believe you could do the same. Or use tagged traffic if the AP supports this. You have to configure different SSID and map them to the different VLANs.

Mohamed_Gaber

Explorer III

I got the datasheet for 40F and found that it has built-in WiFi. Is this the case?

Toshi_Esumi

SuperUser

The datasheet includes both FortiGate 40F and FortiWiFi 40F. Only FortiWiFi has wifi.

sw2090

SuperUser

well you have to keep in mind that the FortiGate threats a vlan as a virtual interface. This means that only traffic with the corresponding vlan tag will hit that interface. So a DHCP server on a vlan interface will only respond to traffic tagged with that vlan because only that one hits the interface. All other traffic will hit the physical interface the vlan interface is "tied" to.

So if you had this constellation:

Port1,Port2,POrt3 is a virtual switch named "switch1".

Then you create vlan 1 named "printer" and vlan 2 named "wifi" then vlan 1 and 2 are virtual interfaces bound to "physical" interface "switch1".

Traffic tagged with vlan1 will then hit interface "printer". Traffic tagged with vlan2 will then hit "wifi". Traffic that has neiter one of both vids will hit "switch1".

Since DHCP is UDP traffic the ip routing doesn't matter for it but the vlan id does. So if the traffic is not tagged with 1 or 2 (to stay with my example) it will get a dhcp response from a dhcp server on interface "switch1" (if there is one enabled there). So you might use that to assign an ip you want based on the mac but to route traffic from/to devices correctly you still need to have your traffic tagged with the corred vid.

sw2090

SuperUser

hence unfortunately only few devices are capable of vlan tagging themselves a managed switch is rather mandatory (at least if the FGT doesn't have enough physical ports or clients are too far away from it (ethernet segment lenght is max. 100m)) if you want to use vlans because managed switch can do vlan tagging/trunking per port so the device connected to it doesn't have to do it itself.

chrisn7599Author

New Member

Hi Toshi, Gaber, and sw2090,

First off, I only have the 40F without the WiFi.

But, things are starting to make more sense now. I do not have anything capable of tagging packets with a particular VLAN ID before the traffic hits the Fortigate unit. The 16-port switch is dumb and the eero WiFi mesh is too. I disabled all of the smarts in the eero and just use it as a radio beacon. Even in smart mode, the eero I have doesn’t support VLAN tagging. The 16-port switch uplink is attached to Port 2 on the Fortigate and the eero WiFi mesh is attached to Port 3 on the Fortigate. I have Port 1 dedicated as an Admin port.

Let me press this further. If I were to have Ports 2 and 3 set up as a Virtual Switch (I think this is the same as a Hardware Switch – default FG configuration) and run a DHCP server on that, I should be able to assign IP addresses by MAC and still at least have like devices grouped into particular address ranges (servers, TVs, PCs, etc.) and dump unknown MACs into a guest IP address range.

If I do that, what is the best way to set up firewall policies for each address range? Is it possible to still set up the VLANs on the Virtual Switch and route traffic from the Virtual Switch to each particular VLAN based on IP range and then set up firewall policies for each VLAN? Or is this completely non-sensical and a bad thing to do?

Thanks,

Chris

gfleming

Staff

As others have already pointed out if you have a "dumb" unmanaged L2 switch there is nothing you can do at this point to segregate your internal network. VLANs will not work. Nor will LAG or aggregate ports, which given your topology and use case you very likely do not need. This is not a FortiGate thing—this is fundamental networking.

You can only have on link connected between your FGT and the Switch or else you will be at risk of switching loops. Since your switch only knows about one broadcast domain it will forward STP everywhere out every connected port—assuming it does STP and I would assume it does at the very least. If not you will definitely get broadcast storms if you try connecting two ports.

This precludes your idea of using port 2 and 3 with different DHCP scopes on them. Because you have no control where the DHCP broadcasts will go. Even if you use L3 interfaces on not switches interfaces to avoid broadcast storms, you still have no control where the switch will send the broadcasts or which port on the FortiGate will receive them. You'll just end up with a random mix of IP allocations.

So you need a switch that supports VLANs to do what you want to do.
