Need Help: FortiGate Port1 DHCP Issue
Hey everyone,

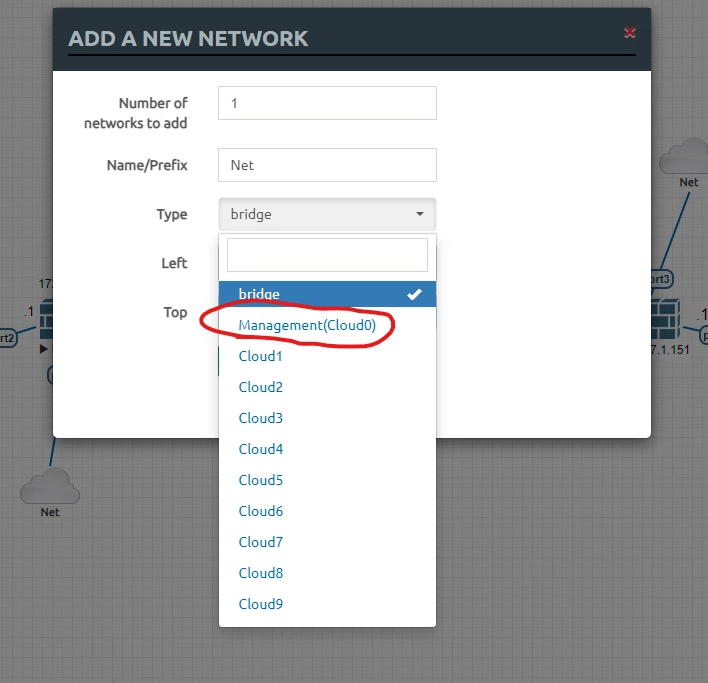

I'm experiencing a strange issue with my firewall in EVE-NG, and I'm hoping someone here might be able to offer some insight or assistance. The firewall 'port1' is connected to the Net (bridge). With this, I also cannot access the GUI.
Issue:
The port1 interface on my FortiGate firewall is configured for DHCP, but it's not obtaining an IP address. When I check the interface status using the command sh sys int port1, it shows the IP address as 0.0.0.0, which indicates that it hasn't received an IP address from the DHCP server. Additionally, the interface status is shown as "up disable," which seems contradictory.
Details:
Interface: port1
Configuration: DHCP
IP Address: 0.0.0.0
Status: Up, Disable
Type: Physical
Troubleshooting Steps Taken:
Tried pinging EVENG IP to CMD, successful. Except, in the firewall CLI.
Tried disabling and re-enabling the port1 interface.
Checked for any firewall policies blocking DHCP traffic.
Verified network connectivity between the FortiGate firewall and DHCP server.
Additional Information:
Model: FortiGate 50E
Firmware Version: I tried in v7.4, 7.2 & 7.0, all with the same issue
Configuration:
edit "port1"
set vdom "root"
set mode dhcp
set allowaccess ping https ssh http fgfm
set type physical
set snmp-index 2
next
I'm at a loss as to why the port1 interface is not obtaining an IP address via DHCP. Any suggestions or insights would be greatly appreciated.
Thanks in advance!
