Nat on FortiGate 60F

  • July 29, 2024
  • 1 reply
  • 3597 views

Hi

I tried several times reading about how NAT works in Fortigate, but it doesnt work.

FortiGate 60F, firmware 7.2.8 build 1693.

I found many guides using "IPv4 policy", but this is not present in my "Policy & Objects" menu, I think maybe different firmware.

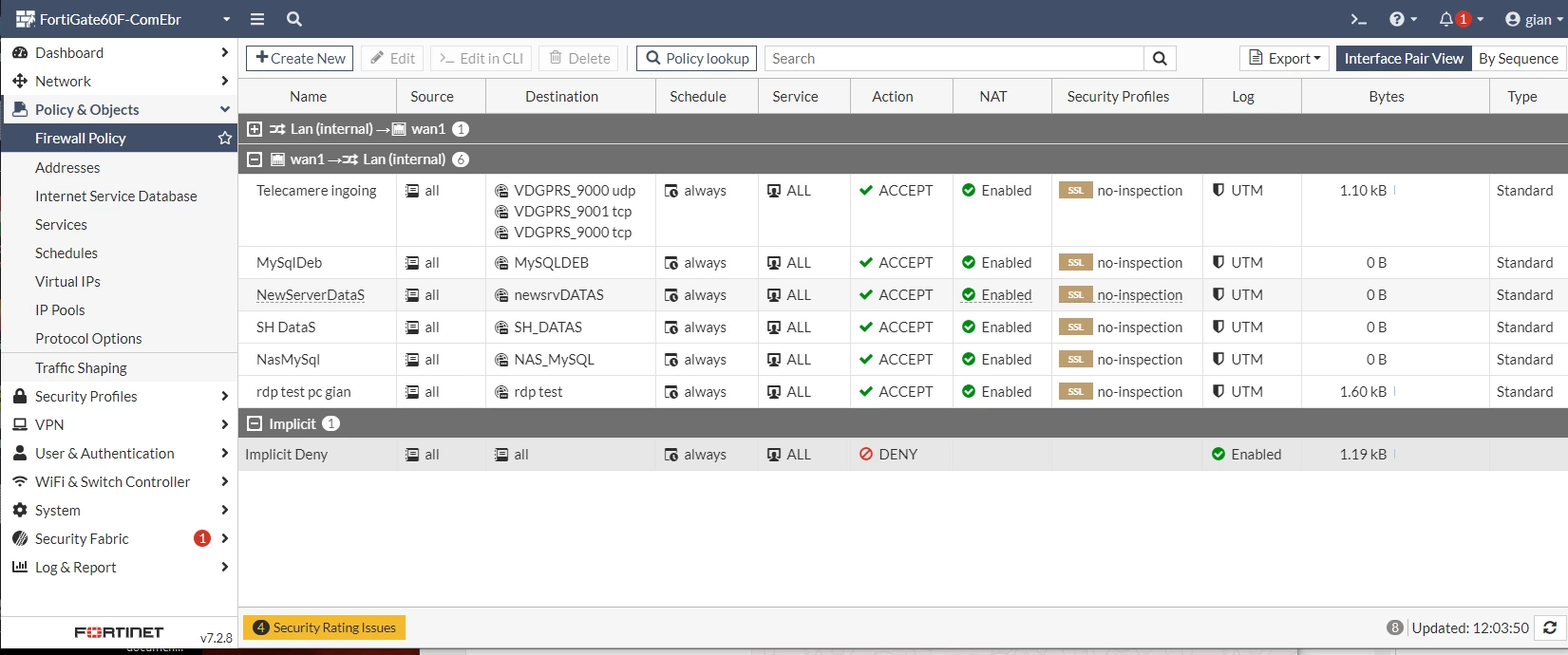

So I create Virtual IPs I need, then I create firewall policies from wan to virtual ip.

But it doesn'n works, i presume i made something wrong o I didn't do at all something that is necessary.

I am new in FortiGate, coming from other manifacturer products, any help is welcome.



Edit: I add some informations may help:

System is in NAT mode.

Gateway is a modem/router Fritz, and Fortigate is in DMZ on it.

Activating https admin on wan interface, it is reachable from internet.








Best answer by AEK

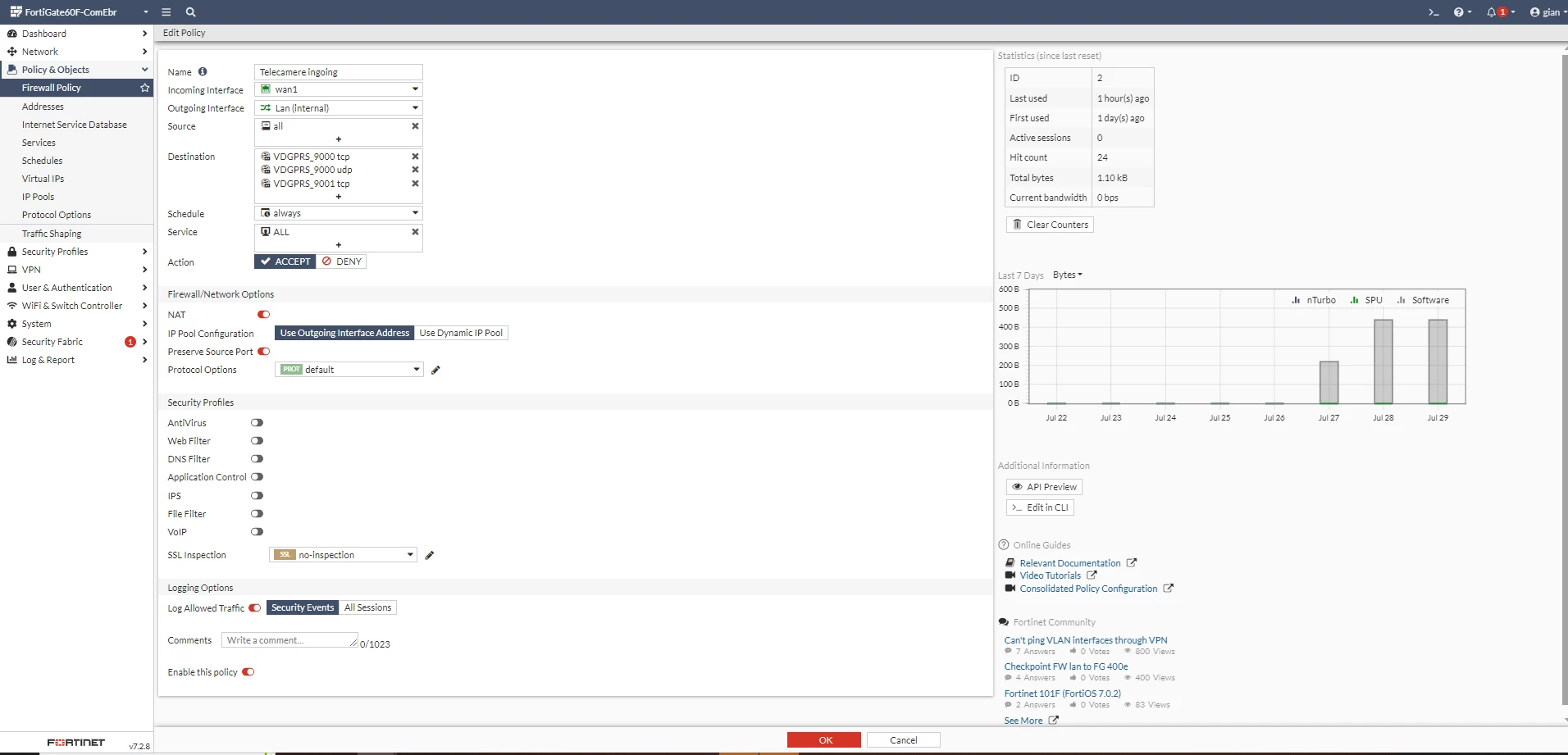

In your firewall rule you should disable NAT.

1 reply

AEK
SuperUser
SuperUser
July 29, 2024

Hi

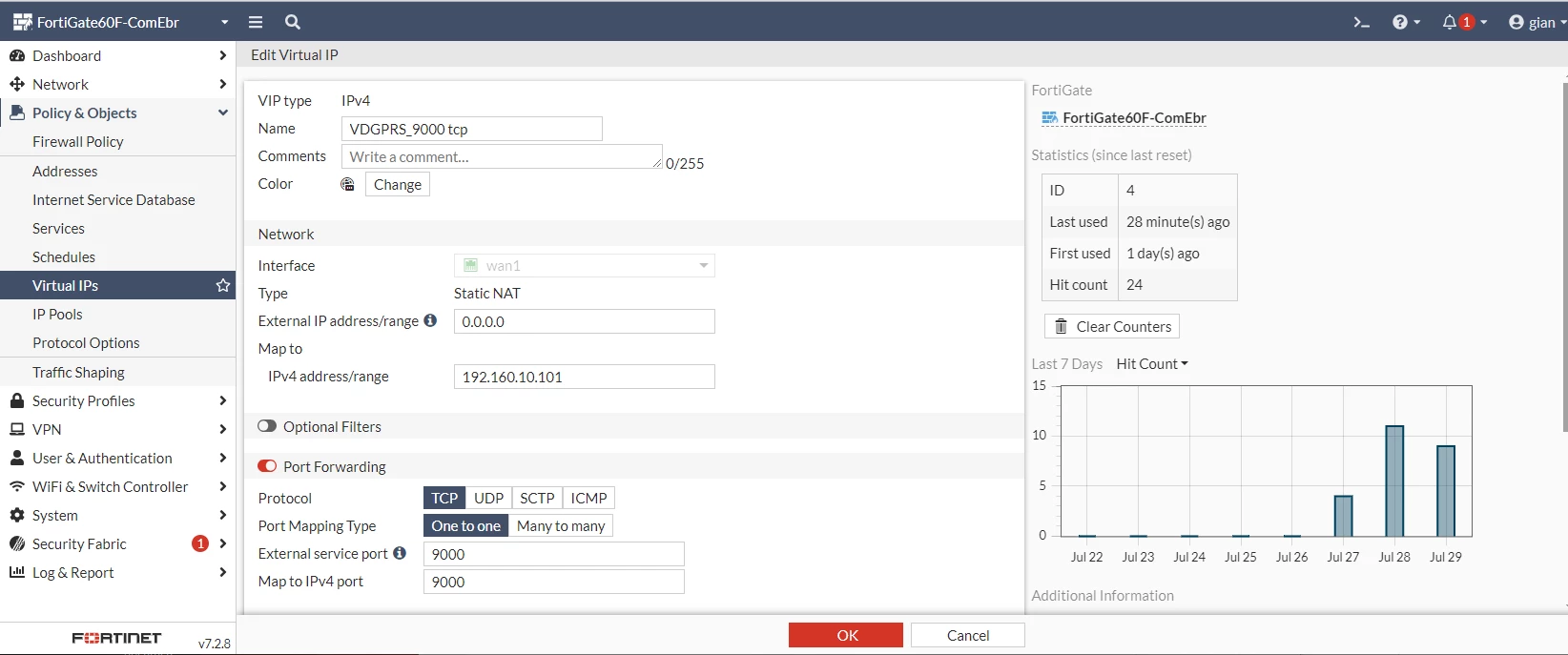

In your VIP, try put the actual WAN IP instead of 0.0.0.0.

AEK
gianlucats
Explorer III
July 29, 2024

Thank you.

Tryed

Doesn't work.
