Multiple sources and destinations?

  • November 15, 2013
  • 3 replies
  • 7090 views
When hammering out the config file for the FortiGate 1000C that I' m working on, some interesting questions came up. Many of the rules I' m writing are bi-directional between two addresses or address groups. When writing a single policy, is it possible to: 1.) Specify multiple srcaddrs?
set srcaddr srcaddr1 srcaddr2 ... srcaddrN
2.) Specify multiple dstaddrs?
set dstaddr dstaddr1 dstaddr2 ... dstaddrN
3.) Specify multiple services?
set service service1 service2 ... serviceN
4.) Specify multiple interfaces?
set srcintf srcintf1 srcintf2 ... srcintfN
set dstintf dstintf1 dstintf2 ... dstintfN
If not, I would simply have to copy-pasta the rules and swap some stuff around in order to allow reverse traffic. Not a big deal with some shell magic, but still a little painful.

    3 replies

    Jordan_Thompson_FTNT
    Staff
    Jordan_Thompson_FTNT
    Staff
    November 15, 2013
    1, 2 and 3 are possible in most releases. 4 (multiple interfaces) is possible only in FortiOS 5.0.3 and newer.
    emnoc
    emnoc
    New Member
    November 16, 2013

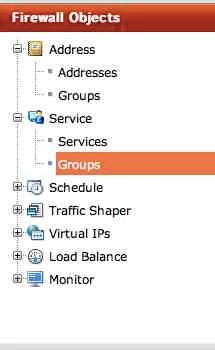

    For multiple address you want to look at the firewall address groups For services, you can look at service groups
    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    November 16, 2013
    #4 is possible in quite every release of FortiOS, via zones. A zone is a container for interfaces which can be used like a standard interface. But there might be restrictions if you have to use an interface as such in policy A and as part of a zone in policy B. Apart from that, are you sure that you have to have reverse policies for each and every policy? A policy does not allow traffic flow but session setup. A session includes the initial request and the reply traffic. In projects I usually encounter reverse policies only between HQ and branch offices (via VPN tunnel) so that each side can open the tunnel. And that' s not even the rule but the exception.
