Multiple L2TP/IPsec VPN Servers in the same WAN

16 replies
6702 views

Hello team!!!

I hope you are fine!!

We have here, 2 kind of VPN users trying to access different resources on different VLANs (Behind the same Fortigate), we need, for example, the following:

* User Group 1: Can access LAN but not DMZ

* User Group 2: Can access DMZ but not LAN

We have 3 WANs, the idea is create one VPN for each WAN.

We choose L2TP/IPsec VPN, because this dont require to install FortiClient in each Client. All the test were done with L2TP/IPsec VPN (Using the option "Windows Native" in the wizard)

What we tried in first place, is to create 2 VPNs for each WAN, one for each user group (6 VPNs), but this seems that the Fortigate, only is listenning for one VPN in each WAN.

I deleted all the VPNs and references (Including addresses)

I created again the VPNs for each WAN, just for "User Group 1"

I could connect and access the network through the VPN, everything was fine

I added the 3 VPNs for "User Group 2" (1 for each WAN)

I coud NOT connect, wrong credentials

I added the same user to "User Group 2" and I could connect (Even removing the username from "User Group 1")

When I see the Fortigate, the user was connected to the VPN for "User Group 1", but it needed credentials inside "User Group 2".

So, I am thinking another aproach

I think maybe I could set static IPs for Clients in "User Group 2", and manage permissions in Firewall Policies to choose to which LAN can access each IP range. But I dont like to set static IPs

Do you have a better idea?

Thanks in advance.

Regards,

Damián

FortiGate

sw2090

SuperUser

if you have more than one ipsec/L2tp on one wan you may have to limit each tunnel to one peer id to allow the FGT to find the correct one.

Yurisk

SuperUser

Not the answer you are looking for, sorry, but if you were to switch to the Forticlient on Windows stations (it is free for VPN), the set up would be much easier and will work without head aches:

Phase 1 Dial Up IPSec:  config vpn ipsec phase1-interface     edit "Peer2P1"         set type dynamic         set interface "port1"         set mode aggressive <-- To work behind NAT, set by default on FC         set peertype one    <-- Here I switch from any to a single peer id         set peerid "peer2"  <-- Only users with peer id of "peer2" will match         set net-device disable         set mode-cfg enable         set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1 3des-md5         set dpd on-idle         set xauthtype auto <-- Serve as xauth server         set authusrgrp "yurisk1grp" <-- user group for this tunnel         set ipv4-start-ip 192.168.102.0  <-- a different pool to assign to clients via mode-cfg         set ipv4-end-ip 192.168.102.13         set dns-mode auto         set ipv4-split-include "LAN" <-- LAN is object for local network         set save-password enable         set psksecret ENC tENRv0SYBHFggtelPP==         set dpd-retryinterval 60     next end  Phase 2: config vpn ipsec phase2-interface     edit "Peer2P2"         set phase1name "Peer2P1"         set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256     next end

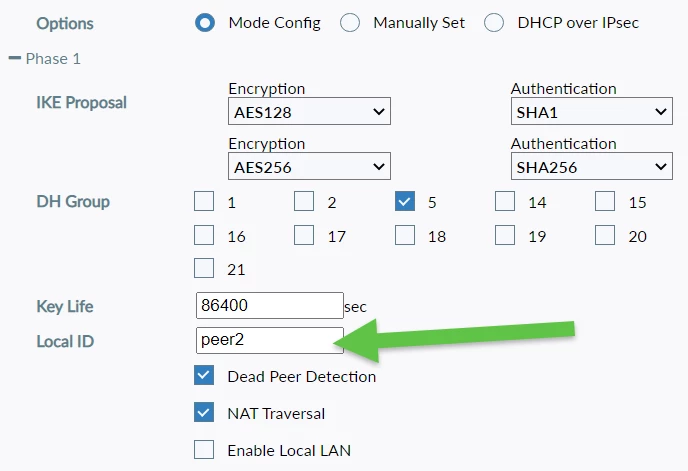

Then it is a matter of putting specific to this group ID, here it is "peer2" in the FC:

Then you create a new IPSec tunnel for the next group etc.

yurisk.info - all things Fortinet blog, no ads

damianhlozanoAuthor

Explorer II

Thanks to both!!

@sw2090 , One peer is not an option, but I understand your point

@Yurisk , we use 2 lines of powershell codes to create VPN and routes, this is the easier and fastest way. I used to use ipsec in previous versions, when L2TP VPNs does not work well with Fortigate, but when L2TP/ipsec is an option, we prefer this. Thanks anyway for your answer.

I think I will create just 1 VPN per WAN, and manage user groups in the firewall policies.

Regards,

Damián

pminarik

Staff

IIRC the group membership doesn't "propagate to the firewall policies", so you won't be able to use group-based authorization in policies for L2TP clients.
(feel free to correct me if I turn out to be wrong :) )

My personal recommendation would be to go with IKEv2 IPsec instead, modern clients support it. (including natively in Windows 10+), you'll just have to juggle the configs a bit to get something that works for everyone. :)

damianhlozanoAuthor

Explorer II

Thanks!!!

We have many Fortigates in different places, syncronizing with Active Directory and we use AD Groups or local groups (With AD users) in different firewall policies, so I think this should work.

I could try IKEv2 for next deployments, now we have a lot of clients configured with L2TP, because the previous VPN Server (Router Mikrotik) had L2TP configured

Regards,

Damián

sw2090

SuperUser

@damian

not one peer but one peer-id! On a dial up this means every peer has to send that unique peer id so the FGT can determine the correct ipsec. That does NOT limit your ipsec to just one peer!
