Multiple IPSec VPN for using zones

HI Team,

As per your requirement, you would like to configure multiple public IP in head office end and create multiple tunnels to remote end.

There by you can add different phase 2 selectors in all three tunnels.

Yes it is possible.

You are basically seperating VLAN traffic based on the tunnels.

Please correct me if i am wrong

Hi, as my colleague said, you can use single VPN with multiple phase2, but if you want to have traffic between clientA and voipB it can make it difficult because you would need all the combinations of the traffic.

You can also use single tunnel with one any/any phase2, but if you want to segment traffic to separate tunnels, then you can also do it like that.

You can configure multiple tunnels on different IP (on HQ) if you can, if you have only 1 public IP, you can configure multiple tunnels on same IP and just use localid (ikev1) or you can use network-overlay ID (ikev2).

Hi,

thanks to both for the quick reply and the tip regarding PeerID. I'll test it out over the next few weeks and then get back to you.

Regards

Patrick

Hi,

I have made now some tests.

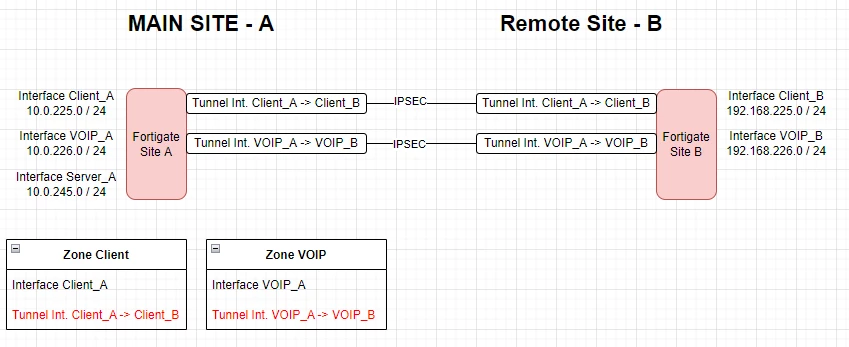

The VPN connections with different public IPs is working. The ping Client_A <-> Client_B and VOIP_A <-> VOIP_B works.

But now I have the problem that Client_B and VOIP_B also have to contact Server_A. I created a static route, but only CLIENT_B -> Server_A or VOIP_B -> Server_A works depending on the priority.

Is that even possible with "Static Route" or do I have to use "Policy Routes"? I tried that a bit, but didn't get there. Maybe someone has an idea?

Regards

Patrick

Hi,

thank you for showing me the right way. By using the policy router I can now ping SERVER_A from CLIENT_B and VOIP_B. Unfortunately, the reverse way doesn't work. SERVER_A cannot ping CLIENT_B and VOIP_B. Does the Reverse Path Check have a problem with Policy Routes?

Debug on Remote Site - B

id=20085 trace_id=1373 func=print_pkt_detail line=5664 msg="vd-root:0 received a packet(proto=1, 10.245.5.105:1->192.168.50.5:2048) from DR300_DK300. type=8, code=0, id=1, seq=15888."
id=20085 trace_id=1373 func=init_ip_session_common line=5834 msg="allocate a new session-005e1fb6"
id=20085 trace_id=1373 func=ip_route_input_slow line=2241 msg="reverse path check fail, drop"
id=20085 trace_id=1373 func=ip_session_handle_no_dst line=5918 msg="trace"

config router policy
edit 1
set input-device "vlan-301"
set src "192.168.40.0/255.255.255.0"
set dst "10.245.5.0/255.255.255.0"
set gateway 172.16.40.1
set output-device "DR301_DK301"
next
edit 2
set input-device "vlan-300"
set src "192.168.50.0/255.255.255.0"
set dst "10.245.5.0/255.255.255.0"
set gateway 172.16.50.1
set output-device "DR300_DK300"
next
end

Regards

Patrick
