multi tenant Fortigate

  • November 18, 2015
  • 1 reply
  • 6947 views

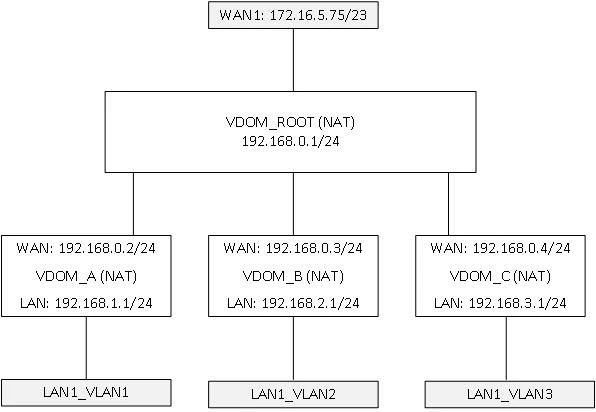

Hi, I would like to perform the following configuration:





Unfortunately, I have problems with the VDOM links. I can setup 3 links with the A,B,C IP Adresses on client vdom but i can`t set the ROOT IP Adress in all 3 links. I would like to save IP Adresses in this setup.



Thanks

Heiko

1 reply

emnoc
emnoc
New Member
November 18, 2015

As you will find out, each vdom-link is a unique interface so you can't do exactly what you posted, but vdom 1 2 3 can have a unique address ( i.e  /30 ) for the inter-links to vdom root. If you tried to apply that /24 masks you would have a overlap.



Check out a blog, I wrote explain  vdom stacked concepts



http://socpuppet.blogspot.com/2014/09/a-meshed-vdom-transparent-using-inter.html





exchange
exchangeAuthor
New Member
November 20, 2015

Hi,

thank you. I would save IPs (Net & Broadcast) but now i make 3x /30 networks.

emnoc
emnoc
New Member
November 20, 2015

exch



Don't forget you can save even more IPs with a /31 which is supported in fortigates.
