Mixed network topology - MCLAG with RING

  • February 18, 2024
  • 2 replies
  • 2536 views

Hello All.



I need to deploy Fortinet solution in small factory ( FG, FS ) and I have a question , How to connect exist ring to MCLAG cluster ( this red Ring ) - Can I mix Ring redundancy with MCLAG redundancy ?

ring direct connect.png

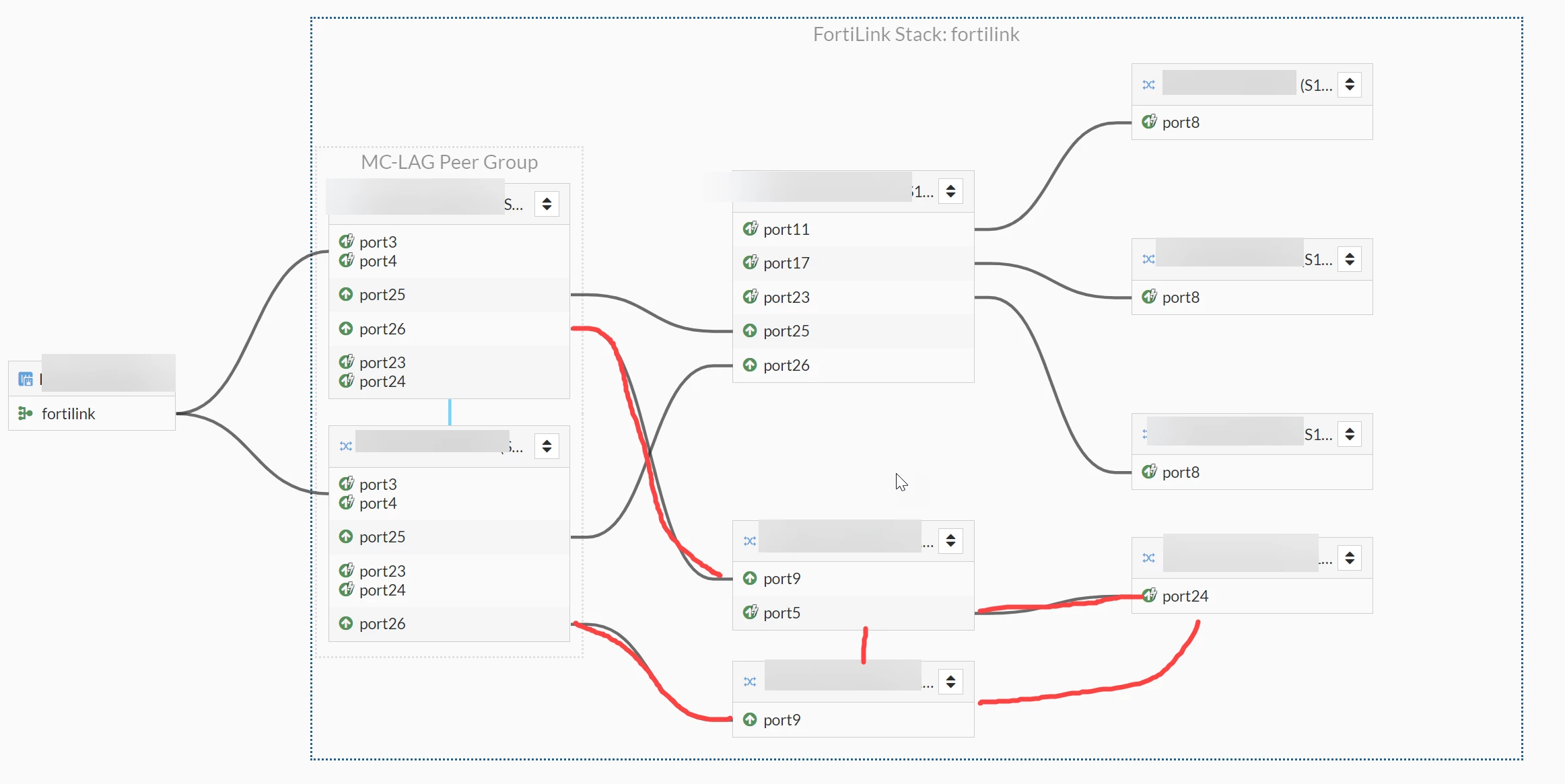

 or option 2



ring via two connect.png



ofc in this ring will be more installed FSwitches.

I know that in some point STP discard link , but how to avoid often recalculations of STP.

part of infrastructure exist and I don't want to install new cables everywhere



What happened if I connect another ring next to red one ?

    Best answer by ebilcari

    As mentioned in the section above, that should be enabled by default. If it's not disabled you are good to go: On the global switch level, mclag-stp-aware must be enabled, and STP must be enabled on all ICL trunks. They are both enabled by default.

    2 replies

    Anthony_E
    Staff
    Anthony_E
    Staff
    February 21, 2024

    Hello plsikk,


    Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


    Thanks,

    Best Regards
    ebilcari
    Staff
    ebilcari
    Staff
    February 21, 2024

    Basically mixing MCLAG links with STP links is possible (in any possible way), as shown also in the Administration guide as long as the mclag-stp-aware is enabled there will be no L2 loops in the network. MCLAG trunks will be automatically created when possible.

    MCLAG it's always recommended on switches that support it since it helps design a tiered network to have better throughput (not discarding links with STP) but that depends on the network requirements and cabling possibility.

    STP is calculated each time a link status changes, as long as the links and the switches are stable (no flapping) there will be no unnecessary re-calculations that can possibly affect end users experience.

    Emirjon
      plsikk
      plsikkAuthor
      Explorer
      February 21, 2024

      Where to activate/enable mclag-stp-aware option? is ot on FG or  directly on switches which created mclag link .

      ebilcari
      Staff
      ebilcariAnswer
      Staff
      February 21, 2024

      As mentioned in the section above, that should be enabled by default. If it's not disabled you are good to go: On the global switch level, mclag-stp-aware must be enabled, and STP must be enabled on all ICL trunks. They are both enabled by default.
