migrate from Palo Alto firewall to Fortigate

  • September 16, 2024
  • 3 replies
  • 4251 views

Hello .I have a project to migrate from Palo Alto firewall to Fortigate. Unfortunately, we don’t have the FortiConverter tool, so I proceeded to migrate the configuration manually. I have a problem with some NAT rules and need your help.


3 replies

MED-90
MED-90Author
Visitor III
September 16, 2024

Your help please, is it a source NAT or a destination NAT?

AlexC-FTNT
Staff
AlexC-FTNT
Staff
September 16, 2024

No idea how to convert this, but there are a couple of keywords I guess they hint on the direction:

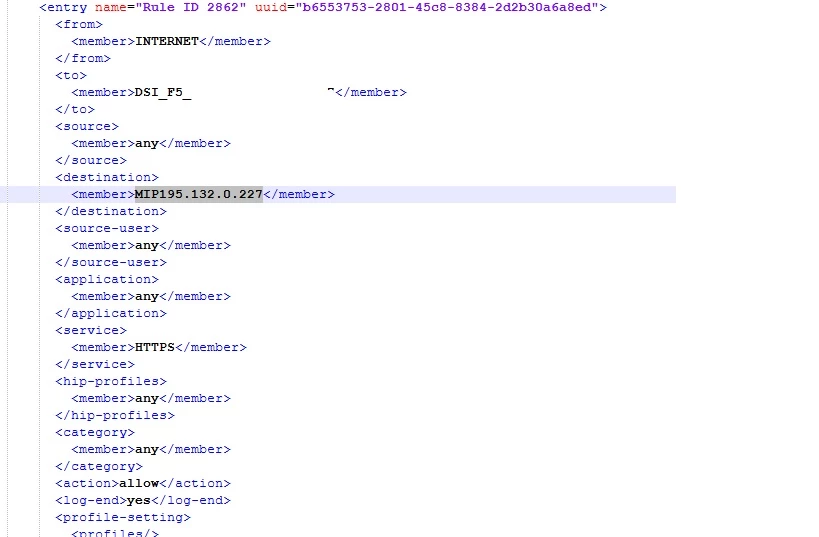

<destination> DSI_F5 <service>HTTPS >> so this is pushed to a F5 load balancer IP (=looks like DNAT to me)

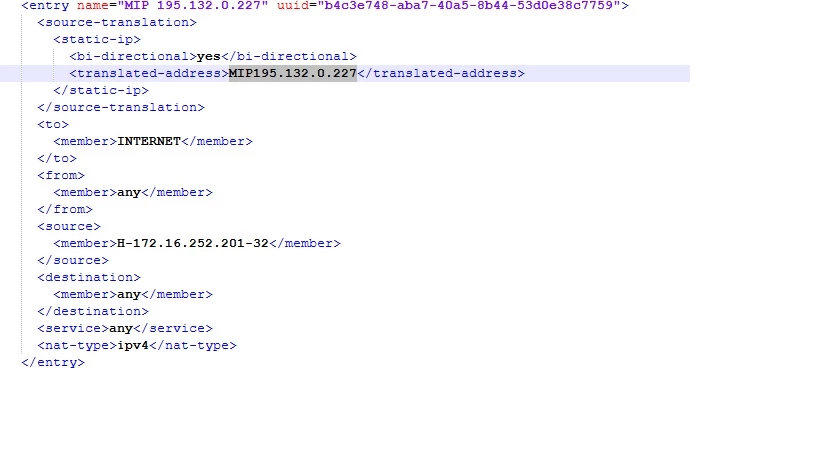

<to> INTERNET // <source> local IP >> this is the reverse direction (=SNAT). The SNAT is done automatically in FortiGate for the VIP addresses

<bidirectional> -- > yes (confirmation of the above)

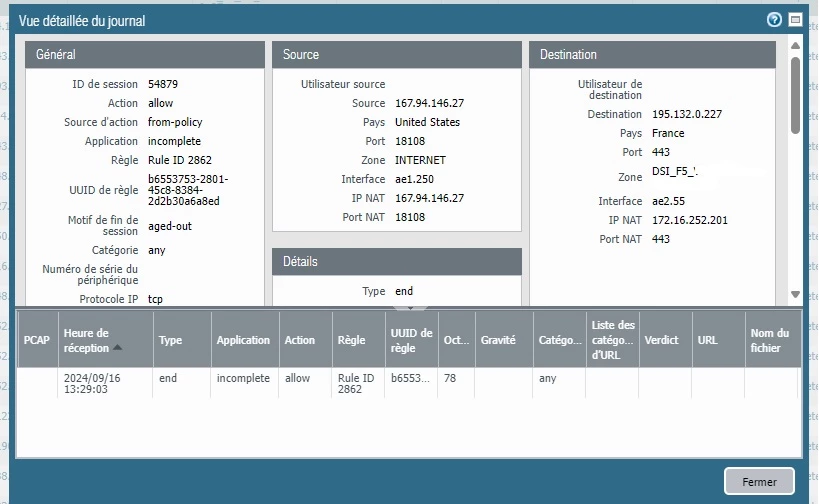

The log image part (right side) looks more clear. Gives the destination address (on PA) and the NAT IP of the server (DNAT)

MED-90
MED-90Author
Visitor III
September 16, 2024

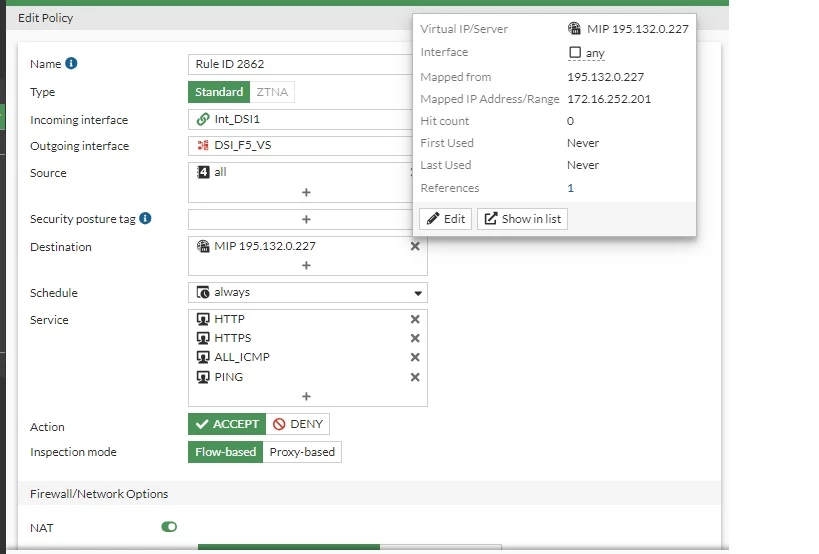

 So the configuration on Fortigate should be like this, is that correct?forti-nat.jpg

AlexC-FTNT
Staff
AlexC-FTNT
Staff
September 16, 2024

Looks right Mede (not sure about the services) with one mention: proxy mode. And then you probably need another/reverse policy for the outgoing access (if these server/s need internet access - only NAT enabled).

    MED-90
    MED-90Author
    Visitor III
    September 16, 2024

    Thank you for your help :)
