MIB file with FortiSwitch definitions

  • December 18, 2023
  • 2 replies
  • 2687 views

Hi,



There is a mention in documentation since v. 6.4:
"Two new tables are added to the FortiOS Enterprise MIB:

FgSwDeviceEntry: Details about connected FortiSwitch devices.
FgSwPortEntry: Switch port related information."



What MIB is in question and where to download it ?

Best answer by ebilcari

These are under the OID tree:

.1.3.6.1.4.1.12356.101.24.1

.1.3.6.1.4.1.12356.101.24.2

You can find the MIB file on the support portal: FORTINET-FORTIGATE-MIB


2 replies

ebilcari
Staff
ebilcariAnswer
Staff
December 19, 2023

These are under the OID tree:

.1.3.6.1.4.1.12356.101.24.1

.1.3.6.1.4.1.12356.101.24.2

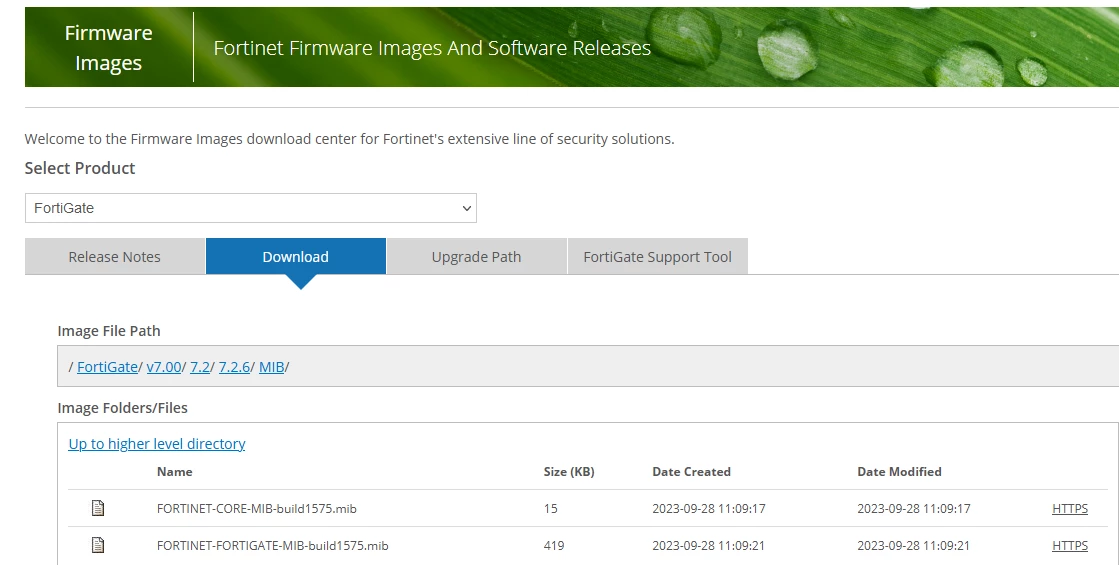

You can find the MIB file on the support portal: FORTINET-FORTIGATE-MIB


Emirjon
VinayHM
Staff
VinayHM
December 21, 2023

Hi @qrz



You can download MIBs from the Fortinet Support website and from Fortigate firewall as well

1) Log-in to FortiGate GUI and go to System -> SNMP.



2) Under 'FortiGate SNMP MIB' select respectively 'Download FortiGate MIB File' for FORTINET-FORTIGATE-MIB.mib and 'Download Fortinet Core MIB File' for FORTINET-FORTICORE-MIB.mib.



Please refer the below attached article

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Download-FortiOS-and-FortiCore-MIB-files/ta-p/194941



Regards
