Match IPsec traffic in Shaping Profile

Greetings,

A traffic shaping policy can be used for interface-based traffic shaping by organizing traffic into 30 class IDs.

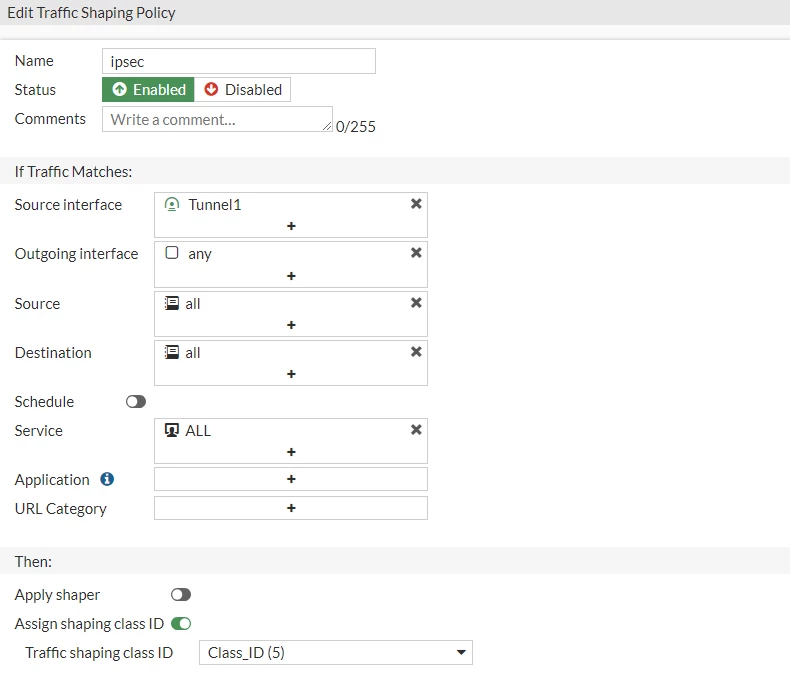

In the traffic shaping policy, you can select the ipsec virtual tunnel interface to create policy.

I checked on fortios patch 7.2.7. What is your fortios version?

Document for the reference: https://docs.fortinet.com/document/fortigate/6.2.16/cookbook/647914/interface-based-traffic-shaping-profile

Regards!

If you have found a solution, please like and accept it to make it easily accessible to others.

Hello,

I'm running 7.0.9.

I cannot see my VPN interface in the Source Interface list.
What I did now to make sur the tunnel does not go offline if there is heavy traffic is to prioritize the ipsec protocol like that :

Am I correct ?

Thanks for support

config firewall shaping-policy
edit 8
set name "HIGH_IPSEC"
set service "ESP" "IKE" "G-A-CAPWAP"
set dstintf "virtual-wan-link"
set class-id 9
set srcaddr "all"
set dstaddr "all"
next
end

edit 5
set class-id 9
set priority critical
set guaranteed-bandwidth-percentage 10
set maximum-bandwidth-percentage 100
next
