Management Of Fortigate Firewall Via The Out Of Band Management Port

Question

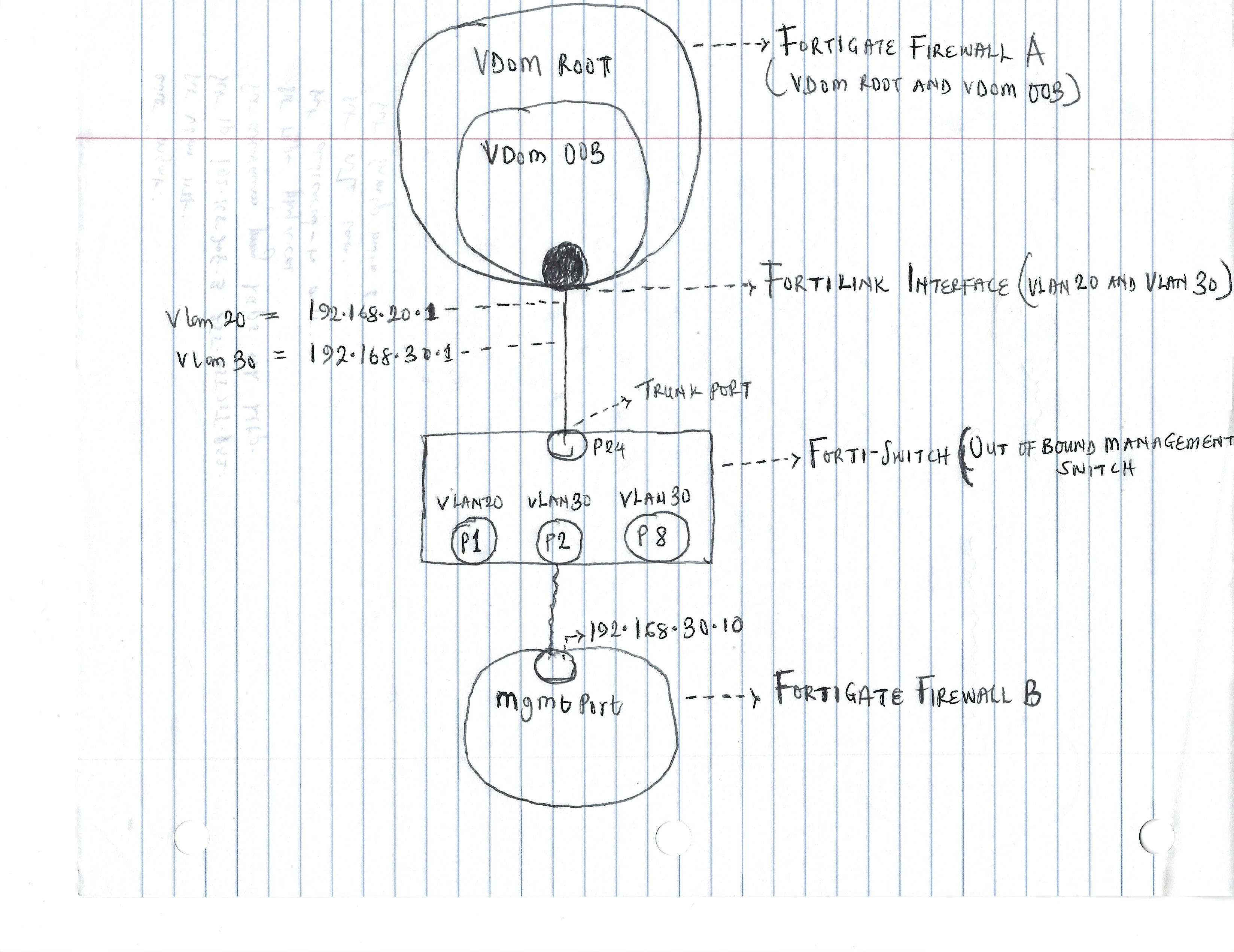

I have Setup Diagram2.jpg challenge concerning the setup diagram provided below. In this diagram, VLAN 30 is designated as the out-of-band (OOB) management VLAN, with the corresponding OOB management network IP address being 192.168.30.0/24. Each device intended for management via the OOB network is connected to the management VLAN ports of the Forti-switch through their respective physical management ports, as illustrated in the diagram. My objective is to manage the Fortigate firewall B using its IP address, 192.168.30.10, which is configured on the physical management port. In pursuit of this objective, I attempted to configure the static route outlined below. However, I encountered an issue where the command SET DEVICE MGMT was not accepted, even after I had removed the management port from being designated as a dedicated port. Could you please advise on the most effective method to achieve my goal of managing the Fortigate firewall B through its management port?

config router static

edit 12

set dst 192.168.209.0/26

set gateway 192.168.30.1

set device mgmt

ebrlima · Accepted Answer

Hello @Omoyeleola

This is the guide to achieve out of band mgmt ip reservation for each member in HA cluster:

https://docs.fortinet.com/document/fortigate/7.6.0/administration-guide/313152/out-of-band-management-with-reserved-management-interfaces

See, that when you have reserved interfaces to manage each box, connecting to the mgmt interface is managed by a different routing table.

When you make this configuration, port8(based on the example) cannot be referenced anywhere else, it is dedicated to management.

This should be simple, as long as you have a gateway for the management network.

Your mgmt port is on a vdom that you can reach directly or you need to go from one vdom to another?

Is the pc you using to reach the mgmt interface of fortigate in the same subnet as the mgmt interface, or there's routing involved?

config system ha     set ha-mgmt-status enable     config ha-mgmt-interfaces         edit 1             set interface port8             set gateway 10.11.101.2         next     end en
