Manage VDOM in separate ADOM

  • October 28, 2024
  • 4 replies
  • 2146 views

hi,

would it be possible or does it make sense to have a multi VDOM FG managed in FMG to be in separate ADOM?

for example, the "core or critical" VDOM such as the "root" and "internet access" are added in the "root" ADOM, then the rest of the "customer" VDOMs would be provisioned/managed in a separate ADOM.

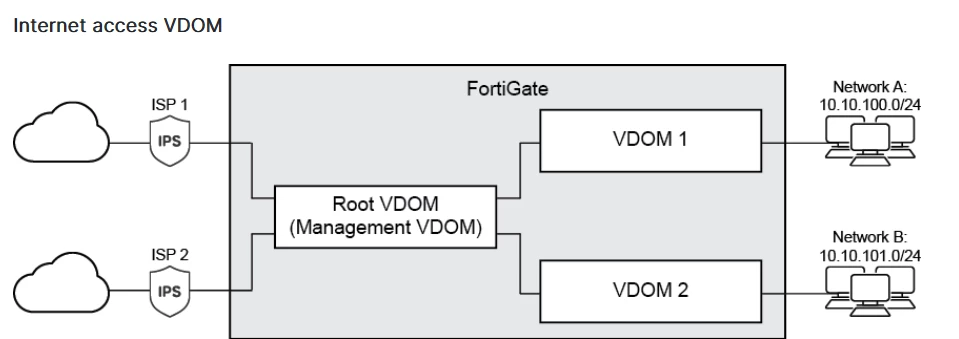

we'll deploy an "internet access" VDOM deployment. refer to sample diagram/scenario.

the root VDOM in the diagram will be our "internet access" VDOM, like an internet edge device. the rest of the customer VDOM will connect (vlink) to the root/internet access VDOM.





Best answer by msanjaypadma

Hi @johnlloyd_13 ,

Advanced mode will allow you to assign a VDOM from a single device to a different ADOM.



Advanced ADOM mode cannot be enabled when a remote FortiAnalyzer is being managed by FortiManager.


Reference article :
https://docs.fortinet.com/document/fortimanager/7.2.0/administration-guide/488375/advanced-settings



If you have found a solution, please like and mark it as solved to make it easily accessible for everyone.

4 replies

msanjaypadma
Staff
Staff
October 29, 2024

Hi @johnlloyd_13 ,



I hope below link will address your query.

Technical Tip: How to distribute FortiGate VDOMs in different FortiManager ADOMs

https://community.fortinet.com/t5/FortiManager/Technical-Tip-How-to-distribute-FortiGate-VDOMs-in-different/ta-p/197482

If you have found a solution, please like and mark it as solved to make it easily accessible for everyone.

Thanks, Mayur Padma
johnlloyd_13
Explorer III
October 30, 2024

hi,

we're using FMG 7.2, do we still need to configure below in order to support VDOM in different (or moving) ADOM?

does this CLI command "break" anything (i.e. FG VDOM talking/syncing to FMG)?

or is it safe to just simply apply the config?



config system global
set adom-mode advanced
end

msanjaypadma
Staff
Staff
October 30, 2024

Hi @johnlloyd_13 ,

Advanced mode will allow you to assign a VDOM from a single device to a different ADOM.



Advanced ADOM mode cannot be enabled when a remote FortiAnalyzer is being managed by FortiManager.


Reference article :
https://docs.fortinet.com/document/fortimanager/7.2.0/administration-guide/488375/advanced-settings



If you have found a solution, please like and mark it as solved to make it easily accessible for everyone.

Thanks, Mayur Padma
johnlloyd_13
Explorer III
October 30, 2024

hi,

thanks for these links! they're very useful.
