Question

Manage FortiSwitch Topology Issue

  • July 23, 2025
  • 3 replies
  • 1613 views

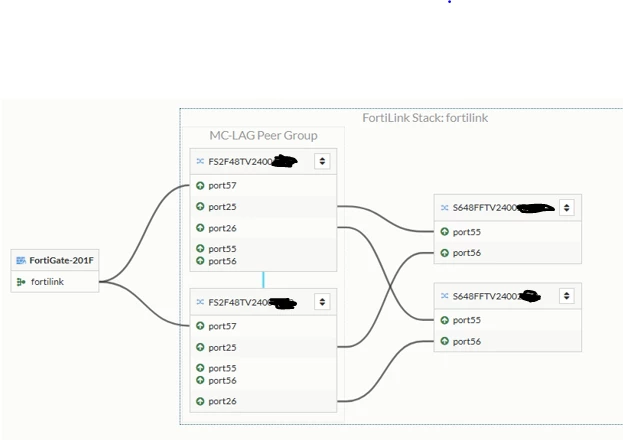

I have the following scenario, Fortigate towards FortiSwitch 2048F in MCLAG, and access switches connected to both 2048F.  I was able to configure MCLAG, and add 2 access switches without issue. Meaning GUI topology on managed fortiswitch is showing what is expected.

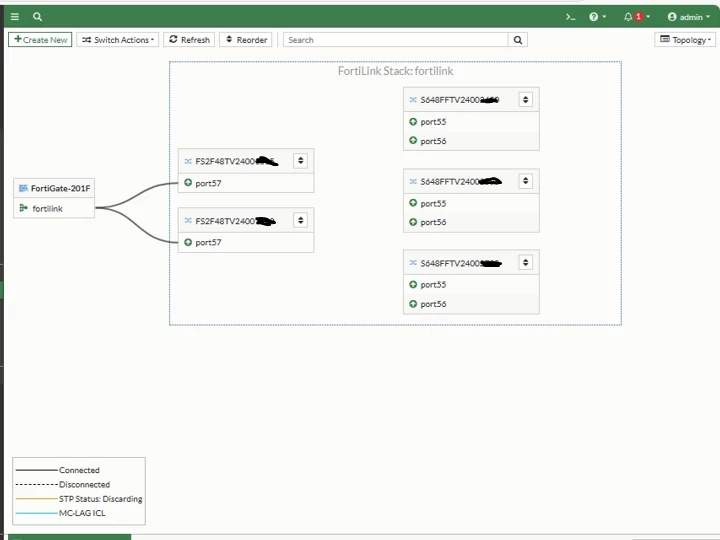

But as soon as I add the 3rd access switch, the topology changes and one of my MCLAG interface went missing on the GUI as well as the MCLAG grouping.






I am using 7.4.8 on FortiGate, 7.6.2 on FortiSwitch. I am only using the GUI on FortiGate to create all of this.





3 replies

Marlonb
MarlonbAuthor
New Member
July 23, 2025

I also tried using 7.6.3 on FortiGate and 7.6.2 on FortiSwitch and the GUI topology is much worst, It shows Fortilink connection as dotted line as well as the MCLAG connection.

HarryTran
Staff
Staff
July 23, 2025

Let me check!

HarryTran
Staff
Staff
July 31, 2025

It should be a know bug 174647
