MAC based policy not working with L3 switch
Hi,
We have two firewalls located in different locations: Firewall A and Firewall B. Both setups include an L3 device positioned between the LAN and the firewall.

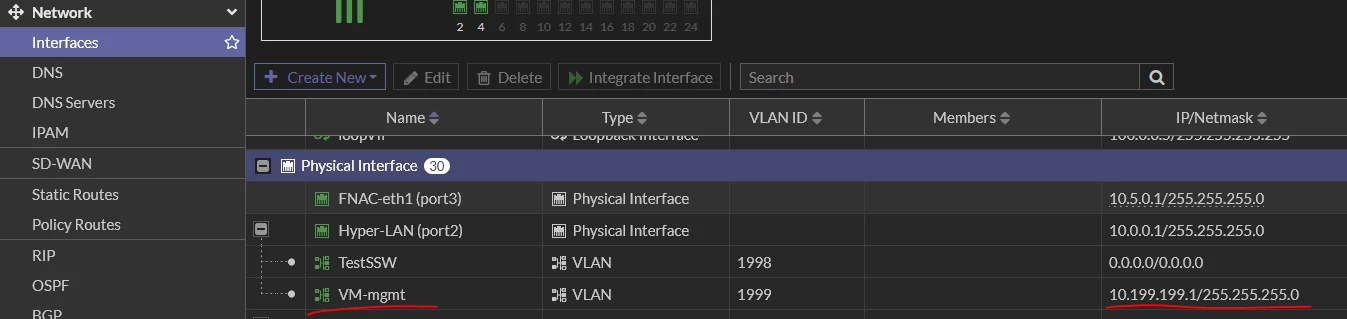

In Firewall A, the relevant subnet appears as directly connected, whereas in Firewall B, the subnet is marked as statically connected. This indicates that in the Firewall B setup, the switch acts as the gateway, causing the firewall to receive the MAC address of the L3 device instead of the end-user device.
However, in the Firewall A network, even with the L3 setup, the firewall acts as the gateway for the subnet, enabling it to detect actual client MAC addresses and enforce MAC-based policies.
Consequently, MAC-based policies do not function in the Firewall B setup because the L3 device serves as the gateway. In contrast, these policies work in the Firewall A setup, where the firewall directly receives the MAC addresses of the client devices.
