Question

Mac adresse filtering from wan don't work

  • February 10, 2023
  • 1 reply
  • 1108 views

Hello everyone,
I made a policy with mac address filtering on port 80 and 443 but it doesn't work. when I apply the mac address filter, the device with this mac address cannot access the services. no worries when I put on ALL.

On the other hand I made an identical policy between 2 vlan and no worries.



Why it won't work on WAN



I followed this guide https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-create-MAC-Addressed-Based-Policies/ta-p/189525?externalID=FD45609

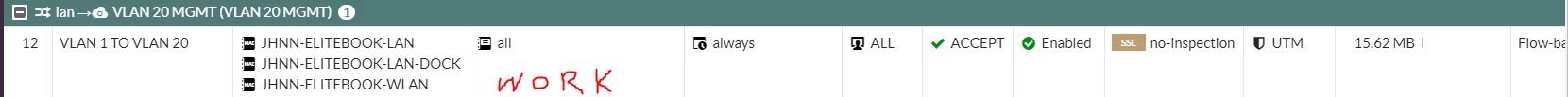

Attached are the two screen shots of the policies in question




1 reply

Markus_M
Staff & Editor
Staff & Editor
February 12, 2023

Hi Jhnn-be,



do a packet capture:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Packet-Capture-on-FortiOS-GUI/ta-p/194444

and then see what MAC you actually receive. It is VERY unlikely that the MAC of the device will be transported over WAN.



Best regards,



Markus
