MAC Address-Based Policies

  • April 28, 2022
  • 2 replies
  • 5293 views

Hi,

I would use mac-based device in ipv4 policy, I have created such device as mac-based and this device is visible in "Addresses". But when creating ipv4 policy for destination on "Devices" tab I cannot see this mac-based device.

No any mac-address devices (with his own mac-address icons) are displayed in "Devices" tab.

What I'm doing wrong? Fortios 6.4

2 replies

seshuganesh
Staff
seshuganesh
Staff
April 28, 2022

Hi Team,

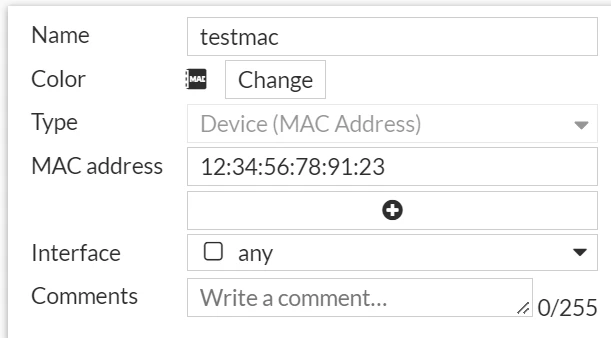

From my understanding, you have configured mac based address as shown in the below screenshot:

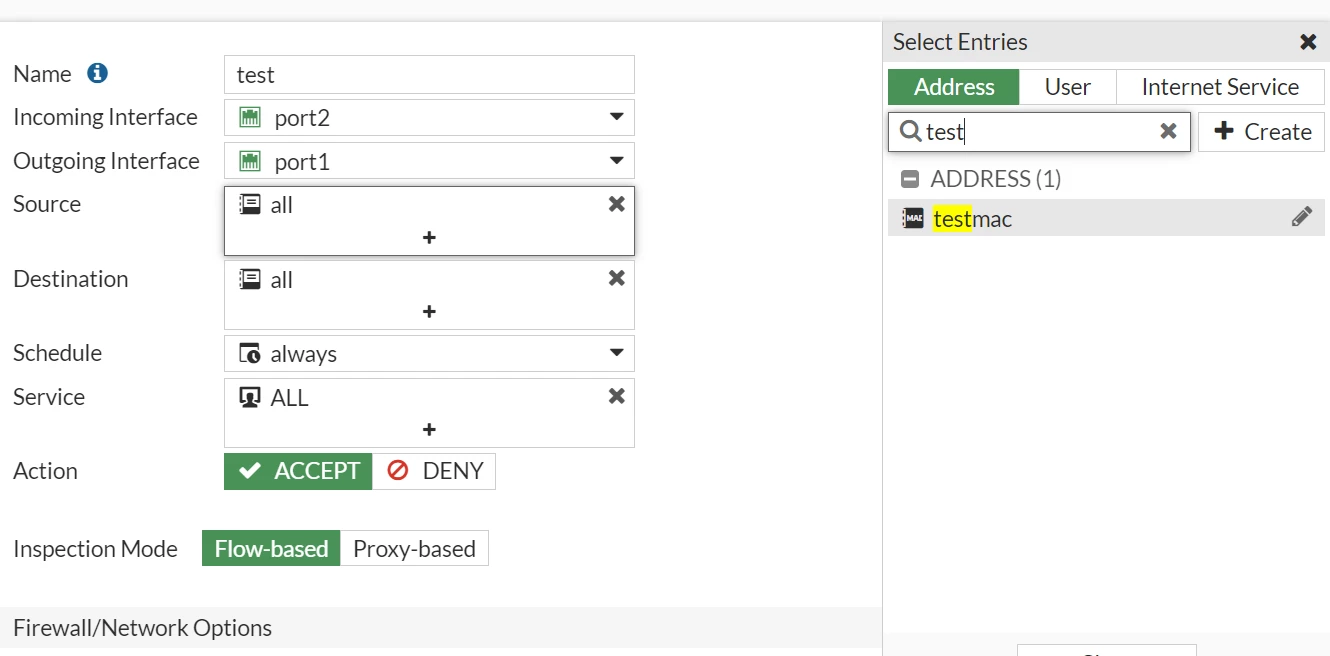

If so, in firewall policy under address field can you check it? as shown in below screenshot:




Please check and keep us posted

Meseguer24
Meseguer24
New Member
June 22, 2022

Hi @seshuganesh



The same is happening to me but the difference with your picture is that we cannot find the MAC based Address in the destination field.



The idea is to create a policy that only allows communication between 2 specific devices using their corresponding MACs.



When setting the source, it is fine, I can find the MAC1 I want to allow cross to the other subnet, however, when setting the destination address, I am not able to find in the list the MAC2 I want to make reachable from MAC1.



Both appears in the general Address list, however, I have tried many ways to find it in the destination field without success.



My temporary workaround has been setting the IP address of the Device2 on the destination, however I don't like too much this solution as someone could set it manually and so make itself reacheable from Device1.



I used to do it before in other FWs, but this time I don't know what I am missing.



Any clue about this?



Thank you in advance.



--CV





kcheng
Staff & Editor
kcheng
Staff & Editor
June 22, 2022

Hi @Meseguer24



You may want to check the deployment of your firewall. In NAT mode, MAC address object is only supported to be set as source address. If the FortiGate/VDOM is configured in transparent mode or virtual interface pair mode, MAC address object can be set as source/destination. You may refer to the following document respectively:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-create-MAC-Addressed-Based-Policies/ta-p/189525?externalID=FD45609

    tstroebele
    tstroebele
    Visitor III
    March 26, 2024

    It would be great to be able to see the vendor-id in the GUI and also use it for destination, it such a nice feature to use vendor-id and/or mac address objects, but it would be even better to not have the requirement of a virtual interface pair mode or transparent mode to use it for a destination.

    JonasV
    JonasV
    Explorer
    January 21, 2025

    Indeed, I'm in the same boat.
    I have a use case where I for security reasons, would like to specify the Vendor-id for devices as destination.
    The devices are spread across multiple branch offices and receive DHCP. It's administrative overhead to assign them static IP and lock them down based on IP.
