Looking for fortiswitching real scenario -Inter Vlan and Vlan

Hello @nrahman

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,

    Fortinet Community Team

Dear @nrahman

There are two types major of Fortiswitch deployment , one is  Fortilink mode where switches will be managed by Fortigate, the other is standalone switch  deployment.

Below is supported  topology for fortilink deployment :

https://docs.fortinet.com/document/fortiswitch/6.4.2/devices-managed-by-fortios/617516/network-topologies

User guide :

https://docs.fortinet.com/document/fortiswitch/7.0.4/devices-managed-by-fortios/173270/fortiswitch-management

If the deployment method is fortilink ,  the L3 network will be on Fortigate itself and switches gateway for each vlan will be on the FGT. So FGT can route based on the policies and routes configured.

Standalone deployment guides:

https://docs.fortinet.com/document/fortiswitch/6.4.2/administration-guide/860027/mclag

Advanced scenarios :

https://docs.fortinet.com/document/fortiswitch/7.0.1/administration-guide/811127/using-layer-3-routing-within-an-mclag

Hope this helps .

Regards

Vigneash

Thanks for the guides.

I have two FortiGate Unit with HA enabled and others Forti switches are all connected to each others without any redundant links.  so in this case what is the best configuration guide for fortiswitch - VLAN configuration .

Dear @nrahman

It depends on how many and  the model of switches .

I would recommend   an "mclag-icl" setup per the topology guide(supported for 1xx series above) :

https://docs.fortinet.com/document/fortiswitch/6.4.2/devices-managed-by-fortios/617516/network-topologies

The configuration of the switches will be done directly on the Fortigate.

Vlans will be created under "Managed Fortiswitch"/ "Fortiswitch vlan"

Fortigate will be the gateway for all the vlans .

Switches will act as layer 2 in managed topologies.

Regards

Vigneash

Dear @nrahman

Yes with switches more than two switches,    we can have first two  core switches directly plugged into the FSW . Configure stacking b/w them (mclag-icl)  and connect end switches on the  core .

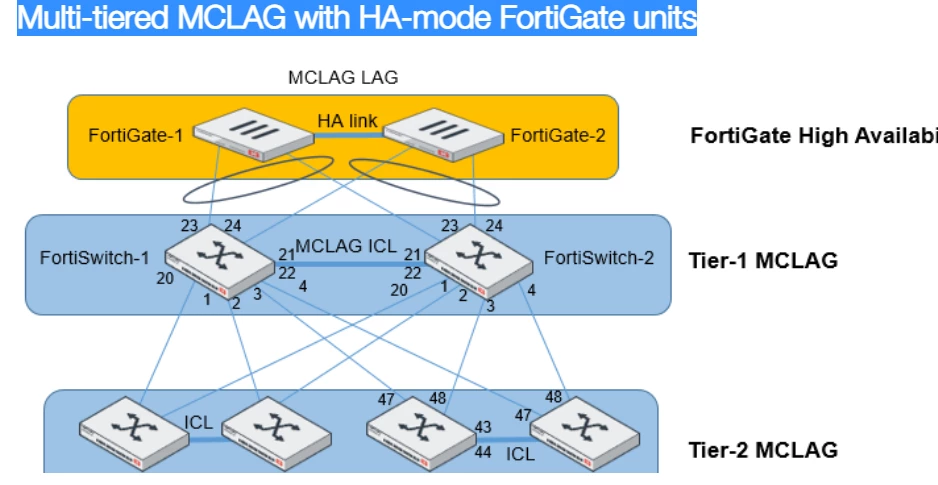

Example architecture :

Multi-tiered MCLAG with HA-mode FortiGate units

All these switches will act managed with FGT and configuration will be in Fortigate for all switches.

https://docs.fortinet.com/document/fortiswitch/6.4.2/devices-managed-by-fortios/617516/network-topologies
