vasugk
vasugk
Explorer
April 30, 2021
Question

Link Monitor Changes state from alive to die.

  • April 30, 2021
  • 2 replies
  • 3205 views

Hi All,

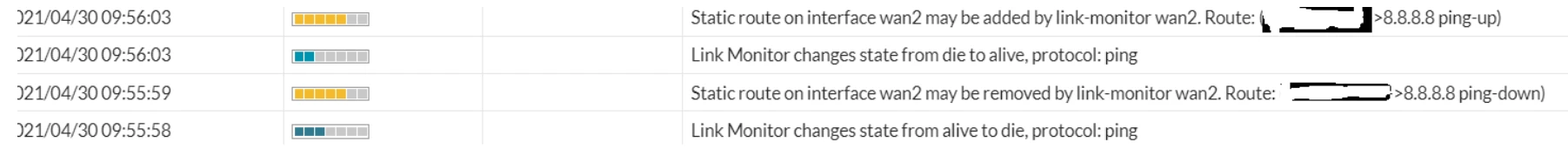

We are getting link monitor changes state logs on FG100D, I am not sure because of this my voice call user are getting affected they are facing drop in call is this because of this? pls find the attached below.





Regards,

Srini

    2 replies

    acp
    Staff
    acp
    Staff
    July 31, 2023

    Hi

    During the issue time do capture below logs

    diag sniffer packet any " host 8.8.8.8 and icmp  " 6 0 a

    Need to look into the packet drop/delay  in response

    kvimaladevi
    Staff
    kvimaladevi
    Staff
    July 31, 2023

    Hi Vasugk,



    Could you try getting the below outputs when the issue happens

    diagnose sys link-monitor status
    get router info routing-table all

    Regards,
    Vimala
