Link-Monitor broken in 5.2.3 ?

Forum|Forum|11 years ago
March 30, 2015
5 replies
30915 views

Hi,

I found an extremely strange behavior in the FortiOS 5.2.3 on our FGT 110C.

FG-GW # diagnose sys link-monitor status

Link Monitor: gwdetect-upg-1 Status: alive Create time: Sun Mar 29 01:17:53 2015
Source interface: wan1 (3)
Interval: 5, Timeout 5
Fail times: 0/5
Send times: 0
[...]
    protocol: ping, state: alive
[...]

Link Monitor: gwdetect-upg-2 Status: alive Create time: Sun Mar 29 01:17:53 2015
Source interface: wan2 (10)
Interval: 5, Timeout 5
Fail times: 0/5
Send times: 0
[...]
    protocol: ping, state: alive
[...]

seems to be correct, but

FG-GW # diagnose sys link-monitor interface wan1
Interface(wan1): state(down, since Sun Mar 29 01:18:21 2015
), latency(8.96), jitters(18.33), session count(639), bandwidth(55977)

FG-GW # diagnose sys link-monitor interface wan2
Interface(wan2): state(down, since Sun Mar 29 01:18:22 2015
), latency(21.22), jitters(8.04), session count(81), bandwidth(30896)

show's down links. The same output are shown in the gui on System/Monitor/Link-Monitor. Is this my failure or should I report an bug?

Best answer by JayWinksInLine

It gets better. The behavior I'm seeing is that the display under System -> Monitor -> Link Monitor in the UI will always be precisely opposite the output of di sys link-mon stat for the corresponding monitor. The CLI output is correct, the UI is always reverse and as such wrong.

Dave_Hall

New Member

We don't have any fgts on 5.2, but have been thinking about this problem for the last 3 days. I am just wondering if one command just confirms the service/monitor is up/active while the other command confirms the link itself is either up or down.

Since ping is being using, I can imagine some funky results if both WAN1/WAN2 connections are up, but not the ping servers.

Otherwise, I think it is a bug.

msigl

New Member

Hi,

i can confirm this also. I have a client with 5.2.3 with 80D and another with 30D. Both show on GUI link monitor the status down. Can confirm also that from CLI from the 1st command i get the links alive, and with the 2nd command the links are down.

Probably a bug. Found this in release notes > Bug ID: 268019 The VWL and link-monitor status may not be correctly indicated in the GUI.

Kind Regards,

luca_vasini

New Member

same problem...

what will come out the fix?

Thanks

Luca

Christopher_McMullan

Staff

It's still being tested. Best to open a support ticket with Fortinet TAC to have your situation associated with the bug, so you can be made aware of firm patch release dates as they become available.

JayWinksInLineAnswer

New Member

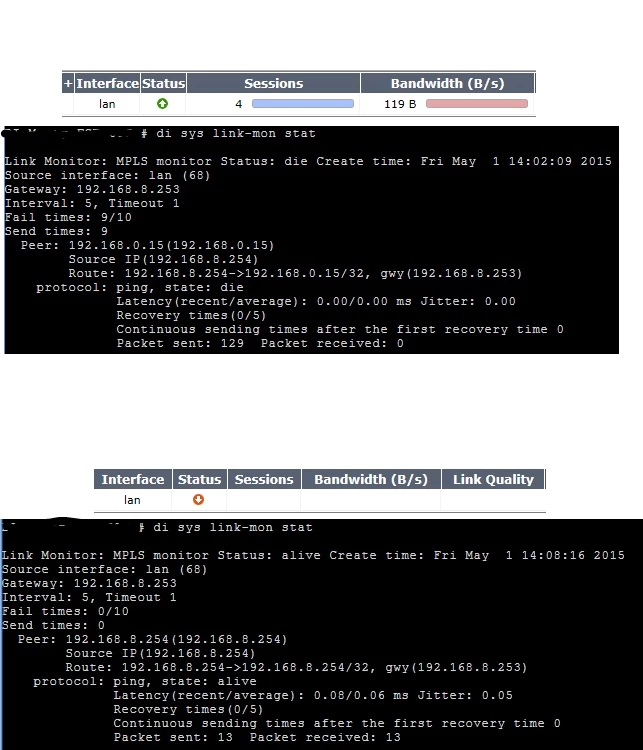

It gets better. The behavior I'm seeing is that the display under System -> Monitor -> Link Monitor in the UI will always be precisely opposite the output of di sys link-mon stat for the corresponding monitor. The CLI output is correct, the UI is always reverse and as such wrong.
