Join AD with Fortigate 40-F, DNS Problems

  • February 6, 2021
  • 14 replies
  • 19171 views

Hello Community,

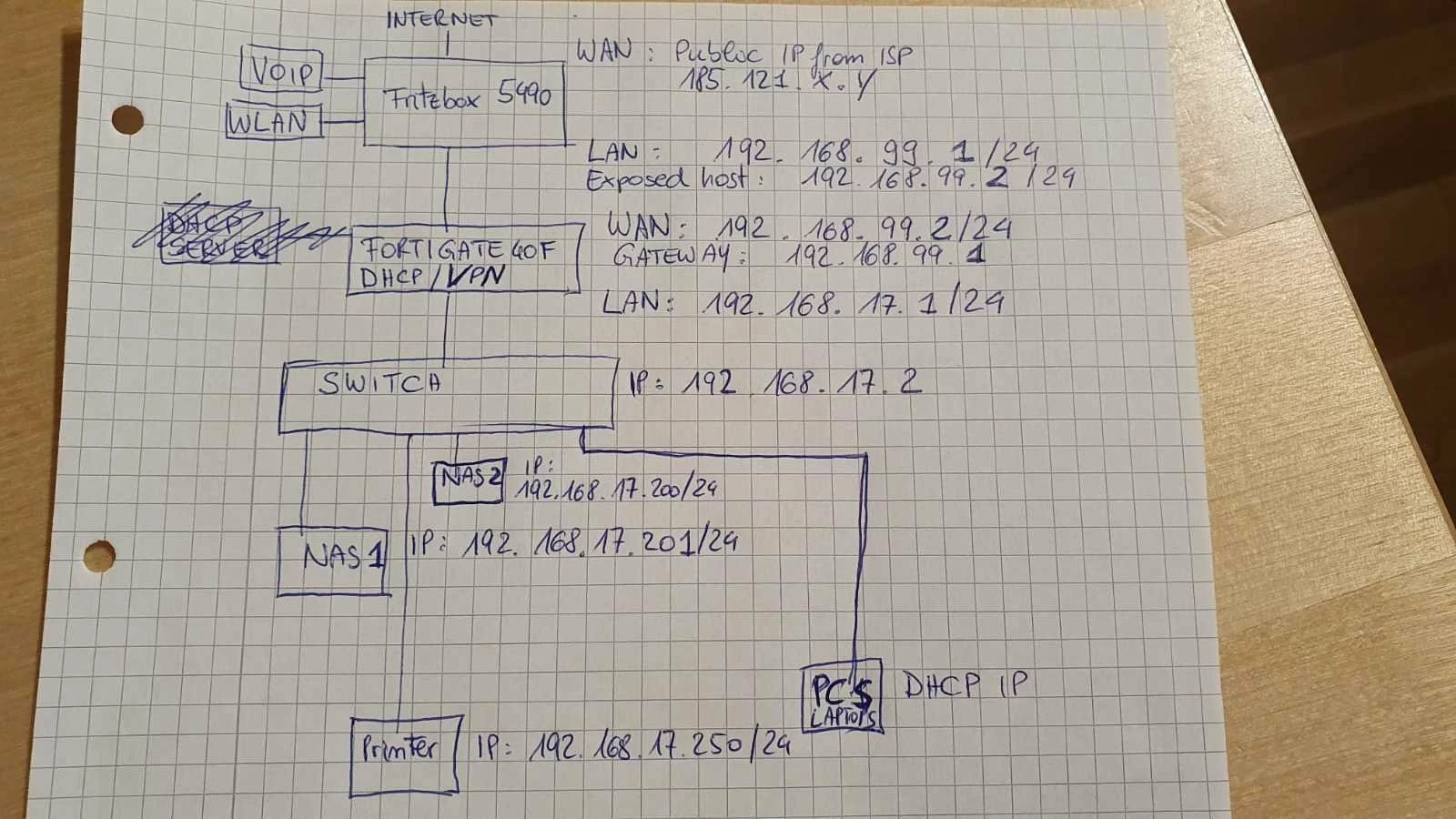

i am absolute newbie to Fotigate. My network configuration is as follows:



The domain controller is located at the NAS1 192.168.17.201, the domain is local.XXXX.it.



My DNS settings are as follows:



However, when I ping my domain controller with execute ping local.XXXX.it I get a response from the IP of the host of my website www.XXXX.it (courtesy page). What is wrong here?



In fact, I cannot register to the LDAP Server:



Anyone can help?



Thanks in advance.









    14 replies

    gpojer
    gpojerAuthor
    New Member
    February 8, 2021

    Can anyone help me?

    NeilG
    New Member
    February 8, 2021

    I'm guessing you are following one of the SSO LDAP cookbooks?



    Cookbook | FortiGate / FortiOS 6.2.7 | Fortinet Documentation Library



    One thing I noticed - your user name for your LDAP authentication is in the NT/LANMan format of Domain\Username



    This (for LDAP auth) should be in a distinguished name format.





    This might help:

    Windows: How do I find an LDAP User and their Group Base DN for Microsoft Active Directory? – marktugbo.com



    gpojer
    gpojerAuthor
    New Member
    February 8, 2021

    I have tried with cn=administrator, DC=local, DC=XXXX, DC=it and it still does not work.
