IPSEC VPN Tunnel - Cannot access both Fortigates

  • December 21, 2021
  • 5 replies
  • 5854 views

Hello everyone,

This is my first post on this forum. I hope I can come to contribute, but right now I need your help.

I have an IPSEC tunnel configured between two fortigates (61F and 40F). The tunnel is up with both phases (1 and 2) up. The ftg 61F has the ip 10.2.10.254/24 on the lan interface and the ftg 40F has the ip 10.1.10.254/24 on the lan interface. I can ping from one fortigate to another just by indicating the ping-options source ip. On ftg 61F I have an SSL VPN configured and I can access ftg 61F (10.2.10.254) via http, but I can't access the fortigate 40F via http. Any suggestion?

5 replies

Debbie_FTNT
Staff & Editor
Debbie_FTNT
Staff & Editor
December 21, 2021

Hey silvajo,

welcome to the Forums :).

Regarding accessing your FGT40F from SSLVPN, the connection goes something like this, correct?
client -> sslvpn tunnel -> 61F -> IPSec -> 40F
Check the following:
1. you have a policy from ssl.root to IPSec on the 61F (with destination the 40F IP)
->I would strongly suggest to enable NAT here, and NAT to an IP in the 10.2.10.254/24 range; this might require creation of an IP pool
-> that way, the SSLVPN tunnel IP is NATed to a LAN IP on the 61F and can enter IPSec without changes to P2 Selectors in the IPSec tunnel
2. If you don't want to NAT the traffic on 61F, do the following:
-> add SSLVPN tunnel range to the P2 Selectors
-> on the 40F, ensure there is a route back for the SSLVPN tunnel range through IPSec tunnel



Additionally, if your SSLVPN setup is with split-tunneling enabled, ensure that the 40F IP is added as a destination in the split-tunneling setup

And lastly - I would recommend admin access via https, not http :)



I hope this gives you a place to start.

Cheers!

    silvajo76
    silvajo76Author
    New Member
    December 24, 2021

    Hello Debbie,

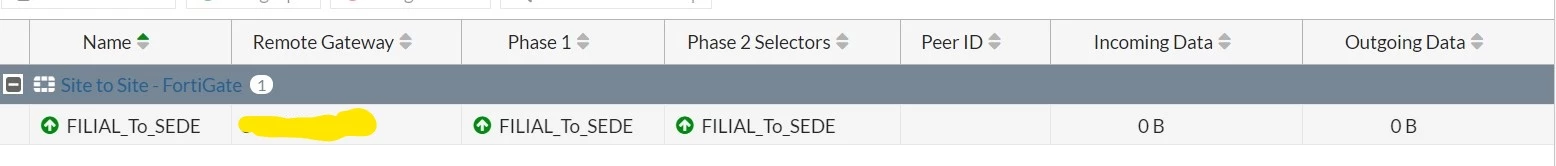

    Many thanks for the reply. I've already set up the policy with the given indications, but even so, I can't get to the branch's fortigate (40F). Please see attached images.

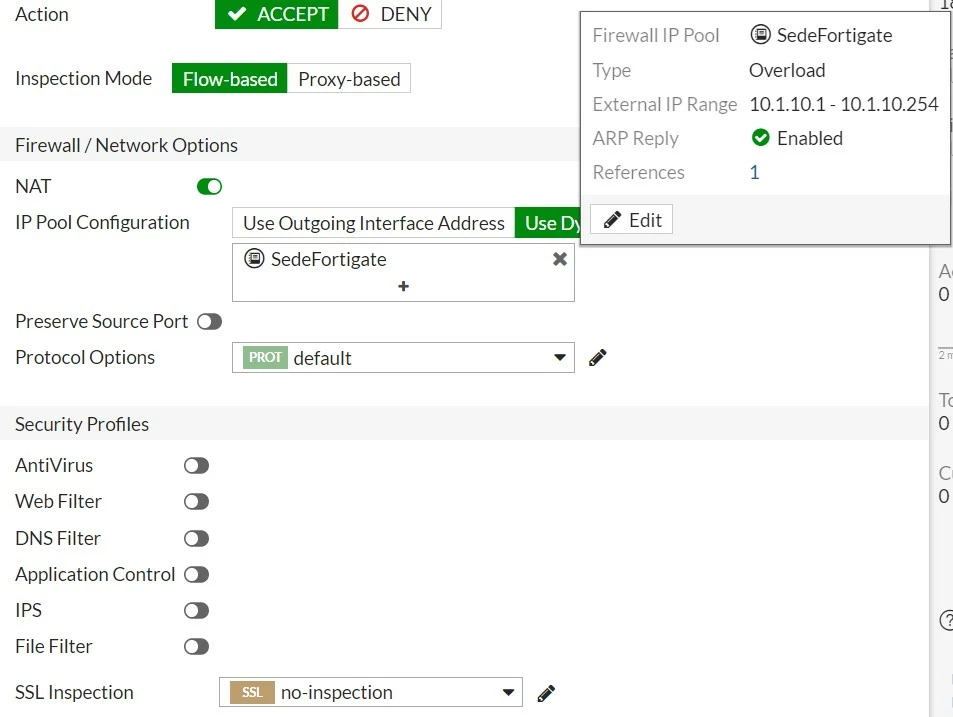

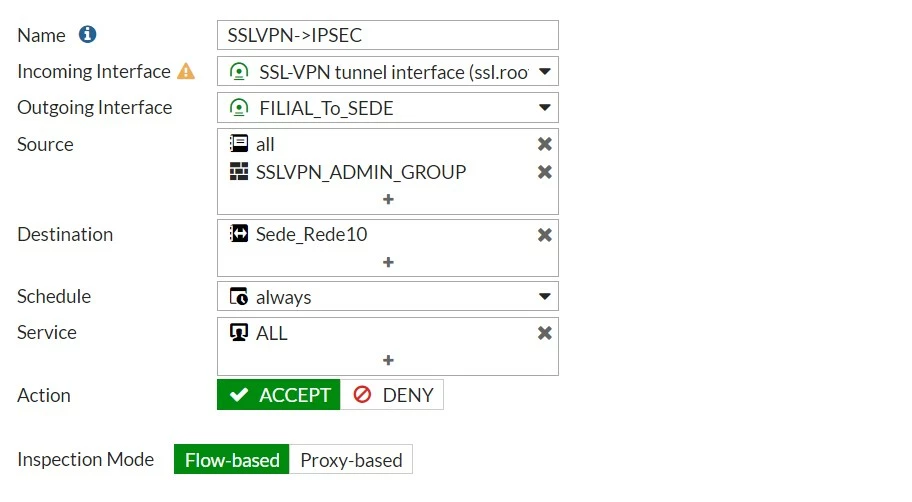

    PolicyPolicyIP POOLIP POOL



    Any suggestion?



    Best wishes for a great Christmas :)



    silvajo76
    silvajo76Author
    New Member
    December 24, 2021

    I forgot to mention.... my tunnel FILIAL->SEDE is BRANCH (61F) -> HEADQUARTERS (40F).



    And i do not have traffic in the tunnel...


    Toshi_Esumi
    SuperUser
    Toshi_Esumi
    SuperUser
    December 24, 2021

    You're using the same subnet range with Sede side for NAT outside IPs for the SSL VPN access to Sede, which is conflicting. (10.1.10.0/24->10.1.10.0/24)

    What Debbie is suggesting is to grab/reserve one IP in Filial's 10.2.10.0/24 and use it for the NAT. So all SSL VPN clients to Sede has 10.2.10.x -> 10.1.10.0/24, which is already included in your IPSec phase2 network selector sets. Unless you need to access back from Sede side to each Filial-connected SSL VPN client, just one NAT IP wouldn't cause a problem.



    Toshi

      Debbie_FTNT
      Staff & Editor
      Debbie_FTNT
      Staff & Editor
      December 25, 2021

      Thank you for clarifying my intended solution, Toshi :)

      @silvajo, exactly as Toshi noted, I meant to suggest using an IP from the LAN side of your 40F to go into the tunnel, my apologies if this was unclear

        silvajo761
        silvajo761
        New Member
        December 26, 2021

        Hi. Thank you very much for your answers and sorry but I'm new to this stuff.
        Recap:
        Headquarters Network - 10.1.10.0/24
        Branch Network - 10.2.10.0/24

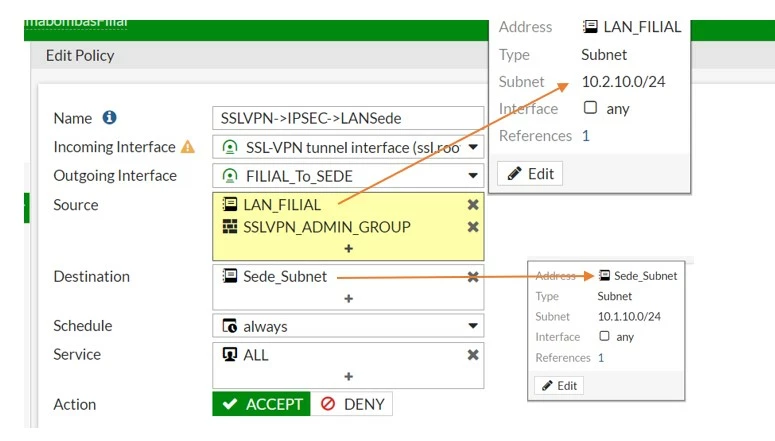

        On my 61F Policy i have this config.






        Incoming Interface: SSL-VPN Connetion

        Outgoing interface: FILIAL_TO_SEDE (tunnel between 61F and 40F)







        Yours Sugestions

        "grab/reserve one IP in Filial's 10.2.10.0/24 and use it for the NAT" or " I meant to suggest using an IP from the LAN side of your 40F to go into the tunnel"



        Firewall /Network Options

        NAT: Enable

        IP POOL: what ip pool should i define here? How can a reserve an ip? This ip sould be from de 61f subnet (10.2.10.0/24) or from the 40f subnet (10.1.10.0/24)?

        Debbie_FTNT
        Staff & Editor
        Debbie_FTNT
        Staff & Editor
        December 28, 2021

        Hey silvajo,



        thanks for the screenshot, very useful :).

        For NAT - create an IP from the 61f subnet, 10.2.10.0/24 (10.2.10.250-10.2.10.250 for example, just the one IP), and use that pool in the policy.

        Regarding reserving an IP - if FortiGate serves as your DHCP server on the lan interface, just set the range to only go up to .249 for example, so that .250 can't be assigned. If you have an external DHCP server, make sure the IP you use for NAT here can't accidentally be given to a DHCP client.

        Regarding the policy:
        - question: as source you have sslvpn interface (correct) and LAN subnet. I wonder at the LAN subnet here. As source in sslvpn interface, you will usually want whatever IPs you use in the SSLVPN tunnel settings (by default SSLVPN_TUNNEL_ADDR address)



        also - we were under the impression your setup was sslvpn -> 40F -> ipsec -> 61F, not sslvpn -> 61F -> ipsec -> 40F, our apologies. if your 61F is the bridge between sslvpn and IPsec, you will want to set up NAT with 61F lan IP.



        Cheers!
