IPsec tunnel up - no traffic going through

  • November 24, 2010
  • 5 replies
  • 4317 views

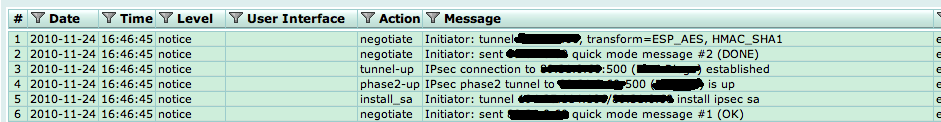

Dear all, first of all thanks for taking your time to give me a hint on the following issue: Fortigate 80C <=> Astaro for IPsec tunnel. Tunnel is up (regarding to the " Monitor => IPSec section) - as seen in the attached screenshot of the Log in the GUI section. I created a Firewall policy (" accept" ) with the virtual IPsec interface as source and the internal net as destination and created an address range aswell. Does anyone know how I can log the incoming / outgoing packages to see if they arrive at the Fortigate or where I may have set something wrong in the setup of the tunnel. Thank you very much!

    5 replies

    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    November 24, 2010
    Hi, on the console, type
    diag sniffer packet MyTunnelName ' '  4
    to see traffic from the remote end. If you ping from the remote end, you could use
    diag sniffer packet MyTunnelName ' icmp'  4
    and
    diag sniffer packet wan1 ' udp port 50'  4
    will show you traffic arriving at the external interface. ...get the idea? MyTunnelName is the name of the VPN interface/phase1.
    A
    Anonymous_UserAuthor
    Contributor
    November 25, 2010
    First of all thank you very much for your reply! Your commands were really helpful! But I stumbled across another problem now. While trying to capture packages on the virtual IPSec interface, I got the following message:
    FGT80CXXXX # diagnose sniffer packet ' tunnel' 4 interfaces=[XXXXX] filters=[4] pcap_lookupnet: XXXXX: no IPv4 address assigned pcap_compile: parse error
    I can confirm that there seems to be no IP assigned when I look in System => Network GUI section. But the IPSEC guide from Fortinet explained that I generally don´t have to assign an address in this section... Thanks again!
    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    November 25, 2010
    No, the tunnel ends do not have to have an IP. In your case you suffer from a simple syntax error:
    FGT80CXXXX # diagnose sniffer packet ' tunnel'  4
    should read
    FGT80CXXXX # diagnose sniffer packet tunnel ' service'  4
    with <tunnel> being the tunnel name (phase 1 name) and <service> the protocol you would like to sniff. Use empty ticks ' ' for all traffic, ' icmp' for pings, ' tcp port 80' for HTTP, and so on.
    A
    Anonymous_UserAuthor
    Contributor
    November 25, 2010
    Thanks for the quick reply. No, I didn´t have a syntax error - I just replaced the " real" infos in my quote with some misunderstandable informations. Anyway - if I enter the command using the name of the virtual IPsec interface - i get the above stated error message, that there is no IP assigned. If I use a fantasy-name instead of the real interface name, i get a message that this interface is non existend - which shows me that he " accepts" my command and that there really seems to be an IP missing?! Or am I completely wrong? :D
    ede_pfau
    SuperUser
    ede_pfau
    SuperUser
    November 25, 2010
    You can ignore the message about the missing interface IP. But you had a " pcap_compile" error and that is really an error. That' s why I re-read the debug statement and spotted the missing action field. So, to make it clear, the command needs 5 additional arguments to it.
