IPSEC Tunnel intermittent drops to Azure connection
hi
we have an IPSEC tunnel configured on our fortigate FW which is linked to Azure.
this tunnel has intermittent connectivity drop outs and its affecting production servers/users and what they are doing.
as far as I can tell the phase 1 and phase 2 settings are correct at both ends.
this includes the pre shared key, DPD, algorithms, diffie-hellman group, key lifetime for phase 1 and 2 and the PFS.
based on the fact that the VPN is on for most of the time and the drops are intermittent, this would indicate that the settings are correct otherwise the connection would not be established... am i correct in saying this?
i have noticed that we DO NOT have auto-negotiate or Autokey Keep Alive enabled on this tunnel. Not sure if this is required? but ive read some posts indicating that this is a useful feature to enable.
https://community.fortinet.com/t5/FortiGate/Technical-Tip-Using-the-IPSec-auto-negotiate-and-keepalive/ta-p/189536
fortigate details
Fortigate 1800F
v7.2.9 build 1688
the time stamps for these drops match up with what we are seeing on the azure side

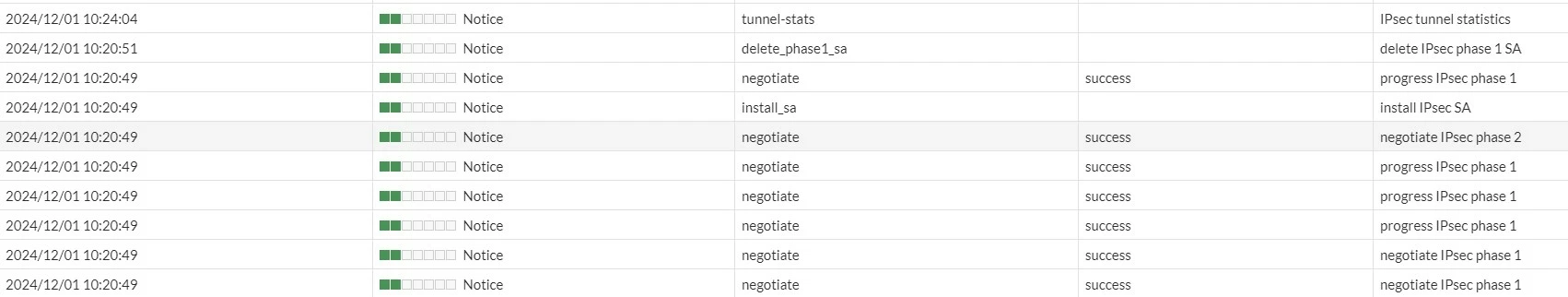

this is what were seeing on the fortigate, in Azure we can see the VPN connection has gone down.
how do we get more detailed information as to what is triggering the tunnel to go down? or as stated in the logs, the tunnel is renegotiating.. what is causing this?
whats the best way to get more detailed information about this?
question about DPD, what should this be configured as? weve been advised by a 3rd party that this should be set to on-idle.... is on demand the better option?
any suggestions/advice will be greatly appreciated!
cheers
