IPSEC site to site VPN Tunnel to external partner goes down irregularly / flaps

7 replies
3010 views

I have a Fortigate 91G and created an IPSEC site to site tunnel to a firewall of an external partner with preshared key (I think Cisco Firewall but info is not disclosed). The tunnel drops from time to time - there is no pattern why. It reconnects immediately but the session for users is lost and they need to turn off and on their LAN / VPN connection to be able to reconnect to the partner's systems. I checked the configuration multiple time and it's exactly the same as the partner uses (IKEv2, preshared key, Phase1: SHA256, AES256, Diffie-Hellman 14, Key-Lifetime 43200, Phase2 Lifetime: 3600s).

I tried turning on and off the Phase2 Auto-negotiate and Auto Key Keepalive options but the tunnel keeps going down. I can't really tell why it goes down because I don't see anything in the logs - maybe I am looking at the wrong place. I can tell that this is only happening during work time, the tunnel is stable outside of working hours.

it_admin_icongroupAnswer

New Member

It is resolved by now! After I tried many things to resolve this, one of these have fixed it:

1. My best guess is I disabled NAT-T on the IPSEC tunnel's network settings as there was also a SNAT configured in Central SNAT and I think it interfered.

2. I removed some of the partner networks IPs of allowed IPs in the settings of another OpenVPN service that did not work. It might have interfered with the traffic resulting in packages being dropped.

kaman

Staff

Hi it_admin_icongroup,

Check if the issue affects one VPN or all configured VPNs.

If all VPN tunnels are affected, check the internet connection and run the following commands to find errors/logs associated with the firewall/interface:

- diagnose debug crashlog read
- diagnose sys top 2 50 (press Ctrl + C to stop after running for 5 iterations)
- get system performance status
- diagnose hardware sysinfo conserve
- diagnose hardware deviceinfo nic <interface-name>
- execute tac report

If only one tunnel is flapping, collect the 'VPN Events' log.

Please refer to the Point7 of the below document:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Troubleshooting-IPsec-Site-to-Site-Tunnel/ta-p/195672

Additionally, we need to collect the IKE debug logs to diagnose the issue.

diagnose vpn ike gateway list (or diagnose vpn ike gateway list name <tunnel-name>)
diagnose vpn ike log-filter dst-addr4 10.10.100.109 ---> 10.10.100.109 is the remote gateway
diagnose debug console timestamp enable
diagnose debug application ike -1
diagnose debug enable

Regards,
Aman

it_admin_icongroupAuthor

New Member

Thanks for your reply, kaman.

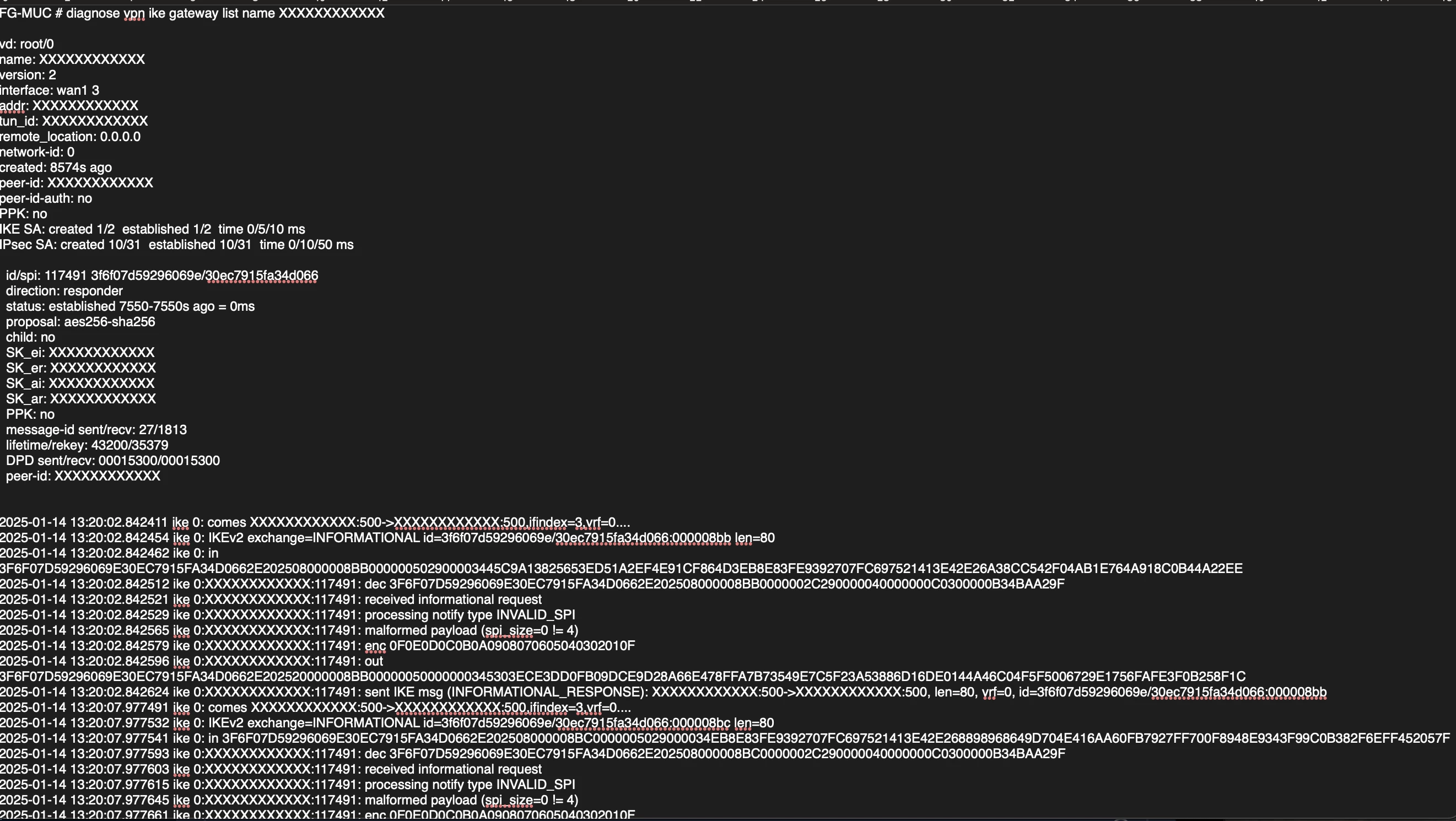

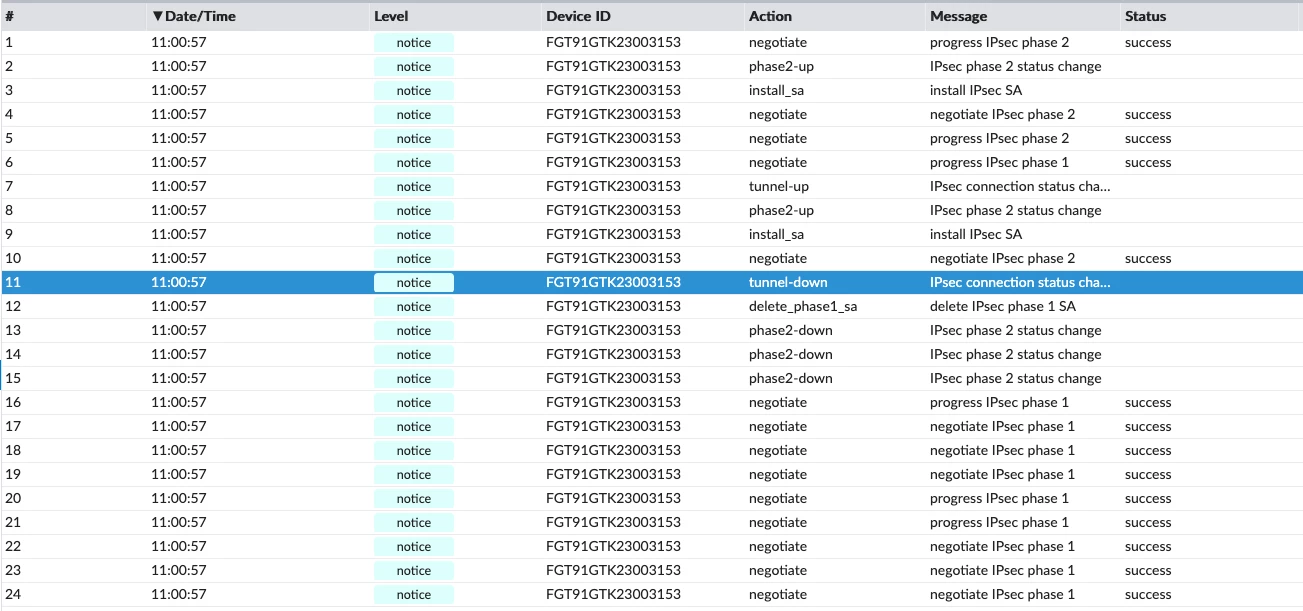

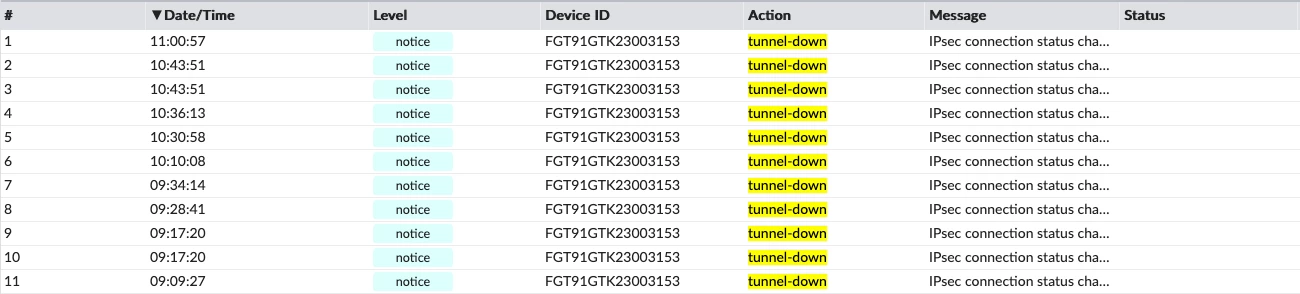

Attached are debug logs and VPN Event logs, one time filtered what happens before and after the tunnel drops. Debug logs says:
eceived informational request
processing notify type INVALID_SPI
malformed payload (spi_size=0 != 4)

Do you know what to make out of that?

Screenshot 2025-01-14 at 13.44.19.png

Screenshot 2025-01-14 at 12.45.12.png

Screenshot 2025-01-14 at 12.46.24.png

kaman

Staff

Hi it_admin_icongroup,

"processing notify type INVALID_SPI"

Here are some of the most common causes of the "processing notify type INVALID_SPI" error:

> Incorrect IPSec configuration: If the IPSec configuration on either the Fortigate device or the IPSec peer is incorrect, the SPI values may not match, causing the error.
> Network connectivity issues: If there are network connectivity issues between the IPSec peers, the IPSec packets may not be able to reach the destination, causing the error.

> Problems with the IPSec peer: If the IPSec peer is experiencing problems, it may not be able to initiate the SA correctly, resulting in the error.

" malformed payload (spi_size=0 != 4)"

> The message indicates that there is a problem with the payload of an IPSec packet.
> The part "spi_size=0 != 4" of the error message refers to the size of the Security Parameter Index (SPI) field in the IPSec packet. The SPI is a value that identifies the security association (SA) for a particular IPSec connection. In IPSec, the SPI is always 4 bytes in size.
> The error message indicates that the SPI size received in an IPSec packet is 0, which is not the expected size of 4 bytes. This means that the IPSec packet is malformed and cannot be processed correctly.

Kindly change the dpd settings to 'on-idle' on the ipsec vpn tunnel phase1 setting:

config vpn ipsec phase1-interface
edit <tunnel-name>
set dpd on-idle
end

Once you have made the change to the configuration, if you have the same issue, run the debug below:

diagnose debug console timestamp enable
diagnose debug application ike -1
diagnose debug enable

Collect the logs.....

diagnose debug dis

If you have found a solution, please like and accept it to make it easily accessible to others.

Regards,
Aman

it_admin_icongroupAuthor

New Member

Hi kaman

I changed the dpd settings to "on-idle" in phase1 and collected another log.

I think there is an SPI mismatch, but our technical contact for the other side's firewall insists that the settings we did (Replay Detection, PFS, auto-negotiate, autokey keep alive) are correct.

Firewall # diagnose debug console timestamp enable

Firewall # diagnose debug application ike -1
Debug messages will be on for 2 minutes.

Firewall # diagnose debug enable

Firewall # 2025-01-15 10:44:33.369387 ike 0:XXXXXXXXX: link is idle 3 XXXXXXXXX->XXXXXXXXX:0 dpd=1 seqno=89310 rr=0
2025-01-15 10:44:33.369427 ike 0:XXXXXXXXX:120308: send IKEv2 DPD probe, seqno 89310
2025-01-15 10:44:33.369438 ike 0:XXXXXXXXX:277381: sending NOTIFY msg
2025-01-15 10:44:33.369446 ike 0:XXXXXXXXX:120308:277381: send informational
2025-01-15 10:44:33.369463 ike 0:XXXXXXXXX:120308: enc 0F0E0D0C0B0A0908070605040302010F
2025-01-15 10:44:33.369514 ike 0:XXXXXXXXX:120308: out 01179DF404DEC7CC500C51F1457569B32E20250000000001000000500000003488FA33DB72D81BE6E9894604579DB7EA14875D9C5E3B930EB210CDBA85EFD
44812AC7EF2E22B44A6627C499988DAA209
2025-01-15 10:44:33.369547 ike 0:XXXXXXXXX:120308: sent IKE msg (INFORMATIONAL): XXXXXXXXX:500->XXXXXXXXX:500, len=80, vrf=0, id=01179df404dec7cc/500c51f1457569b3:00000001
2025-01-15 10:44:36.363061 ike 0:XXXXXXXXX:120308: out 01179DF404DEC7CC500C51F1457569B32E20250000000001000000500000003488FA33DB72D81BE6E9894604579DB7EA14875D9C5E3B930EB210CDBA85EFD
44812AC7EF2E22B44A6627C499988DAA209
2025-01-15 10:44:36.363129 ike 0:XXXXXXXXX:120308: sent IKE msg (RETRANSMIT_INFORMATIONAL): XXXXXXXXX:500->XXXXXXXXX:500, len=80, vrf=0, id=01179df404dec7cc/500c51f1457569
b3:00000001
