IPsec Remote Access VPN behind another FortiGate – possible design or workaround?

  • January 25, 2026
  • 1 reply
  • 162 views

Hello Fortinet Community,

I am working on a lab / design scenario and would like to ask for guidance on whether this setup is technically supported or if there is a recommended workaround.

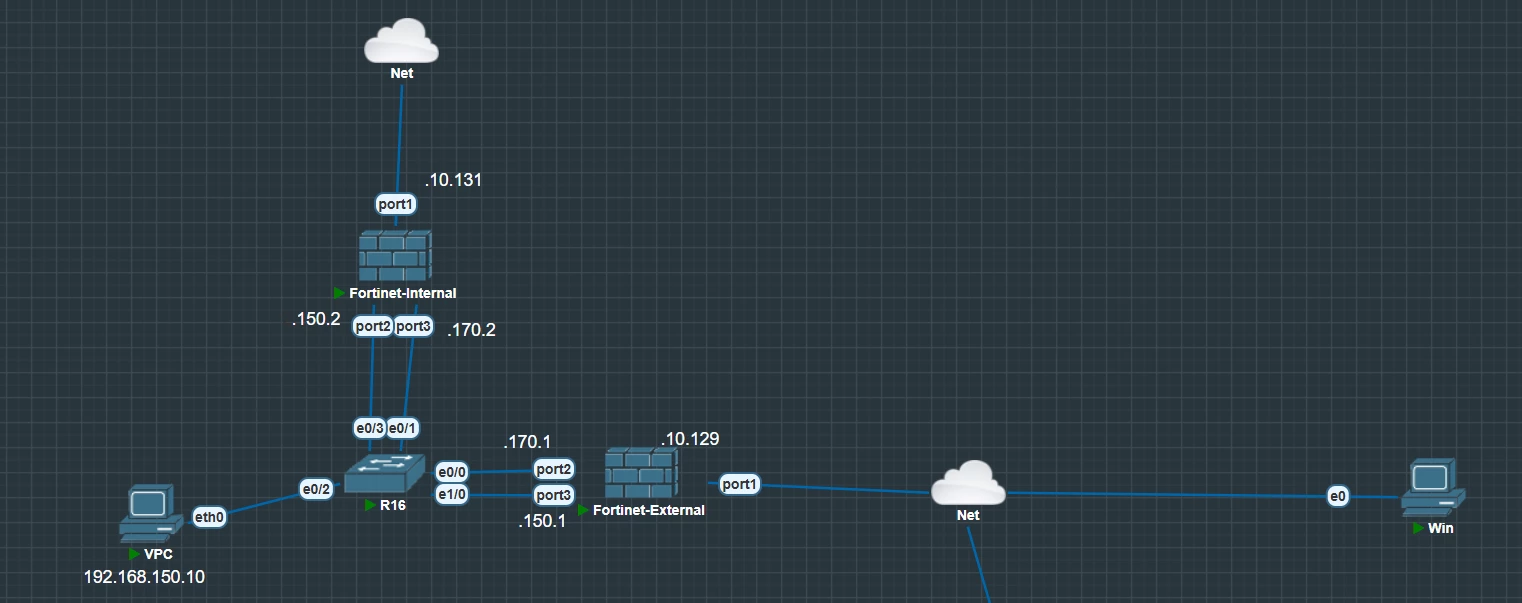

A FortiGate External is deployed at the edge (Internet-facing)

A FortiGate Internal is deployed behind it

The Internal FortiGate is intended to terminate IPsec Remote Access VPN (FortiClient)

The External FortiGate acts only as a border firewall (NAT / routing)
So i wanna ask you whether my topology working normally, if yes, can you guide me how to deploy, thanks very much

1 reply

AEK
SuperUser
AEK
SuperUser
January 25, 2026

Hello

Sure it is technically possible. If you use UDP (default), on ext-fw just forward the incoming UDP-500 and UDP-4500 from WAN to the int-fw (using DNAT or just routing depending on the case), and allow outgoing UDP-500 and UDP-4500 from int-fw to WAN (using SNAT or just routing depending on the case)

But I wonder if it is a more correct design to setup the internal firewall as VPN server or to setup the external one. I guess the external one.
