IPsec Between Fortinet and Mikrotik

Question

Hello, I don't have much experience with this stuff and have a little problem if anyone can help me would be great. i have FortiGate 40F on one side and Mikrotik 2011 on another side. i managed to build IPsec between those 2 and IP sec is UP.

But there is problem i can't have ping or any kind of connection between those 2 networks. On mikrotik i have 192.168.1.0/24 network and on fortinet side i got 192.168.60.0/24 network on Lan ports. If anyone can help me to tell me what should i check to find the problem i haven't much experience with fortigate.

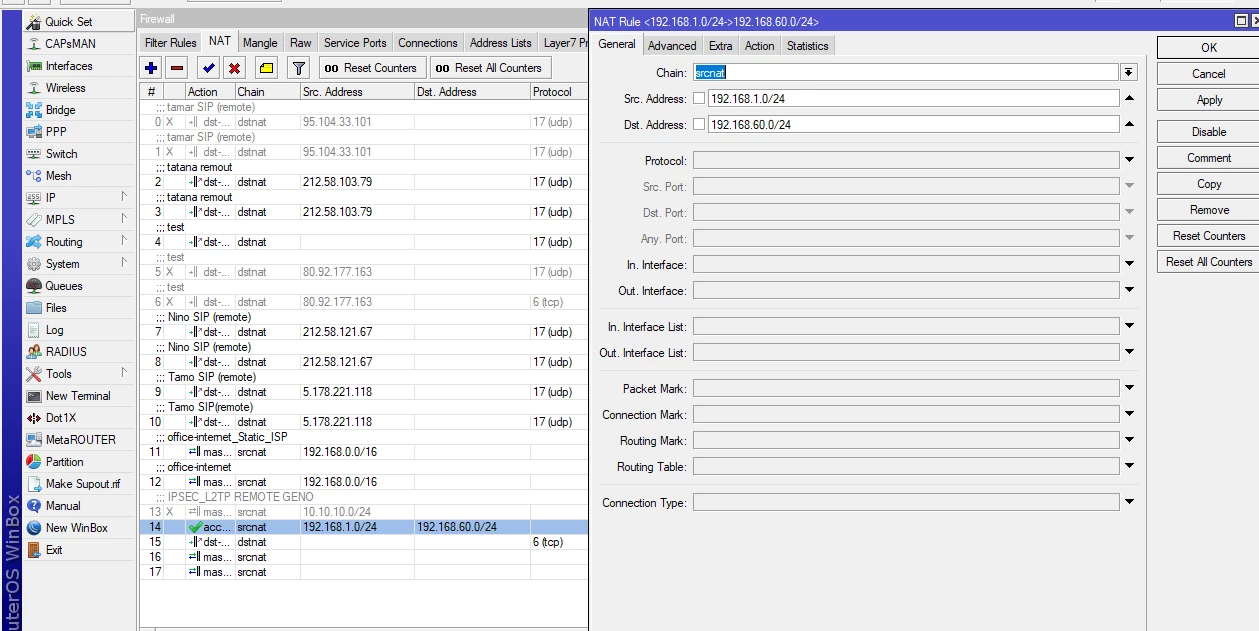

[link]https://ibb.co/0rnHQxN[/link] [link]https://ibb.co/JHwWsW8[/link] [link]https://ibb.co/kHKH6Lp[/link] [link]https://ibb.co/XLPxgD9[/link] [link]https://ibb.co/ysgG7Dy[/link] [link]https://ibb.co/L8vtmf7[/link] [link]https://ibb.co/q59nccM[/link]

Toshi_Esumi · Answer

I don't see any particular problem on the 40F config, although I would remove the second static route for 192.168/16. But it shouldn't break anything even if it's there.

I would suspect the other side, but first sniff packets on the FGT while you ping from FGT's local toward the other side. You need to disable asic offloading (set auto-asic-offload diable) on both policies in CLI to see all packets. Don't forget to reenable it after you're done.
