Internal SFP Check fail (FORTIMAIL)

  • June 14, 2022
  • 2 replies
  • 2008 views

Dear Community,



We have a Fortimail VM in our Network and activated SFP & DKIM.

So far so good, from external it works fine but internal we figured out some troubles.

Explanation:

Computer in Our Network with Powershell



send-mailmessage -to receiver@contoso.com -subject TestFromlab -from robert@microsoft.com -smtpserver mail.constoso.com

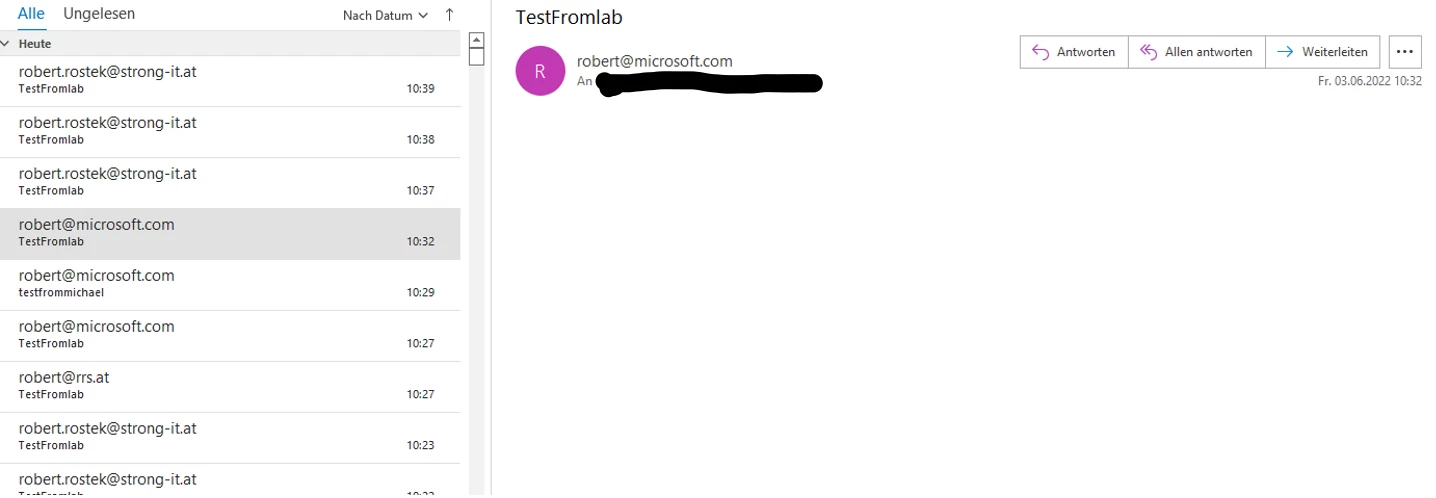

screenshot Outlook

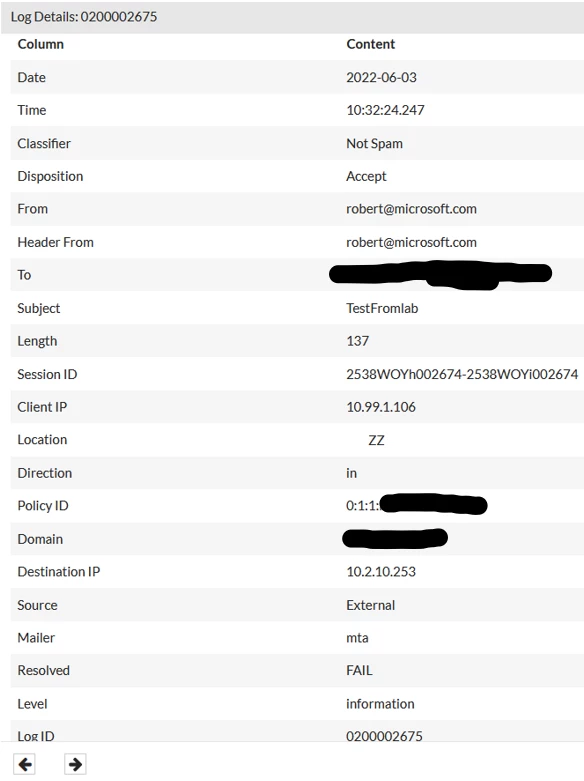

screenshot Fortimail Log




The Fortimail Version: v6.4.6(GA), build459, 2021.12.09



Any Tipps where exactly the option is?

I controlled all Options dont found a solution



sry for my English

greetings Michael



2 replies

A
Anonymous_User
Contributor
June 16, 2022
Hello @admin_kshb ,

Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.

Thanks,
gmichailidis
Staff
gmichailidis
Staff
June 17, 2022

Dear @admin_kshb,



As you mentioned, the mail is sent from a computer in your network and the client IP in the logs is "10.99.1.106".



- In this case, the SPF will be skipped since the email is coming from a private IP address.
No SPF check is performed for direct connections from RFC 1918 private IP addresses.



Source:
Managing antispam profiles - https://docs.fortinet.com/document/fortimail/7.2.0/administration-guide/352990/configuring-antispam-profiles-and-antispam-action-profiles#profile_2424801504_1844128



- Regarding the DKIM check, this should be performed if the message is signed with a valid signature.
You can verify if a received email is really signed by checking its header, where you will see a header similar to: "DKIM-Signature: v=1; a=rsa-sha256; d=example.com; [...]"



Sincerely,
Georgios Michailidis
