Industrial category is missing

Forum|Forum|7 years ago
November 26, 2018
7 replies
17322 views

Hello I have a 60E and i recently have updated to fortiOS 5.6.6 from 5.4. Before the update i could find the industrial category in the app control section to block specific industrial traffic but in fortiOS5.6 this category is missing and i cant configure the fortigate to block this kind of traffic.

The fortinet documentation says that industrial protocols are enabled to be identified (https://fortiguard.com/appcontrol?category=Industrial&deepapp=&page=1) Thanks

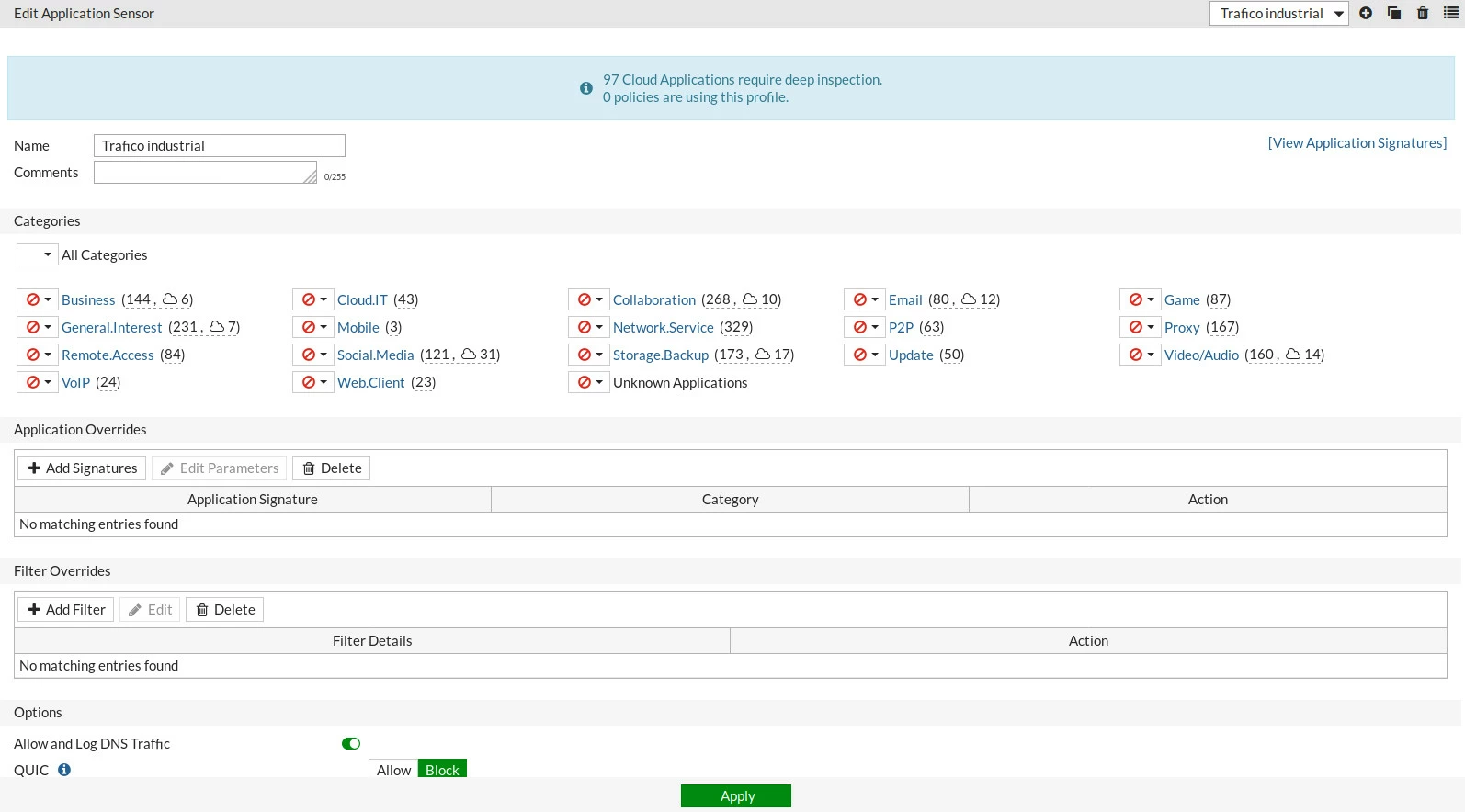

Captura de pantall___11-26 10-54-06.jpg

5.6

Best answer by jeskudero

Hello

It seems like Fortinet has exclude the industrial signatures from the UTM license group, you hava to purchase those signatures apart of the UTM license or you have to purchase the enterprise licecense. That was my local seller response.

anyway, thanks for your responses!

Dave_Hall

New Member

Not familiar with 5.6, so it may be possible that the category is still there, though renamed or recategorized. You could always check via the CLI, just perform something similar to:

config application list edit "default" config entries edit 1 set category ?

At ?, the fgt should output something similar to:

ID Select Category ID 1 IM 2 P2P 3 VoIP 5 Video/Audio 6 Proxy 7 Remote.Access 8 Game 12 General.Interest 15 Network.Service 17 Update 19 Botnet 21 Email 22 Storage.Backup 23 Social.Media 24 File.Sharing 25 Web.Others 26 Industrial 27 Special 28 Collaboration 29 Business 30 Cloud.IT 31 Mobile

bommi

New Member

Hi,

if you want to use the industrial services signatures you need to do this:

config ips global

set exclude-signatures none

end

Regards

bommi

jeskuderoAuthor

New Member

Hi

bommi, i have already tried that solution but it doesnt work. (https://forum.fortinet.com/tm.aspx?m=169179)

Dave hall, i have done what you said and it shows me the list like you put there. I have selected the industrial category but then it doesnt show me in the GUI, and I cant find the industrial signatures (modbus write and read for example).

I have tried to reboot several times but nothing happens, this is how i have the config now:

FGT60EXXXX # config vdom FGT60EXXXX (vdom) # edit root current vf=root:0 FGT60EXXXX (root) # config application list FGT60EXXXX (list) # edit Trafico\ industrial FGT60EXXXX (Trafico industrial) # config entries FGT60EXXXX (entries) # show config entries edit 1 set category 26 set application 25890 25900 44542 next edit 2 set category 2 3 5 6 7 8 12 15 17 21 22 23 25 26 28 29 30 31 next end
