Philippe
Philippe
New Member
May 5, 2020
Question

INCOMING CONNECTION, VIP ,IPSEC problem

  • May 5, 2020
  • 1 reply
  • 2297 views
We’re having a problem with our Incoming connections on the fortigate. So we’ve a couple of VIP’s and ipsec tunnels Suddenly https/ssh/.... traffic to a server with a vip and port forwarding the traffic drops. Also mgmt actions on the web gui of the fortigate using ipsec tunnel suddenly doesn’t work anymore. We’ve openend a ticket 4weeks ago with fortinet What we see is “”no session match” in the debug flow. They think it’s the npu unit of the fortigate with a bug. I downgrade in a couple steps from 6.2.3 to 6.0.5 without succes. So we think it’s a worng setting ... someone that can help us?

    1 reply

    Dave_Hall
    Dave_Hall
    New Member
    May 6, 2020

    Sounds like the regular administration access ports may need to be changed if they conflict or interference with any of the ports on your VIP/IPSec tunnels.



    From the CLI, you can check/set the management port access as follows:



    config system global   set admin-idle-timeout <integer>   set port-http <integer>   set port-https <integer>   set port-ssh <integer>   set port-telnet <integer> end As for the interface admin access setting (mgmt as an example):



    config system interface     edit "mgmt"         set allowaccess ping https ssh http fgfm     next end

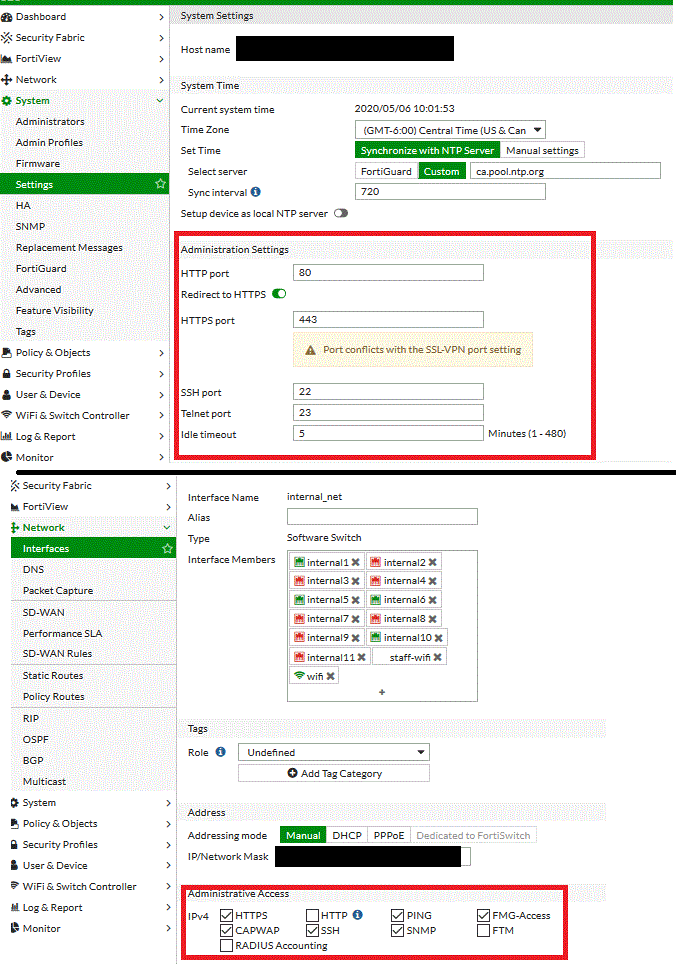

    And from the GUI:
